(4) Remote RUN/STOP methods
Remote RUN/STOP can be executed by either of two methods: "Using user program"
or "Using development environment (personal computer)".
(a) Using user program
Execute the bus interface function (QBF_Control function) from the user program
to perform remote RUN/STOP.
The following function is used for remote RUN/STOP.
Remark
Refer to Chapter 10 for details of the bus interface functions.
(b) Using development environment (personal computer)
On the <<Online operation>> tab of the C Controller setting utility, select "RUN" or
"STOP" for "Remote operation" and click the button.
Table4.12 Function used for remote RUN/STOP
Function name Description
QBF_Control
Controls the remote RUN/STOP/PAUSE of
the C Controller module.

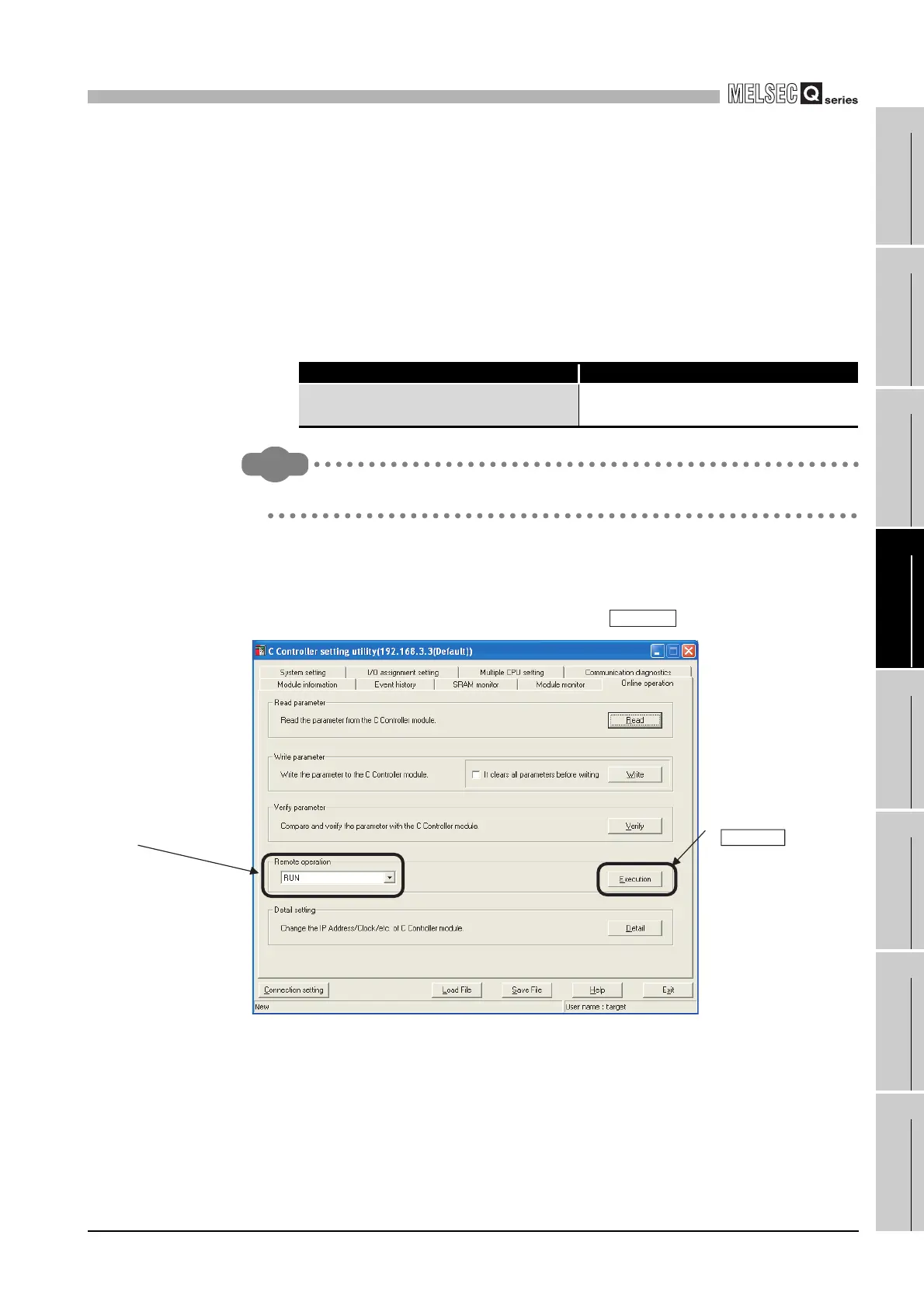

Figure 4.38 Remote RUN/STOP from development environment (personal computer)
Execution
2) Click
Execution button.
1) Set to "RUN" or "STOP".
