(2) All Stations view screen
Displays the states of other stations.
* 1 The "Each station information" data is based on the time when this screen is opened.
The "Each station information" data is not updated even if the communication status changes
after opening the screen.
(a) Details of each station information
The following indicates the details of each station information.

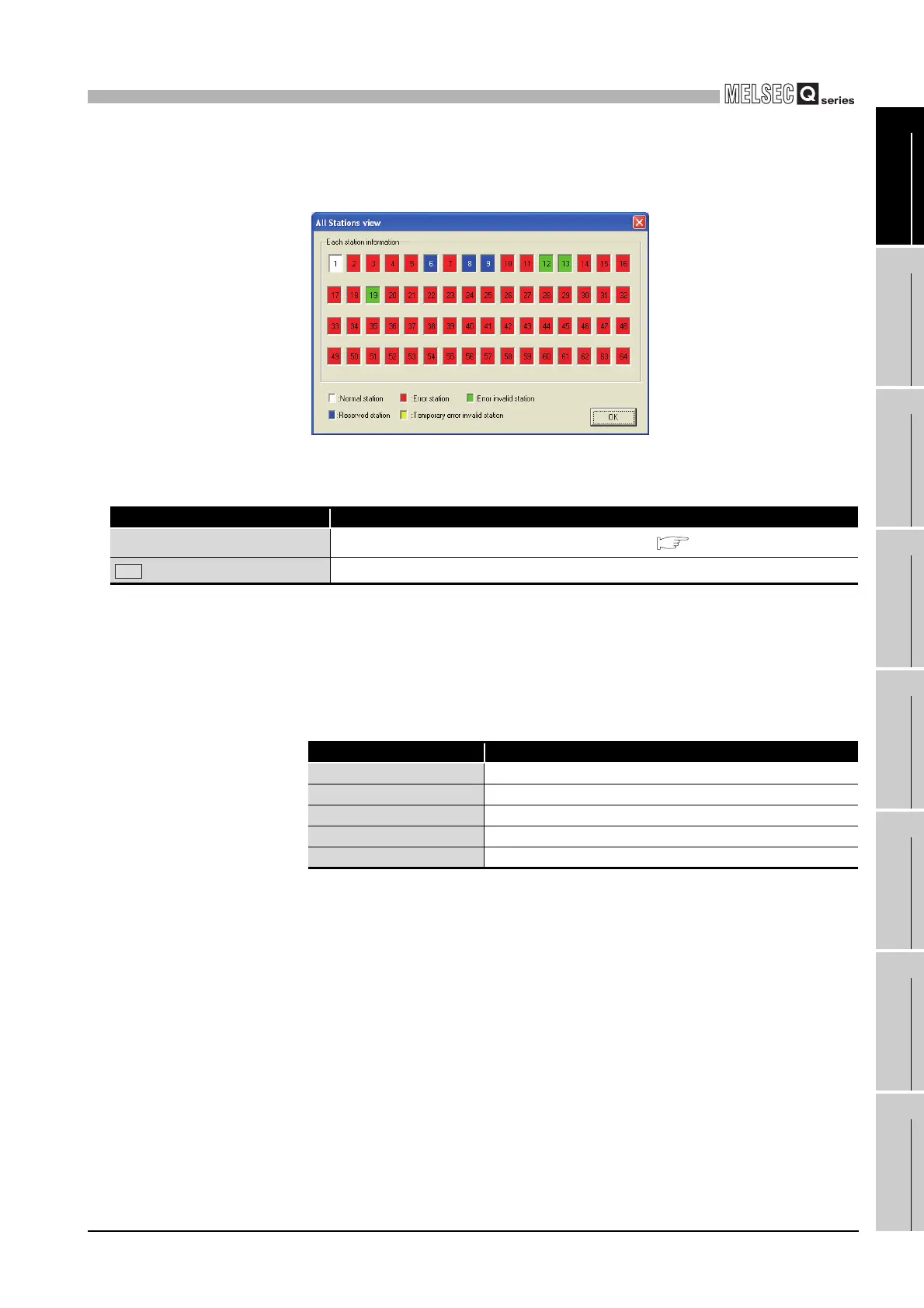

Figure 9.55 All Stations view screen
Table9.46 All Stations view screen
Item Description
Each station information
*1
Displays the communication status of each station. ( This section (2)(a))
button
Closes the "All Stations view" screen.
Table9.47 Details of each station information
Display color Description
White Normal station
Red Error station
Green Error invalid station
Blue Reserved station
Yellow Temporary error invalid station
OK
