6.5.4 Inserting and labeling electronic modules 2 DO Relay UC60V/2A
Mount and label electronic modules 2 DO Relay UC60V/2A

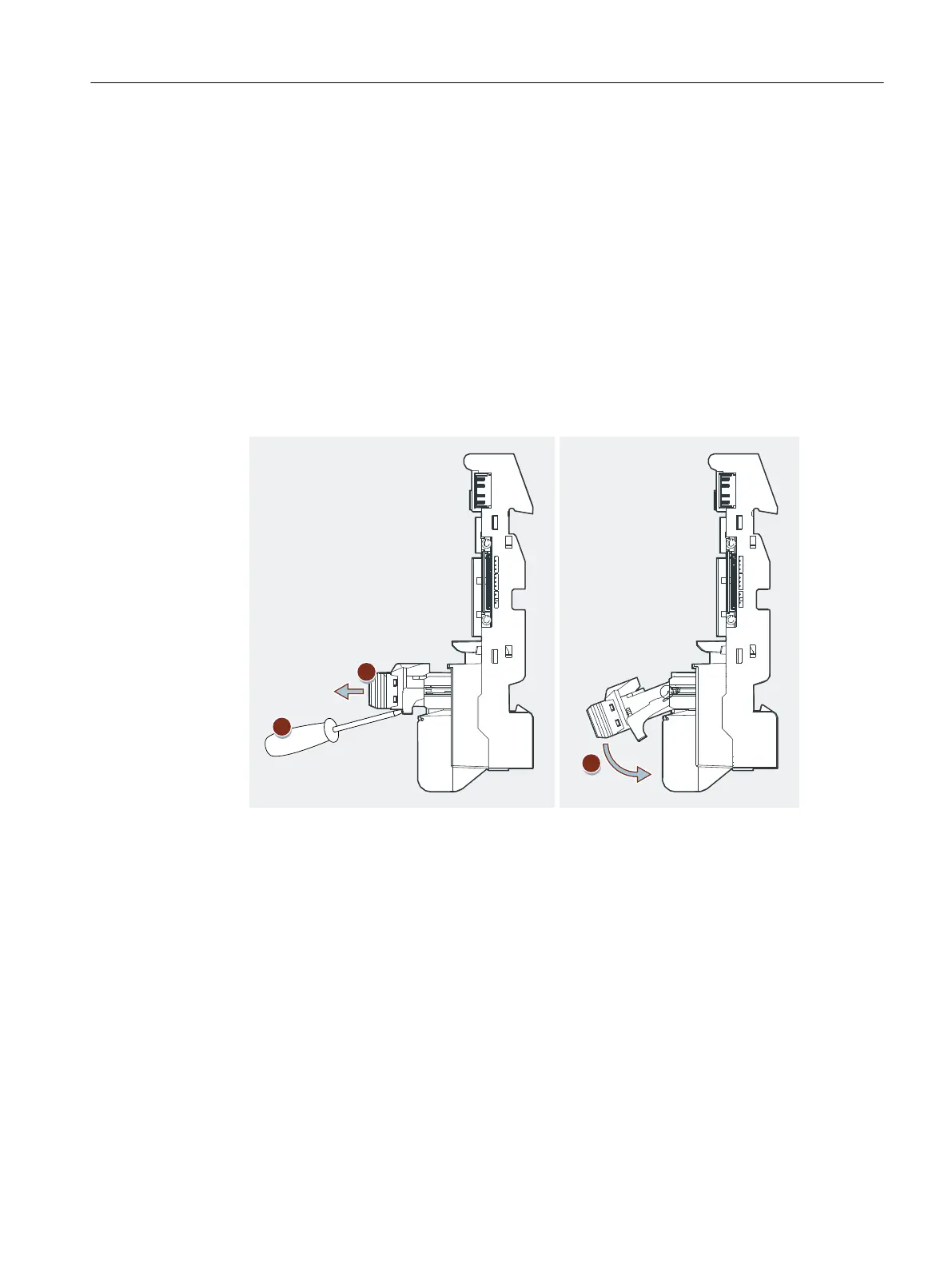

1. Pull out the Ex d disconnecting plug as far as it will go.
2. Use a screwdriver to loosen the locking lever from the latch and swivel the lever down.
3. Pull out the Ex d disconnecting plug further forward as far as it will go, it will fold down in this
position.
4. Hang the top of electronic module 2 DO Relay UC60V/2A in the bearing position of the
terminal module.
Wiring
6.5 Inserting and labeling the power supply, interface module, and electronic modules
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 147
