Digital electronic modules
13
13.1 Digital electronics module 8 DI NAMUR
Article number
6ES7131-7RF00-0AB0
Properties
• Digital electronics module with 8 inputs
• Sensor supply DC 8 V
• Suitable for NAMUR sensors and both closed and open mechanical contacts
• Counting and frequency measurement

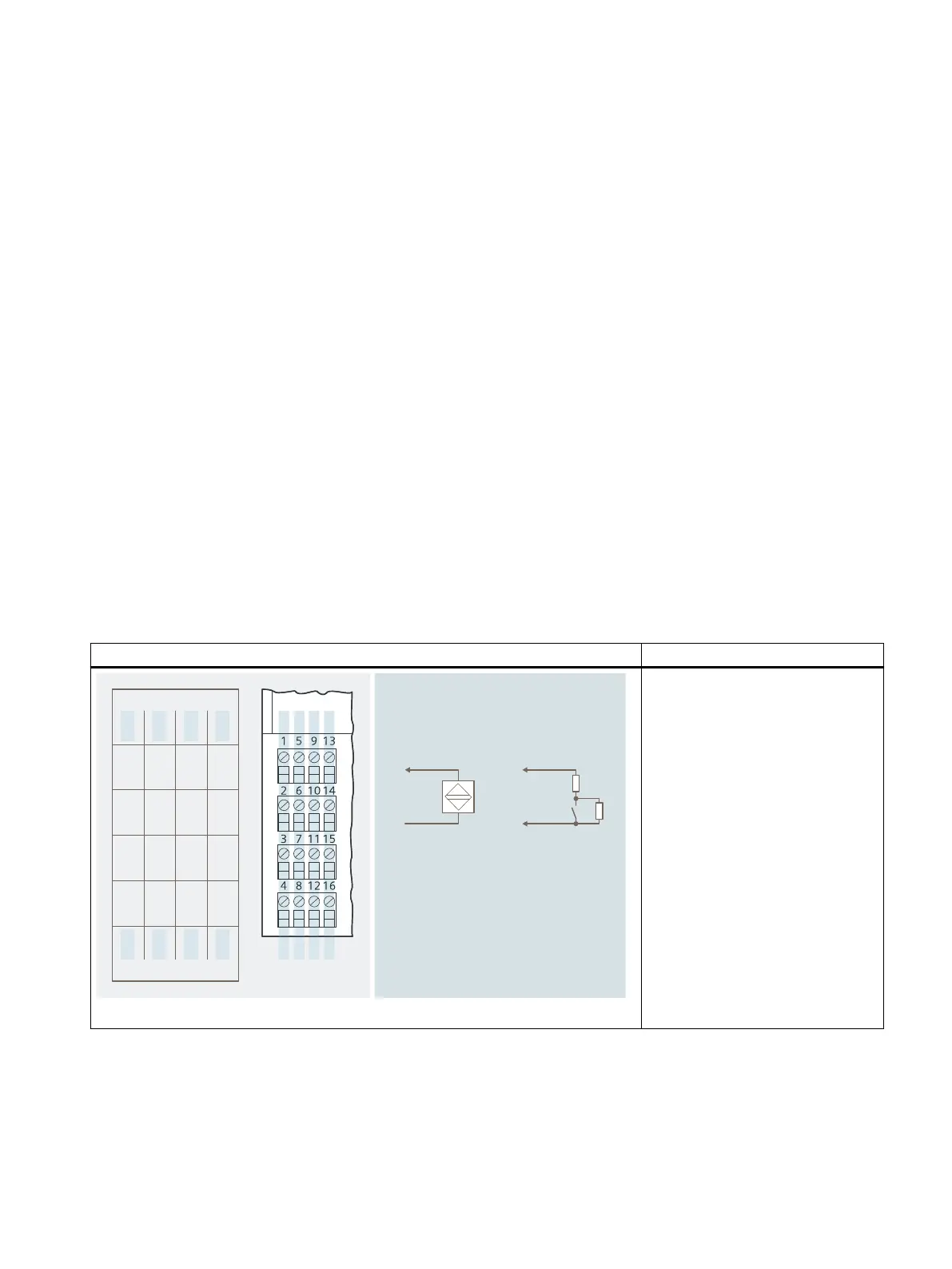

Pin assignment NAMUR encoders or encoders according to DIN 19234
Table 13-1 Pin assignment NAMUR encoders or encoders according to DIN 19234
Pin assignment and view Remarks
$POOFDUJPOFYBNQMFGPS
DIBOOFM
PS
$IBOOFM
$IBOOFM
%*
%*
%*
%*
%*
%*
%*%*
74747474
74747474
L
L
Sensor 1:
Channel 0: Terminals 1 and 2
Sensor 2:
Channel 1: Terminals 5 and 6
Sensor 3:
Channel 2: Terminals 9 and 10
Sensor 4:
Channel 3: Terminals 13 and 14
Sensor 5:
Channel 4: Terminals 3 and 4
Sensor 6:
Channel 5: Terminals 7 and 8
Sensor 7:
Channel 6: Terminals 11 and 12
Sensor 8:
Channel 7: Terminals 15 and 16
DI: Input signal
V
S
: Sensor supply
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 295
