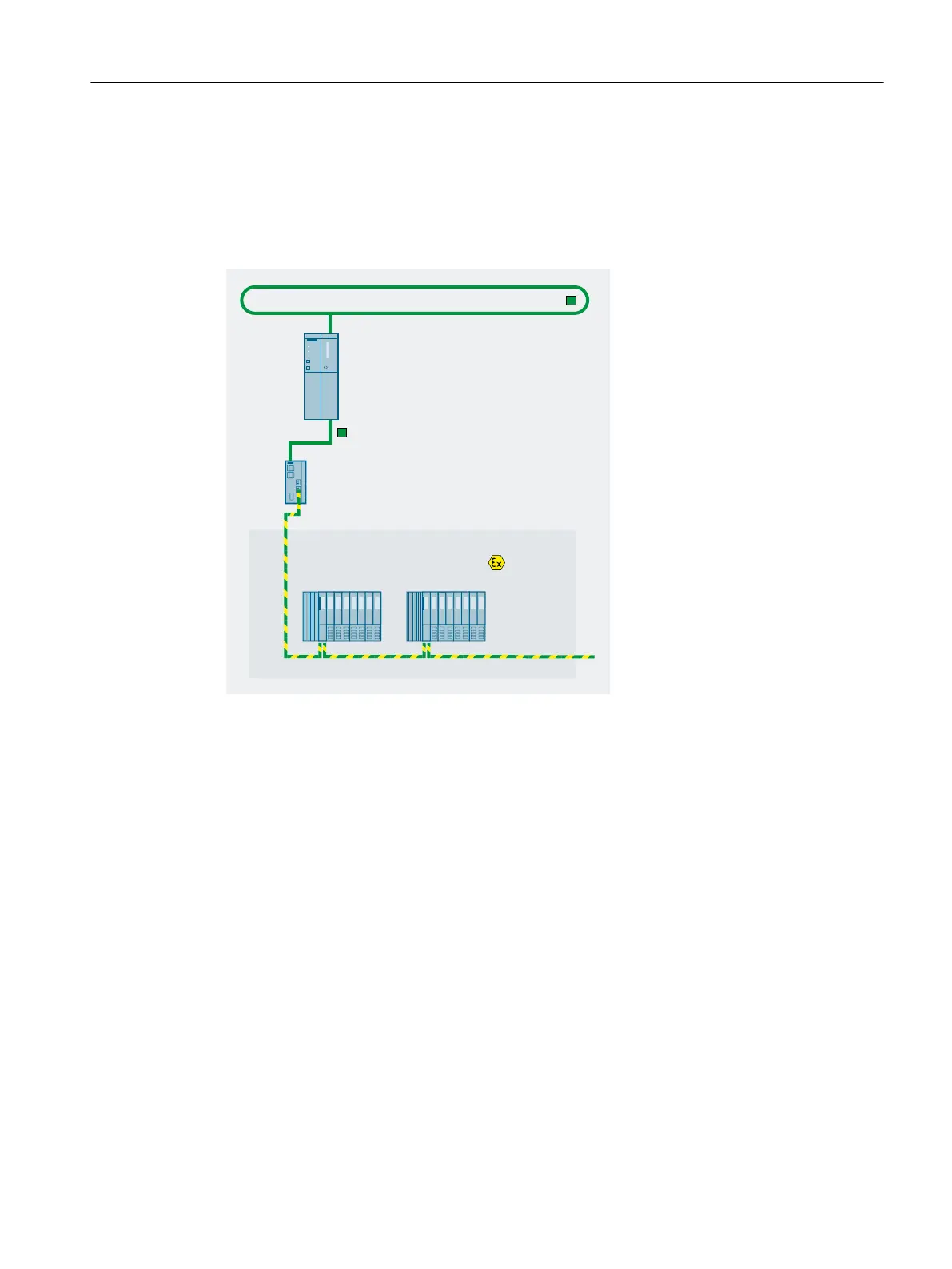

1.3.1 Example con󹪝guration with a single CPU
Example
The connection of the I/O device via media redundancy is possible.
352),1(7VXEQHW
0HGLDFRQYHUWHUILEHURSWLFFDEOHLQWHUIDFH/DVHU
&ODVVIRUH[DPSOH352),1(7VZLWFKIRU
FRQQHFWLRQYLD5-FRQQHFWRUDQG/&FRQQHFWRU
3ODQWQHWZRUN
)LEHURSWLFFDEOH
ZLWK
+D]DUGRXVDUHD
=RQH
$6
,031
[
(7L63
Automation system CPU 410-5H in 1oo1 mode
Plant bus 1 PN/IO subnet on an internal PN/IO interface of the IO controller (e.g CPU
410-5H: Terminal X5)
Con󹪝gurations Note:
The con󹪝gurations are not suitable for time stamping with an accuracy of 1 ms.
Fieldbus 1 PN/IO subnet on an internal PN/IO interface of the IO controller (e.g CPU
410-5H: Terminal X8)
Distributed I/O IO devices with ET 200iSP with one interface module in 1oo1 mode
System planning
1.3 ET 200iSP station on PROFINET IO
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 19
