Siemens SIMATIC ET 200iSP User Manual

U
"
U
&
U
;
UݳUݴUݵ
t
Q
Response time
t
Z
Cycle time corresponds to the processing time of the module and the conversion time of the
channel
t
I
Settling time
t
1
new digital output value is present
t
2
Output value applied and converted
t
3
speci󹪝ed output value reached

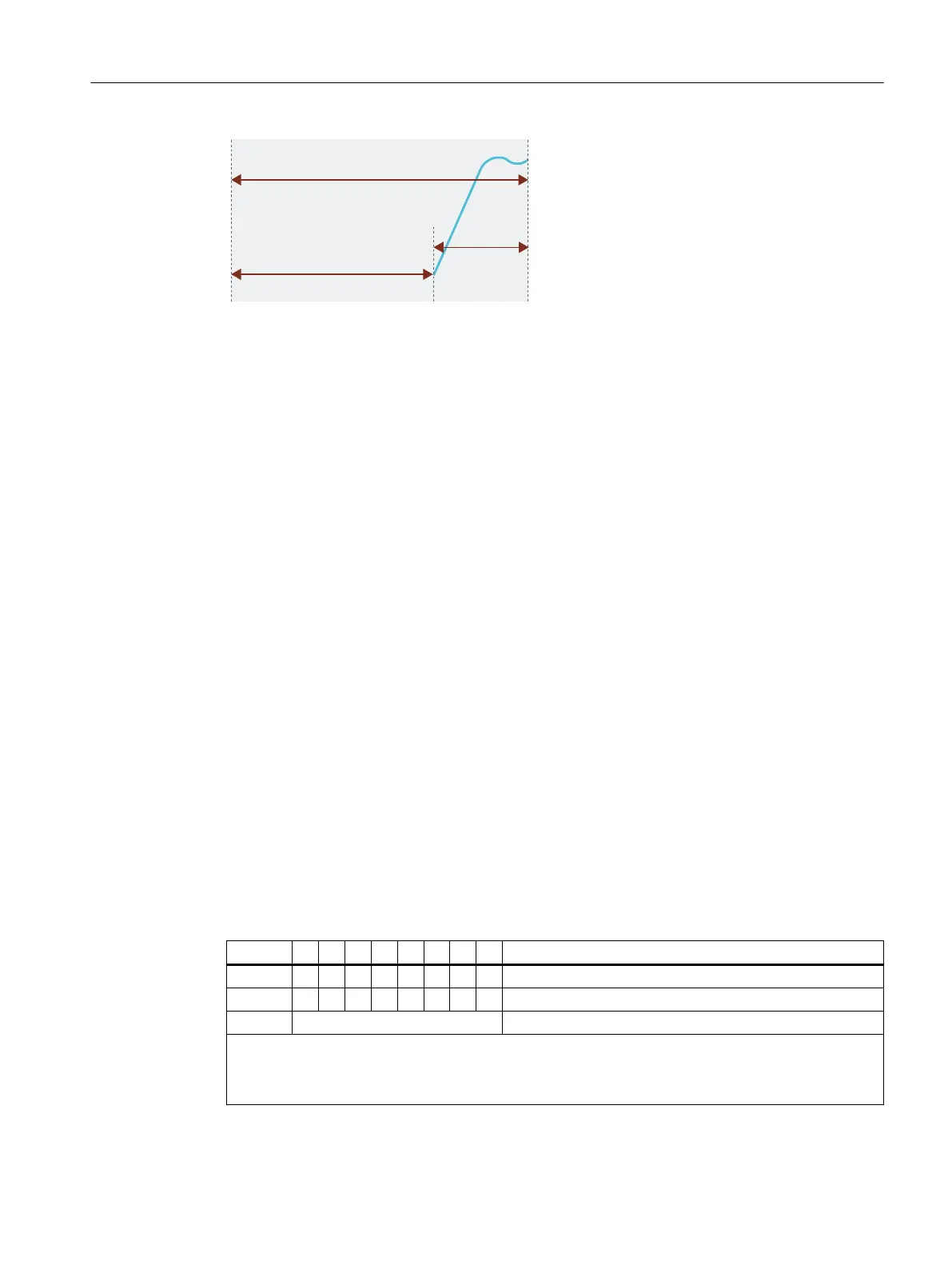

Figure A-10 Response time of an analog output channel
A.4 Address space of the inputs and outputs
A.4.1 Digital input module
8 DI NAMUR
The address range of the process image inputs and outputs (PII) that is occupied is dependent
on the con󹪝guration, that is, on the selection of the corresponding entry in the con󹪝guring
software.
8 DI NAMUR mit con󹪝guration "8 DI NAMUR"
Assignment of the process image inputs (PII)
Table A-13 PII for con󹪝guration "8 DI NAMUR" (S7 format)
PII 7 6 5 4 3 2 1 0 Description
IB x 7 6 5 4 3 2 1 0 Channels 0 to 7 of the input signal
IB x+1 7 6 5 4 3 2 1 0
IB x+2 Not occupied
Value status for channels 0 to 7:
• 1
B
: Input signal is valid
• 0
B
: Input signal is invalid
Assignment of the process image outputs (PIQ)
Appendix
A.4 Address space of the inputs and outputs
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 435
