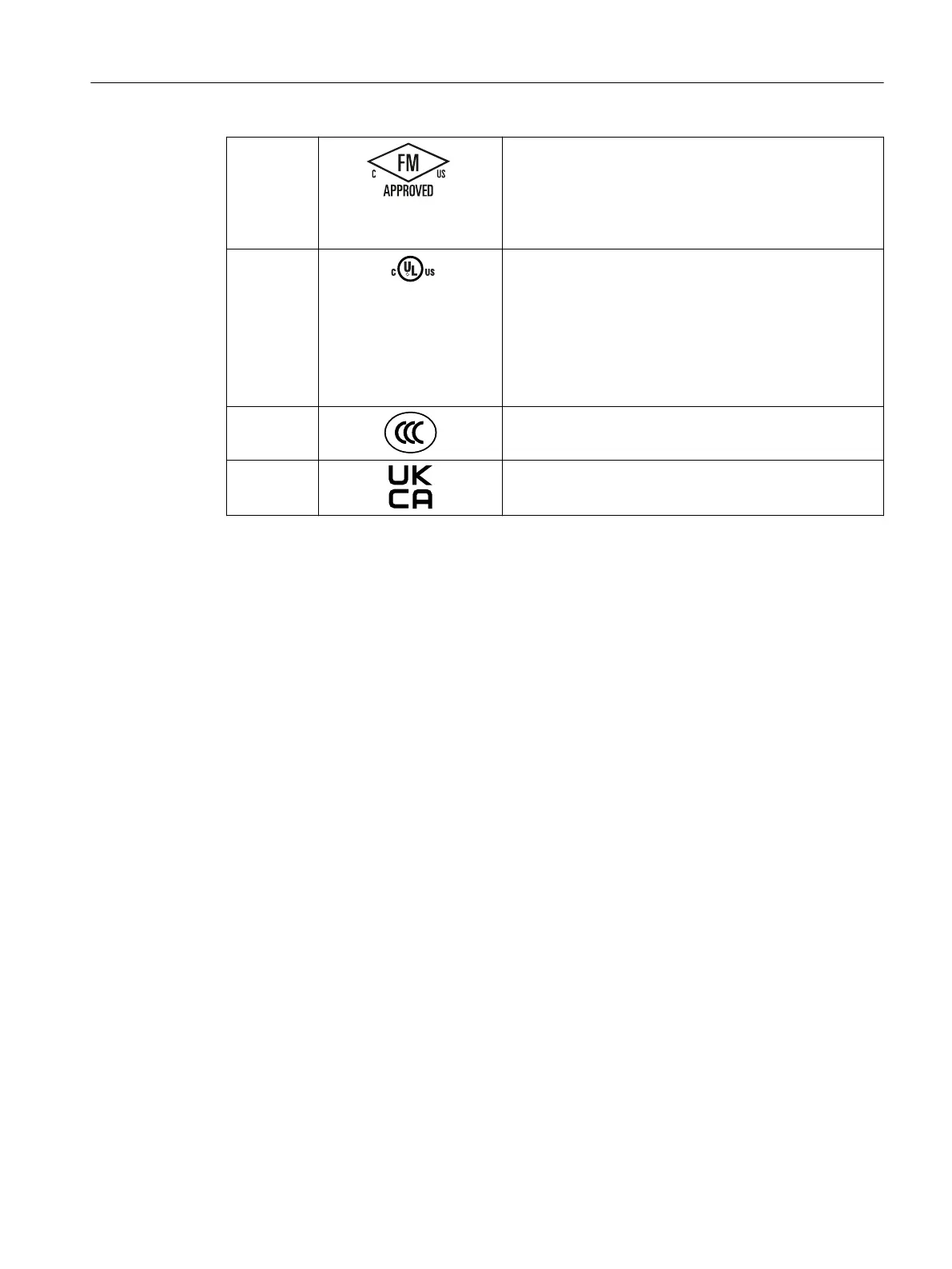

FM Class I, Zone 1, AEx ib [ia] IIC T4;
Ex ib [ia] IIC T4
NI, Class I, DIV. 2, GP. A,B,C,D T4
AIS, Class I, DIV. 1, GP. A,B,C,D
Class II, III, GP. E,F,G
cULus
Process Cont. Eq. for Use in HAZ.LOC.
Class I, Zone 1, AEx ib [ia] IIC T4
Ex ib [ia] IIC T4
ASSOC APP. CL. I, DIV.2, GP. A,B,C,D
PROVIDING INT. SAFE CIRCUITS FOR
CL. I, GP. A,B,C,D;
CL. II, III, GP. E,F,G
CCC Ex ib [ia Ga] IIC T4 Gb
Ex ib [iaD] IIC T4 Gb
UKCA DEKRA 21UKEX0088
14.5 Analog electronics module 4 AI TC
Article number
6ES7134-7SD00-0AB0
Properties
• 4 inputs for thermocouple or thermoelectrical voltage
• Input ranges
– Thermo voltage measurement: ± 80 mV
– Thermocouples: Type B, E, J, K, L, N, R, S, T, U
– Functionally galvanically isolated, permissible common mode voltage 6.5 V DC, 30 V AC
SS
• Linearization of the sensor characteristic curves
• Resolution of 15 bits + sign
• Internal compensation of the reference junction temperature by means of TC sensor module
(temperature sensor). The TC sensor module is included in the scope of delivery of the 4 AI
TC. This is mounted on the terminal module of the 4 AI TC.
Analog electronic modules
14.5 Analog electronics module 4 AI TC
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 363
