Siemens SIMATIC ET 200iSP User Manual

13.3 Digital electronic module 2 DO Relay UC60V/2A
Article number
6ES7132-7HB00-0AB0
Properties
• Digital electronics module with two relay outputs
• For the PROFINET IO con󹪝guration: Only pluggable on the termination module TM-RM/RM,
i.e. in the normal con󹪝guration of the ET 200iSP, thus usable from slot 3 and in the redundant
con󹪝guration from slot 2. This con󹪝guration is checked by STEP 7.
• For the PROFIBUS DP con󹪝guration: Only pluggable on the terminal module TM-RM/RM, i.e.
in the normal con󹪝guration of the ET 200iSP, thus usable from slot 5 and in the redundant
con󹪝guration from slot 4. This con󹪝guration is checked by STEP 7.
• Output current 2 A per output
• Substitute value
• Suitable for solenoid valves, DC contactors, and indicator lights
• Isolated from the supply voltage
• NO contact
Note
If you connect an extra-low voltage (SELV/PELV) to one channel of the relay module, then you
may also only use an extra-low voltage (SELV/PELV) on the other channel.

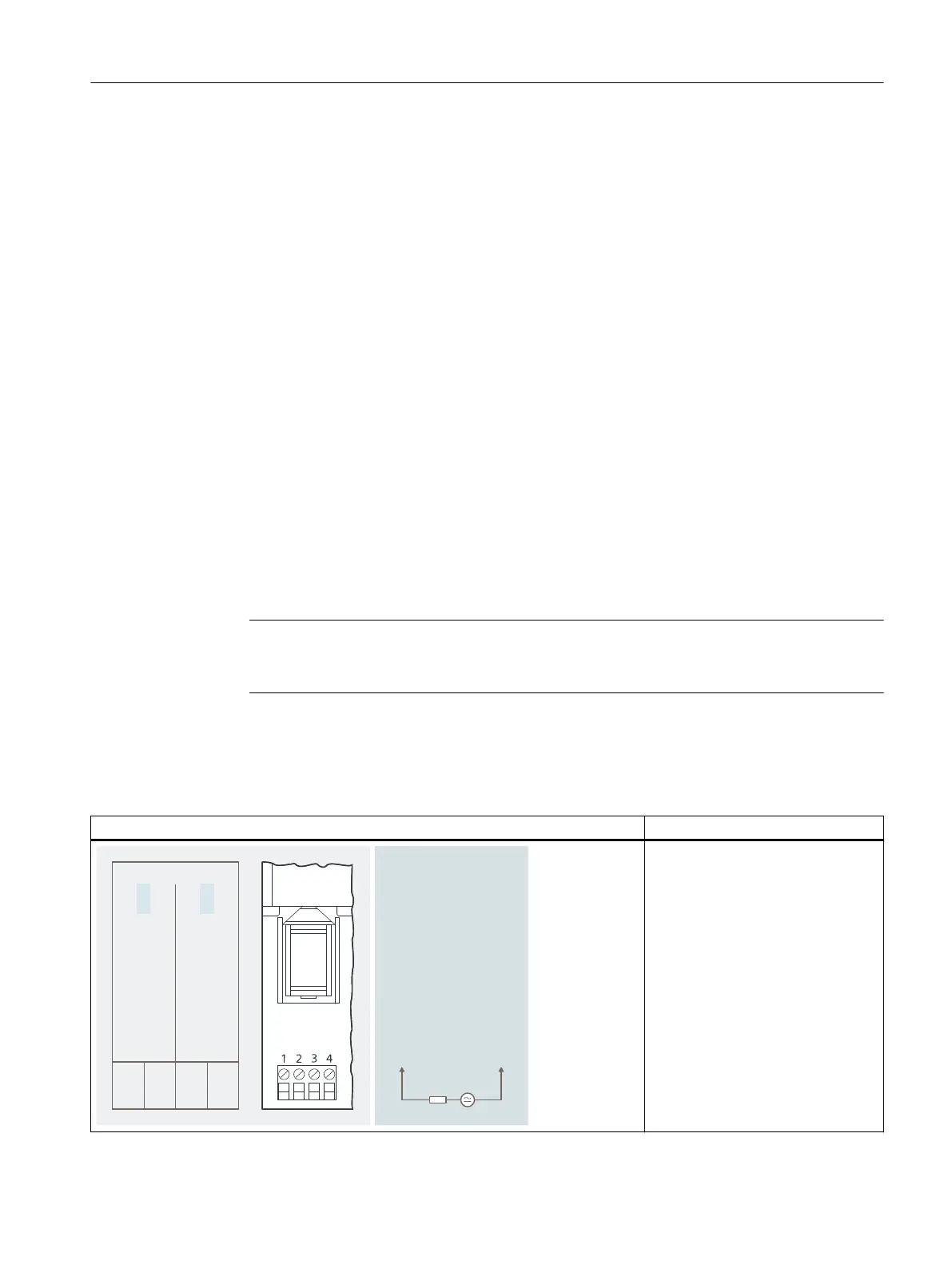

Pin assignment of actuators
Table 13-11 Pin assignment of actuators
Pin assignment and view Remarks
$POOFDUJPOFYBNQMF
$IBOOFM

$ݲ4ݲ$ݳ4ݳ

Actuator terminals:
Channel 0: Terminals 1 and 2
Channel 1: Terminals 3 and 4
C
n
: Common 0, 1
NO
n
: NO contact 0, 1
Digital electronic modules
13.3 Digital electronic module 2 DO Relay UC60V/2A
ET 200iSP
Operating Instructions, 11/2022, A5E00247483-AK 329
