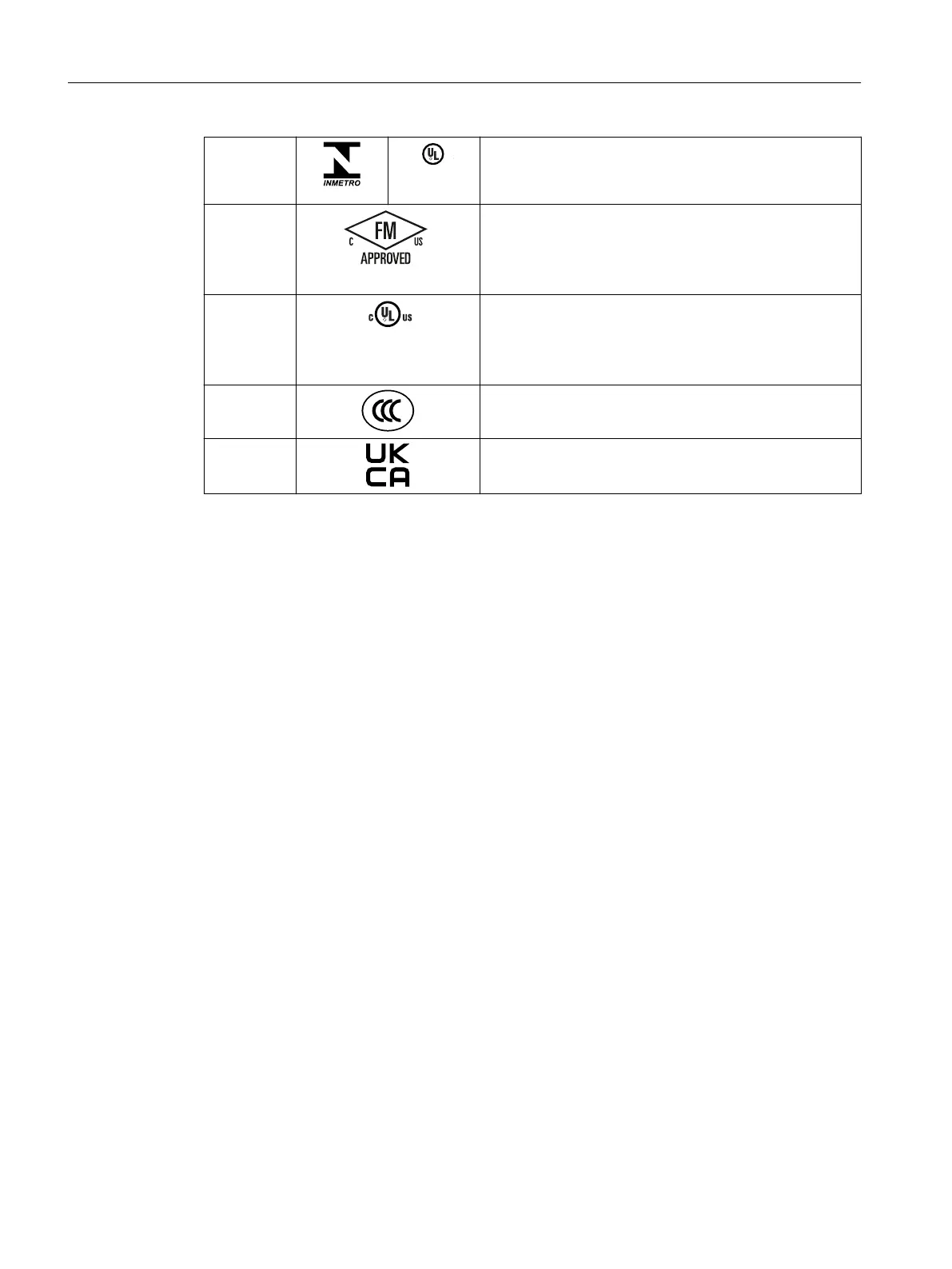

INMETRO
BR-Ex eb [ia Ga/ib] IIC T4 Gb
BR-Ex eb [ia IIIC Da] IIC T4 Gb
BR-Ex eb [ia/ib] Mb
FM Class I, Zone 1, AEx eb [ib/ia] IIC T4;
Ex eb [ib/ia] IIC T4
Class I, DIV. 2, GP A,B,C,D T4
Class II, III, GP E,F,G
cULus
Process Cont. Eq. for Use in HAZ.LOC.
Class I, Zone 1, AEx eb [ib/ia] IIC T4;
Ex eb [ib/ia] IIC T4
Class I, DIV. 2, GP. A,B,C,D T4
CCC Ex e [ia Ga/ib] IIC T4 Gb
Ex e [iaD] IIC T4 Gb
UKCA DEKRA 21UKEX0032
10.3 Terminal modules TM-IM/EM 60S and TM-IM/EM 60C
Article number
6ES7193-7AA00-0AA0 (screw terminal)
6ES7193-7AA10-0AA0 (spring terminal)
6ES7193-7AA20-0AA0 (black terminal)
Properties
• Terminal module for an interface module (left-hand side) and an electronic module (right-
hand side)
for interface modules:
– IM 152-1PN
6ES7152-1BA00-0AB0
– IM 152-1DP
6ES7152-1AA00-0AB0
• PROFIBUS RS 485-IS connection via 9-pole Sub D socket
• Connection of actuators and sensors by means of screw terminals for TM-IM/EM 60S
• Connection of actuators and sensors by means of spring terminals for TM-IM/EM 60C
Terminal modules
10.3 Terminal modules TM-IM/EM 60S and TM-IM/EM 60C
ET 200iSP
254 Operating Instructions, 11/2022, A5E00247483-AK
