9. Depending on the required network connection of the ET 200iSP station:
– Connection to a PROFINET IO system with interface module IM 152-1PN:
In the window, look for the row with the label "PN-IO" and highlight it. Right-click on the
row and select Object Properties from the menu. The "Properties-PROFINET IO" dialog
opens. Click the Properties button and in the next dialog, click New. A new PROFINET IO
system is now created. Con󹪝rm by clicking OK three times in succession.
– Connection to a PROFIBUS DP master system with interface module IM 152-1DP:
In the window, look for the row with the label DP and highlight it. Right-click on the row
and select Object Properties from the menu. The "Properties-PROFIBUS DP" dialog opens.
Click the Properties button and in the next dialog, click New. A new DP subnet with 1.5
Mbps is now created. Con󹪝rm by clicking OK three times in succession.
10.You can save the changes in the main menu with Station > Save and compile.

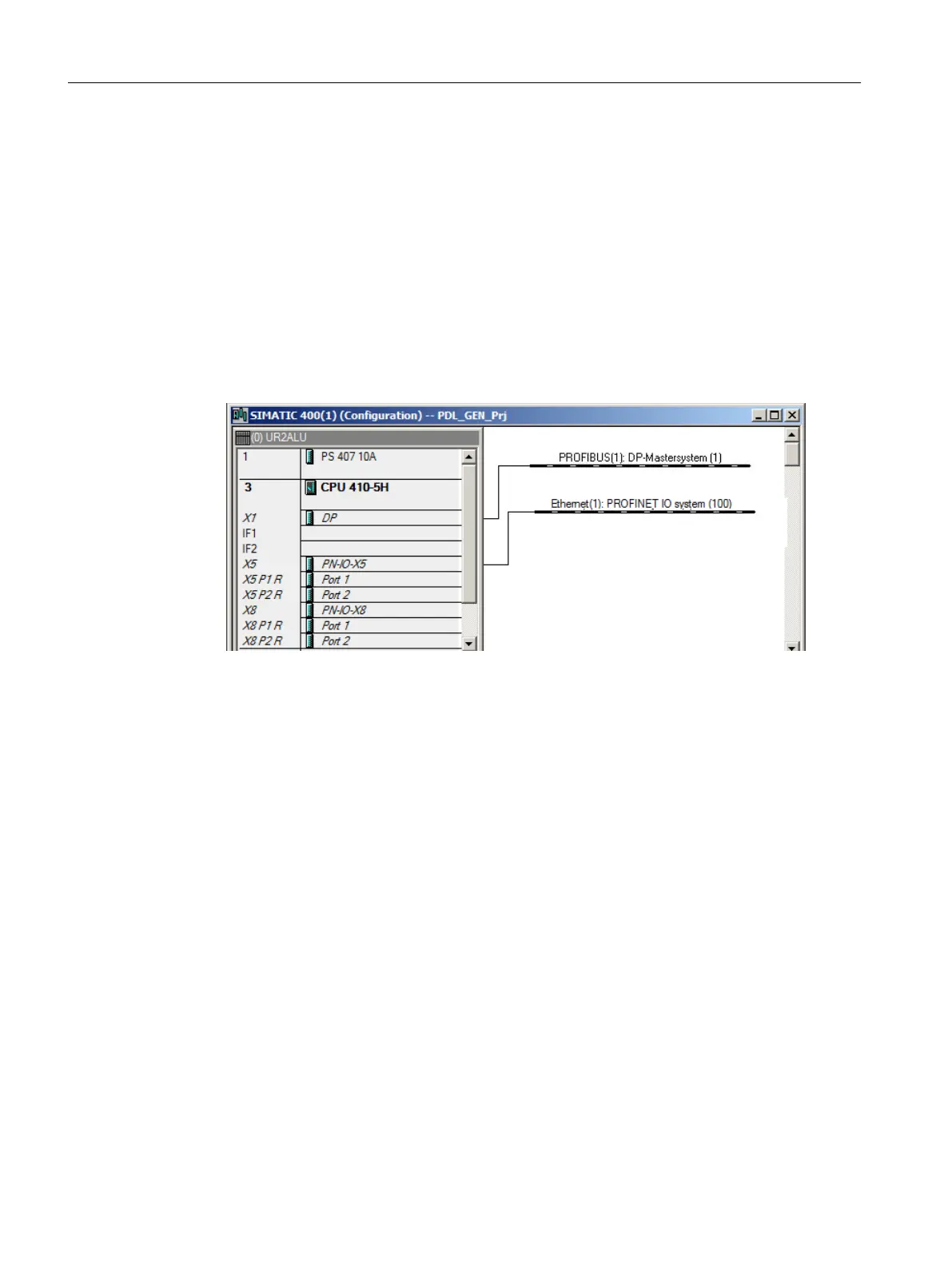

Figure 3-8 Con󹪝guration of the S7-400
3.10.2 Setting the IP address of the IM 152-1PN on PROFINET IO
Requirements
• You have selected the PROFINET con󹪝guration.
• A PROFINET IO system is con󹪝gured at a PN IO interface of the CPU.
Procedure
1. Select the interface module in HW Con󹪝g.
2. Select the menu command Edit > Object Properties.
Commissioning guideline
3.10 Con󹪝guring the Example
ET 200iSP
50 Operating Instructions, 11/2022, A5E00247483-AK
