Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
101
Main circuit interface (motor side)
Type
Illustration
Signal
Description
Power con-
nector
Straight connector for
1FL6 motor:
Angular connector for
1FL6 motor:
1PH1 motor:
1: U Phase U
2: V
Phase V
3: W Phase W
4/ : PE Protective earth

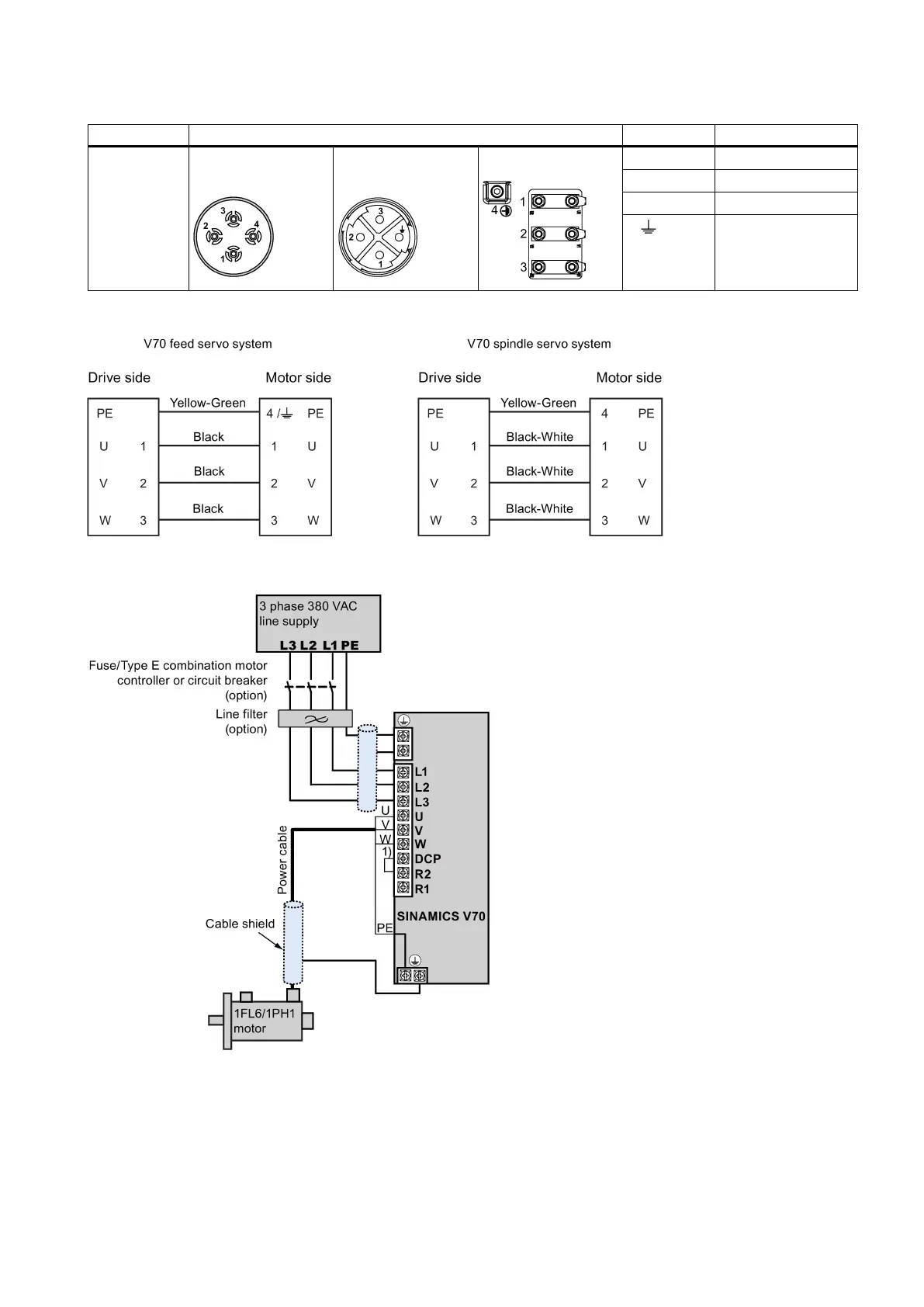

Wiring
Main circuit wiring for SINAMICS V70 FSA/FSB/FSC
1)
A short-circuit stick is available only for the SINAMICS V70 feed drive.
