Commissioning Manual
50 6FC5397-4EP10-0BA8, 07/2018
Electric shock and danger to life when live parts are touched
Death or serious injury can result when live parts are touched.
• Only work on electrical devices when you are qualified for this job.
• Always observe the country-specific safety rules.
Before installing or removing the components of the control system, make sure that the system is disconnected
from the mains.
Fire or electric shock due to inadequate protection class
If the equipment operates in an area subject to inflammables or combustibles, water or corrosion hazards, it
contains high risk of fire or electric shock.
The fire or electric shock may lead to death or serious injury.
Make sure that the control system is installed in a control cabinet with an adequate protection class.
Note
When dimensioning the control cabinet, make sure that the installed components do not exceed the permissible surrounding
air temperature, even if the outside temperature is high.
Mounting the PPU and MCP
3.1.1

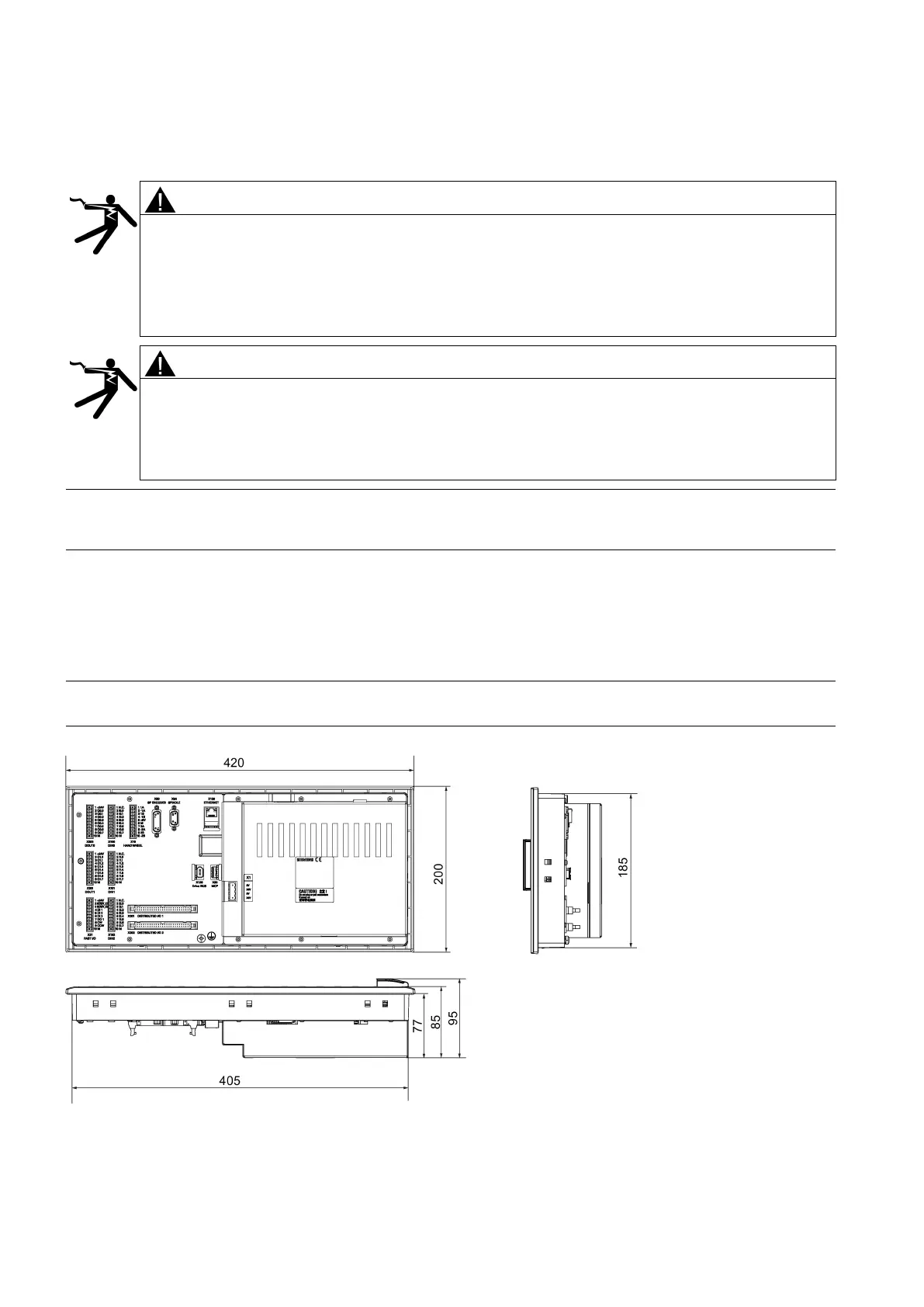

Outline dimensions (unit: mm)
PPU161.3/PPU151.3
Note
PPU161.3 and PPU151.3 have the same outline dimensions. The illustration below uses PPU161.3 as an example.
