Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
29
2.1.4

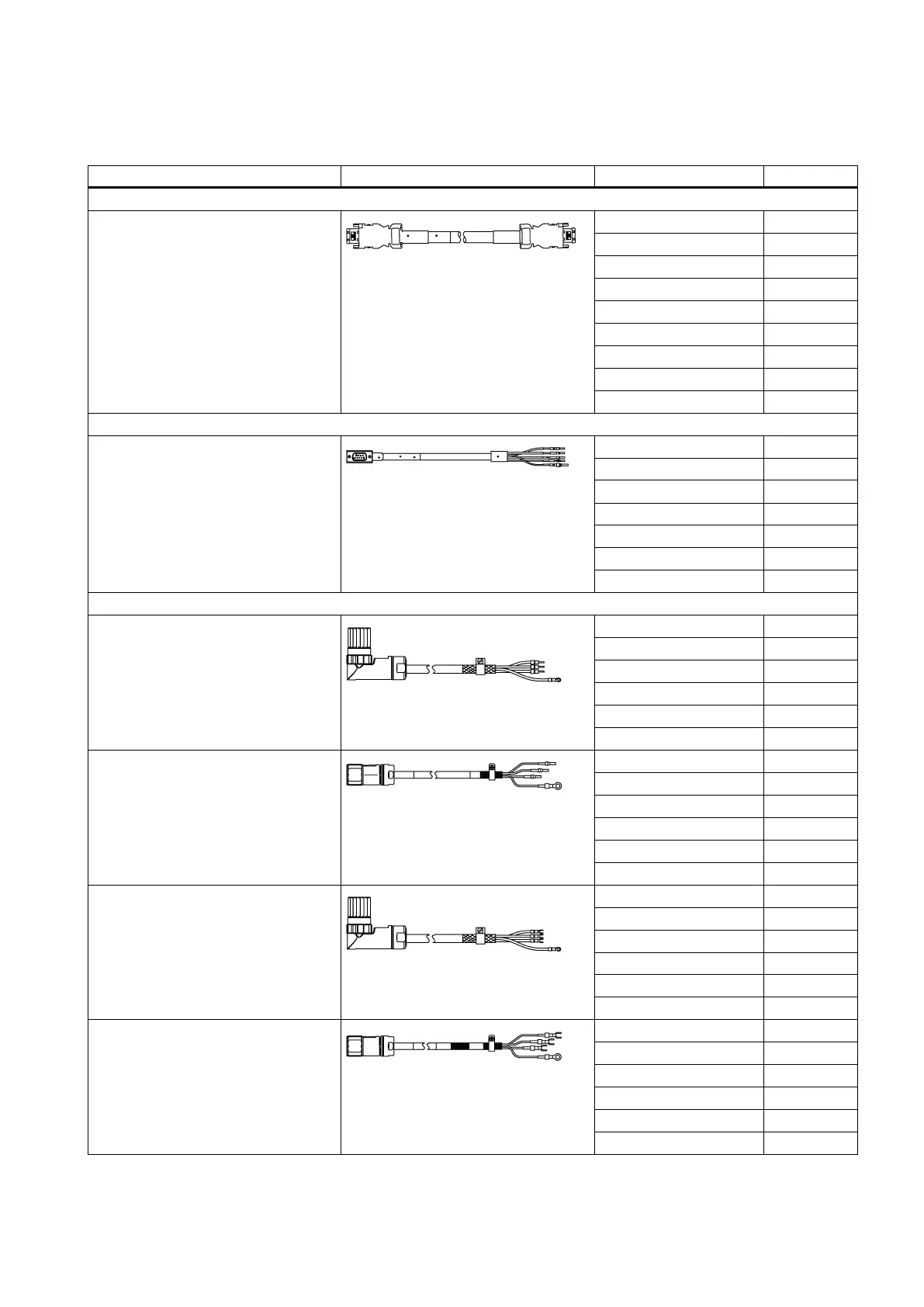

Cables and connectors
Cables
Component
Illustration
Article number
Length (m)
PPU to SINAMICS V70 feed/spindle drive
Drive Bus cable 6FC5548-0BA20-1AA2 0.25
6FC5548-0BA20-1AA3
0.35
6FC5548-0BA20-1AB0 1
6FC5548-0BA20-1AD0
3
6FC5548-0BA20-1AF0
5
6FC5548-0BA20-1AH0
7
6FC5548-0BA20-1BA0
10
6FC5548-0BA20-1BF0
15
6FC5548-0BA20-1CA0
20
PPU (analog spindle interface) to Siemens inverter or third-party drive (with analog input)
Spindle setpoint cable
6FC5548-0BA05-1AD0
3
6FC5548-0BA05-1AE0
4
6FC5548-0BA05-1AF0
5
6FC5548-0BA05-1AH0
7
6FC5548-0BA05-1BA0
10
6FC5548-0BA05-1BF0
15
6FC5548-0BA05-1CA0
20
SINAMICS V70 feed drive to 1FL6 motor
MOTION-CONNECT 300 power cable
(V70 FSA to 1FL6 motor with straight
connectors)
6FX3002-5CL01-1AD0
3
6FX3002-5CL01-1AF0
5
6FX3002-5CL01-1AH0
7
6FX3002-5CL01-1BA0
10
6FX3002-5CL01-1BF0
15
6FX3002-5CL01-1CA0 20
MOTION-CONNECT 300 power cable
(V70 FSA to 1FL6 motor with angular
connectors)
6FX3002-5CL02-1AD0
3
6FX3002-5CL02-1AF0
5
6FX3002-5CL02-1AH0
7
6FX3002-5CL02-1BA0
10
6FX3002-5CL02-1BF0
15
6FX3002-5CL02-1CA0
20
MOTION-CONNECT 300 power cable
(V70 FSB/FSC to 1FL6 motor with
straight connectors)
6FX3002-5CL11-1AD0
3
6FX3002-5CL11-1AF0
5
6FX3002-5CL11-1AH0
7
6FX3002-5CL11-1BA0
10
6FX3002-5CL11-1BF0
15
6FX3002-5CL11-1CA0
20
MOTION-CONNECT 300 power cable
(V70 FSB/FSC to 1FL6 motor with
angular connectors)
6FX3002-5CL12-1AD0
3
6FX3002-5CL12-1AF0
5
6FX3002-5CL12-1AH0
7
6FX3002-5CL12-1BA0
10
6FX3002-5CL12-1BF0
15
6FX3002-5CL12-1CA0
20
