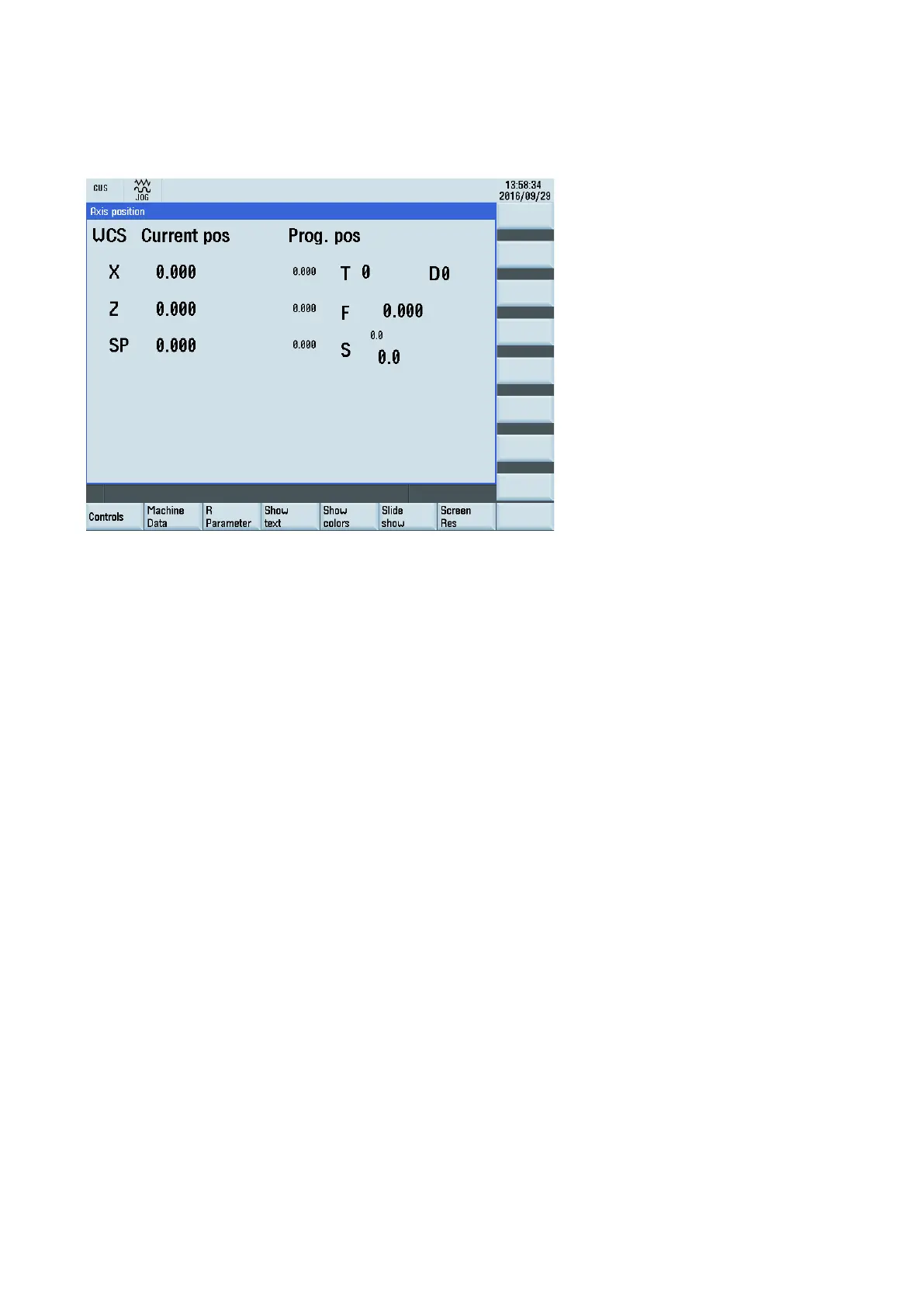

Example of a user dialog on the HMI
The configured softkey menus are displayed when the user-defined operating area is called. This enables the user to
operate the dialog forms which have been configured.
Predefined functions (Page 346)
Structure of configuration file
Overview
A configuration file consists of the following elements:
● Description of the "main" start menu with start softkeys
● Definition of dialogs
● Definition of variables
● Description of the blocks
● Definition of softkey bars
Language-dependent texts are used for:
● Softkey labels
● Headers
● Help texts
● Any other texts
