Commissioning Manual
120 6FC5397-4EP10-0BA8, 07/2018
The control system carries out a normal startup by default after power
-on. When necessary, you can press this
key on the PPU once the message "Press the SELECT key to enter set
-up menu" appears while the system

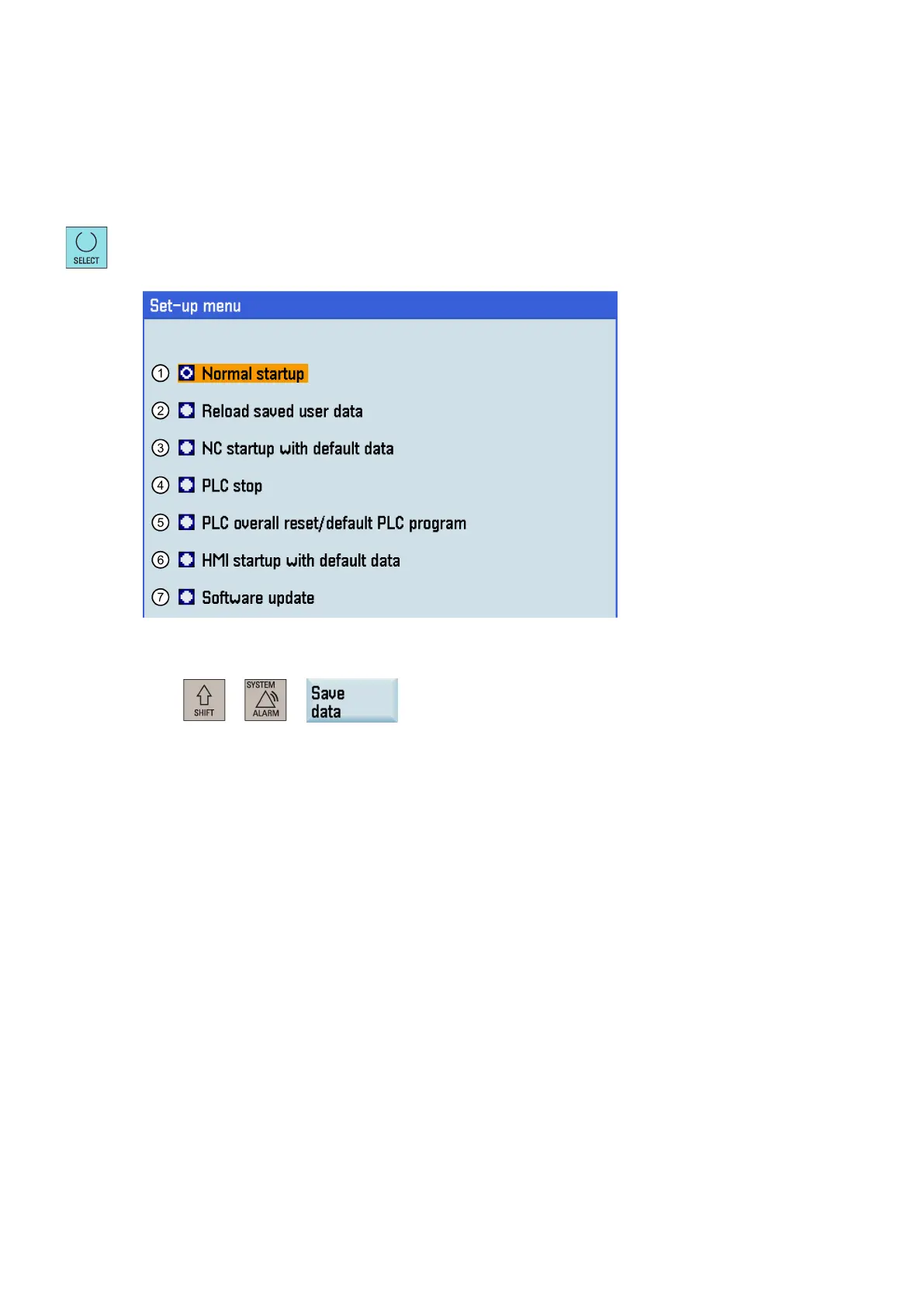

boots to select other startup options via the following menu:
The system carries out a normal startup.
The system loads the user data saved through the following operations from the system CF card:
The system loads the default NC data and setti
ngs, and deletes the retentive data on the PLC.
The system resets the PLC and loads the default PLC program.
The system loads the default HMI settings.
The system installs an update on the system CF card from the USB fla
sh drive.
Note: The above menu options â‘¢ to â‘¥ are only visible if the manufacturer password is set before last power-off.
