Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
243
12.5
Configuring the Y axis on a turning machine
Prerequisites:
● The Drive Bus address of the corresponding drive is properly set (p0918 = 12). For more information, see Section
"Configuring Drive Bus addresses (Page 118)".
● At least one additional axis is activated. For more information, see Section "Activating the optional functions (Page 126)".
12.5.1
Setting parameters for the Y axis

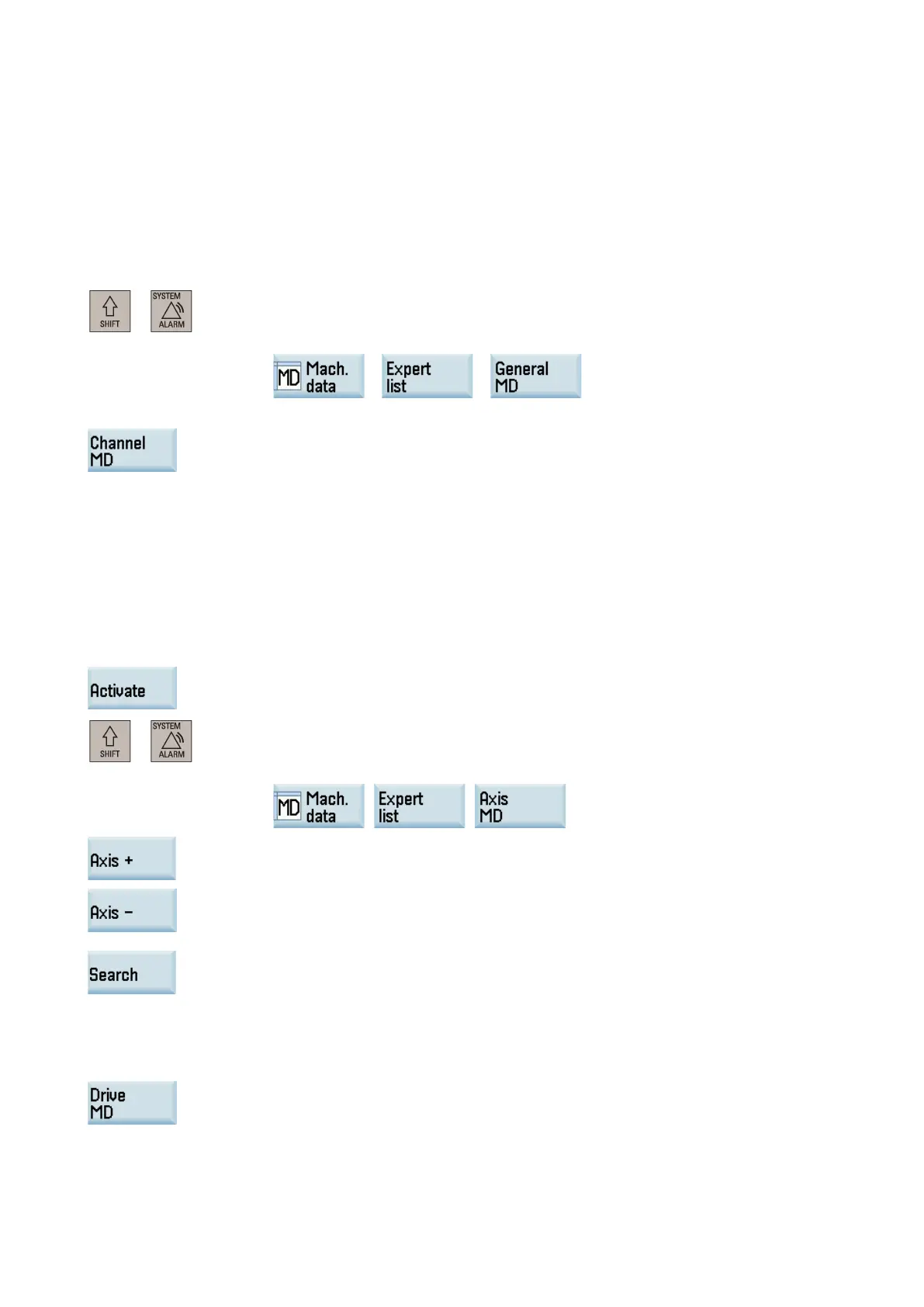

Proceed as follows to set the parameters for the Y axis:
+
1.
Select the system data operating area.
2.
Open the general machine data window through the following softkey operations:
→ →
3.
Set the machine data 10000[1] to MY1.
4.
Press this softkey to open the channel machine data window and set the following machine
data:
•
20050[1] = 2
•
20050[2] = 3
•
20060[1] = Y
•
20070[1] = 2
•
20070[2] = 3
•
20070[3] = 4
•
20080[1] = Y
•
20080[2] = Z
•
20080[3] = SP
5.
Press this softkey to activate the value changes. Note that the control system restarts to a
c-
cept the new values and t
he additional axis can be displayed in the system.
+
6.
Select the
system data operating area.
7.
Open the axis machine data window through the following softkey operations:
→ →
8.
Use these softkeys to switch to the data set for axis MY1.
9.
Use this softkey or the cursor keys to search for the following machine data and a
ssign the
desired values:
•
30130[0] = 1
•
30240[0] = 1 (incremental encoder) or 4 (absolute encoder)
•
31020[0] = encoder resolution (= 2500: incremental encoder; = 2048: absolute encoder)
•
34200[0] = 1 (incremental encoder) or 0 (absolute encoder)
10.
Press this softkey to open the drive data list.
