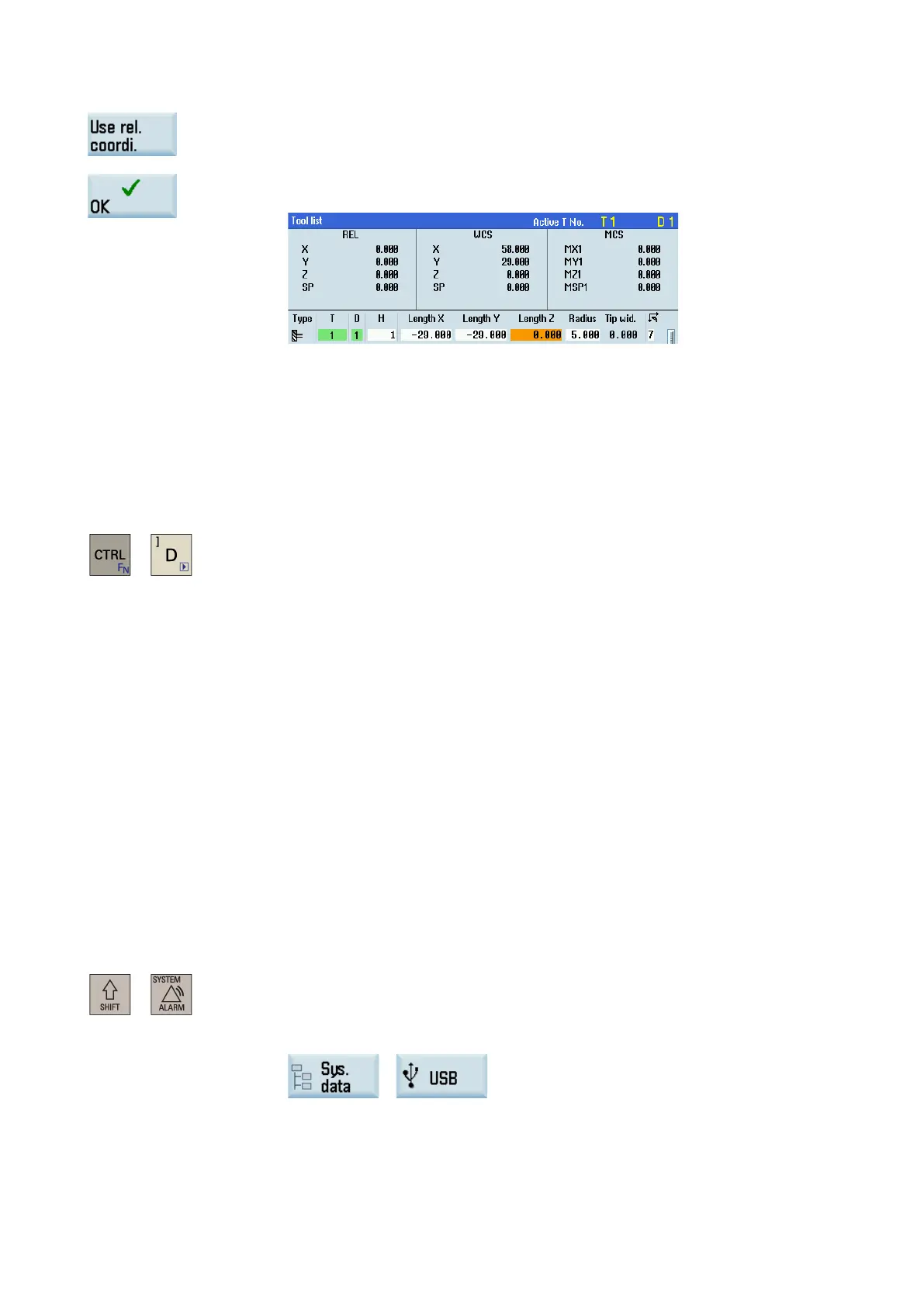

If you desire to use the relative coordinate, press this softkey.
6.
Press this softkey to confirm your input. The system calculates the offset and e
n
ters it in the
geometry input field of the currently active tool automatically.
7.
Repeat the above steps to finish measuring all the tools.
13
Other frequently used functions
13.1
Playing a slide show
The control system has the function of playing a slide show. By default, the slide show of Siemens product information is
provided.
+
You can press this key combination on the PPU to play a slide show and press the key combination
again to exit the slide show.
Playing the machine manufacturer's slide show
You can create your own slides and play them on the control system. The control system supports the slide show of images
in ".png" or ".bmp" format. To achieve the best display effect, the recommended image size is 800*600 pixels.
Proceed through the following steps to playing your own slide show:
1.
Prepare the images for the slide show an
d name each image according to the following
syntax:
•
, or
•
Here "%u
" stands for the number sequence starting with "1". For example, slide1.png,
slide2.png, slide3.png ...
If your slides include both PNG
-format images and BMP-format images, number them sepa-
rately. During the slide show, the PNG
-format images will have a higher priority over the
BMP-format images.
2.
Store all the images in a folder on a USB memory stick, and name the folder with the corr
e-
sponding language code, fo
r example, "chs" for Chinese, "eng" for English. For more infor-
mation about other available language codes, see Section "
Loading system languages
(Page
124)". Note that a slide show in a non-standard language works only if this language
is loaded on the control system.
3.
Insert the USB stick into the USB interface on the front panel of the PPU.
+
4.
Select the system data operating area.
5.
Locate the folder(s) containing the slides under the USB directory thr
ough the following
softkey operations:
→
