Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
156 6FC5397-4EP10-0BA8, 07/2018
Name
Type
Description
SP_LED
BOOL
Spindle operating status LED
Assigned global variables
SP_B_CMD BOOL Spindle braking command
T11
TIMER
Spindle braking timer
Relevant PLC machine data
No.
Type
Description
14510 [13]
BOOL
Spindle braking duration (unit: 0.1 s)
14512 [19].1
BOOL
Selection of spindle braking function (1: enabled; 0: forbidden)
14512 [19].4 BOOL Selection of the spindle speed in "JOG" mode (0: select the speed set in
MD32020; 1: select the speed set last time)

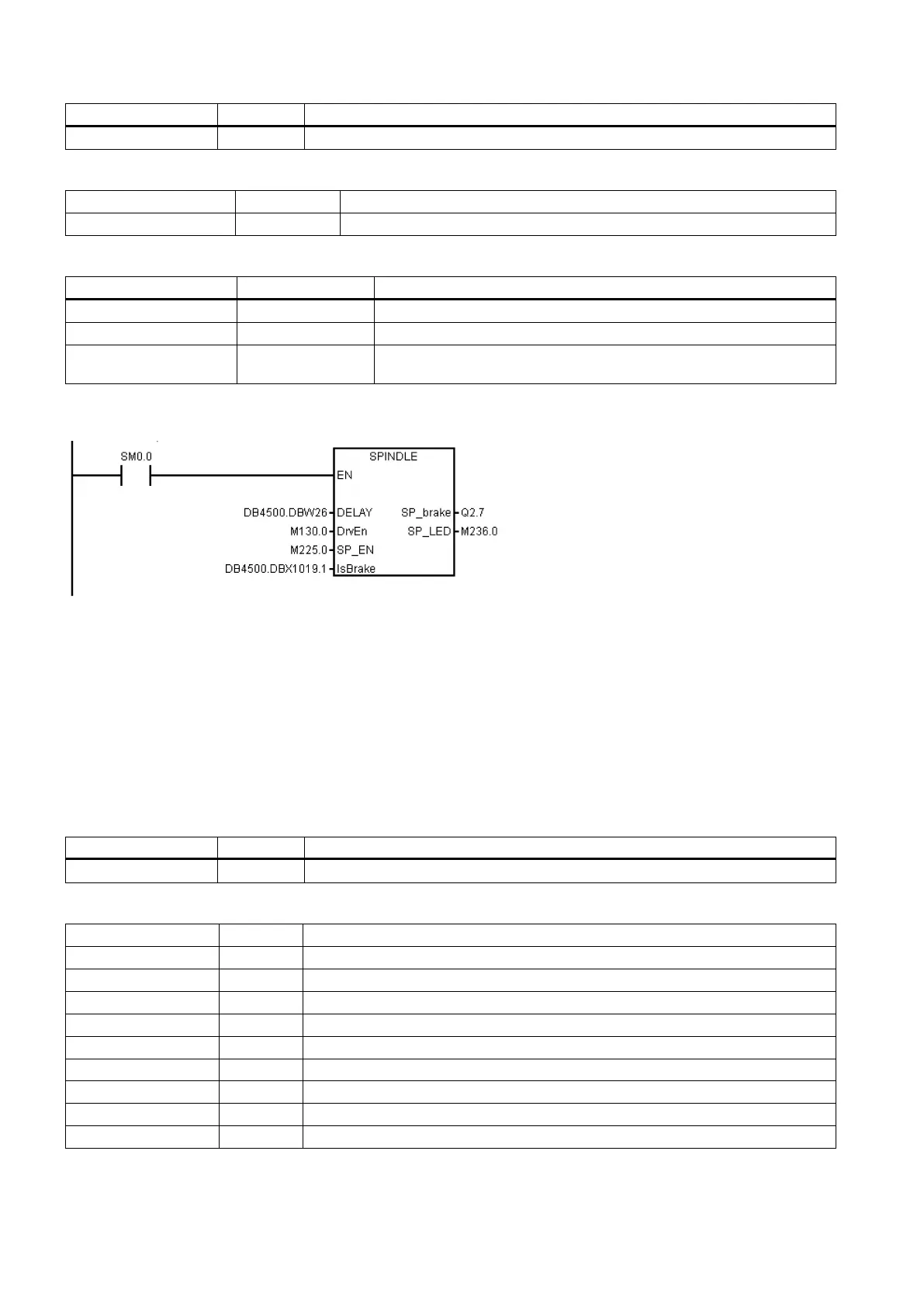

Example for calling subroutine 42
6.6.17
Subroutine 43 - MEAS_JOG (measurement in JOG mode)
Purpose
Subroutine 43 is used to process the measuring probe signal and realize the "measuring in JOG mode" function. You can
use this subroutine to calibrate the probe and measure a tool.
The precondition for calling this subroutine is to call subroutine MCP_NCK (SBR37) in the main program. The "measuring in
JOG mode" function is automatically deactivated if you have changed the operating mode when the function becomes
active.
Local variable definition
Inputs
Name
Type
Description
T_ACT
DWORD
Transfer the active tool into interface
Assigned global variables
MEAS_OPAUT
M240.0
Measuring in AUTO mode
CHL_HMI
M240.2
From HMI signals: mode changes during measurement
NO_KEY
M240.3
No JOG key available for the axes
FDI_MEASJOG
M240.5
Meas_JOG forbidden for feed
ON_MEASJOG
M240.6
Meas_JOG activated
PROBE_ON
M240.7
Probe signal released
JOG_MEASJOG
M241.0
Operating mode manually output to Meas_JOG
AUT_MEASJOG
M241.1
Operating mode manually output to Meas_JOG
CHL_MEASJOG
M241.2
Operating mode change forbidden to Meas_JOG
KEY_MEASJOG
M241.3
JOG key Meas_JOG
