Commissioning Manual
56 6FC5397-4EP10-0BA8, 07/2018
3.2.2

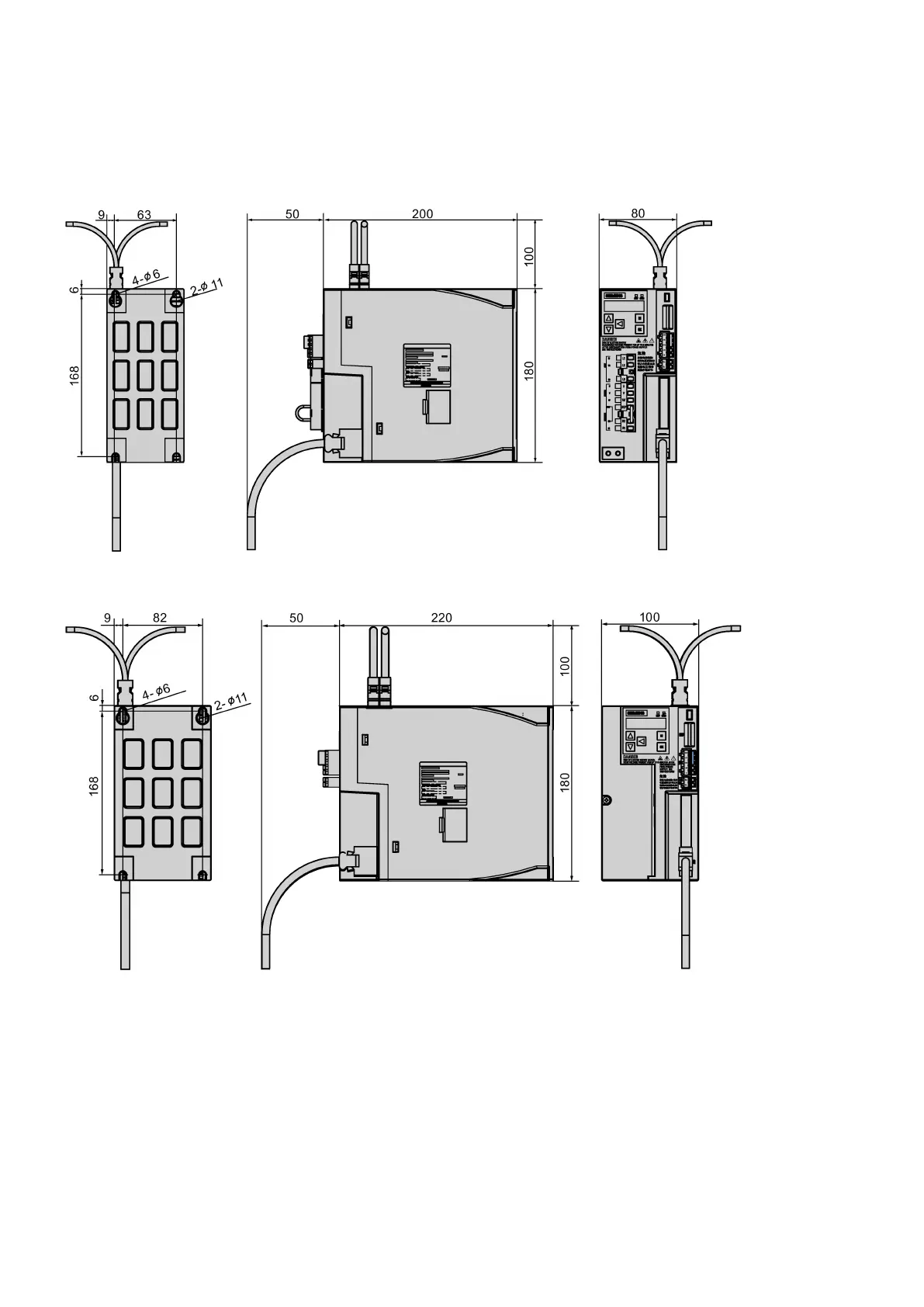

Drill patterns and outline dimensions
All dimensional data is specified in millimeters.
SINAMICS V70 feed drive FSA
SINAMICS V70 feed/spindle drive FSB
