Commissioning Manual
74 6FC5397-4EP10-0BA8, 07/2018
4.1

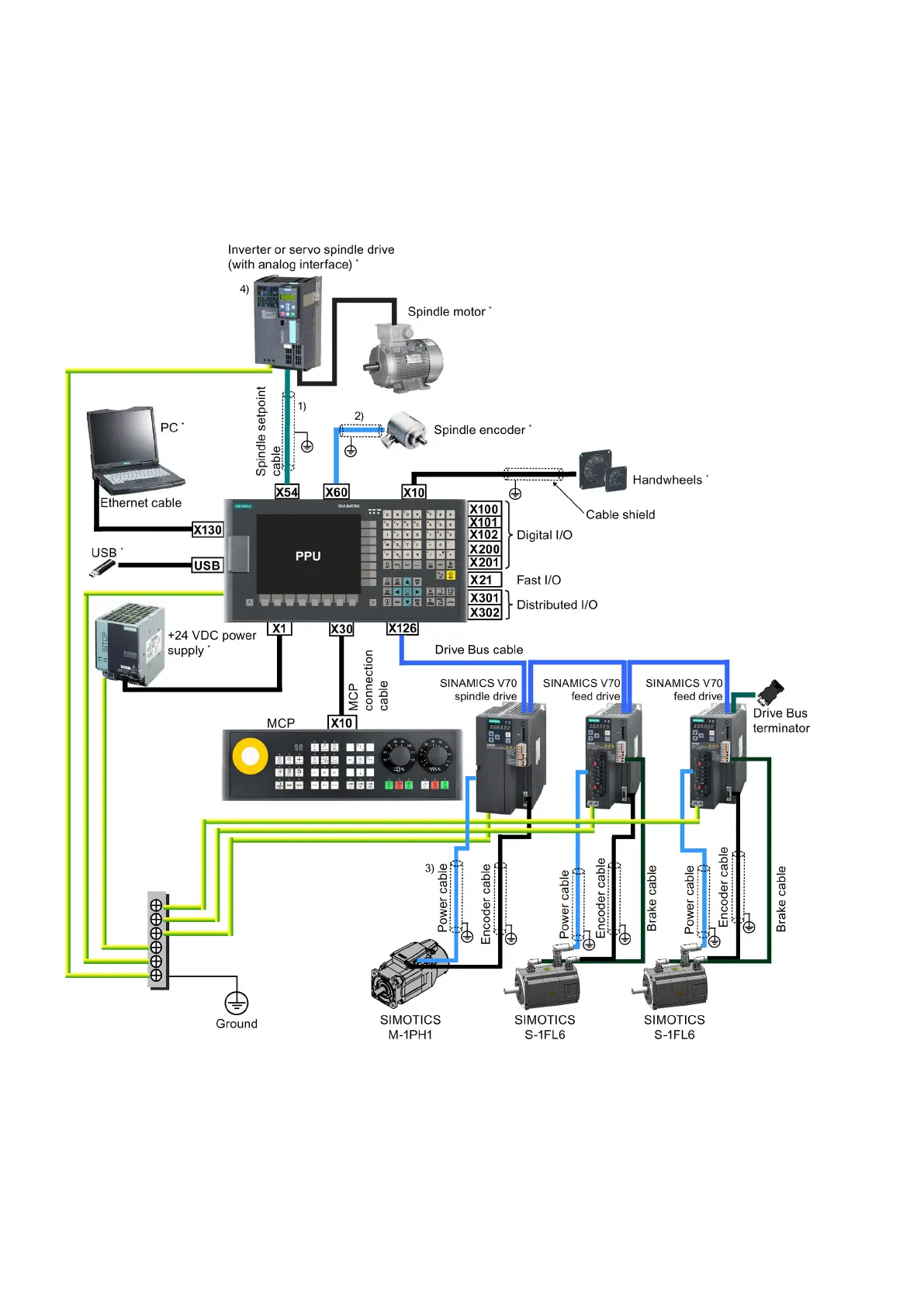

System connection overview
SINUMERIK 808D ADVANCED control system
The following configuration shows a typical example of the SINUMERIK 808D ADVANCED T controller (PPU161.3) with the
SINAMICS V70 servo system, controlling two feed axes and one digital spindle. Note that the devices with an asterisk ("*")
are not included in the scope of delivery.
1), 2)
For more information about cable shield connection, see Section "Analog spindle interface - X54, spindle encoder
interface - X60 (Page 88)".
3)
For more information about cable shield connection, see Section "Connecting the drive to the motor (Page 109)".
4)
For more information about configuring the analog spindle, see Section "Configuring the drives (Page 209)" or "Configuring
an additional spindle (Page 238)".
