Network functions
10.1
Network configuration
Ethernet connections
You can establish a network connection between the control system and a computer via the Ethernet interface X130. The
following Ethernet connections are possible:
● Direct connection: connecting the control system directly to a computer
● Network connection: integrating the control system into an existing Ethernet network
Establishing a direct connection
Proceed as follows to establish a direct connection between the control system and a computer:
1.
Connect the control system with the computer using an Ethernet cable.
+
2.
Select the desired operating area on the PPU.
3.
Press this key to view the extended softkeys.
4.

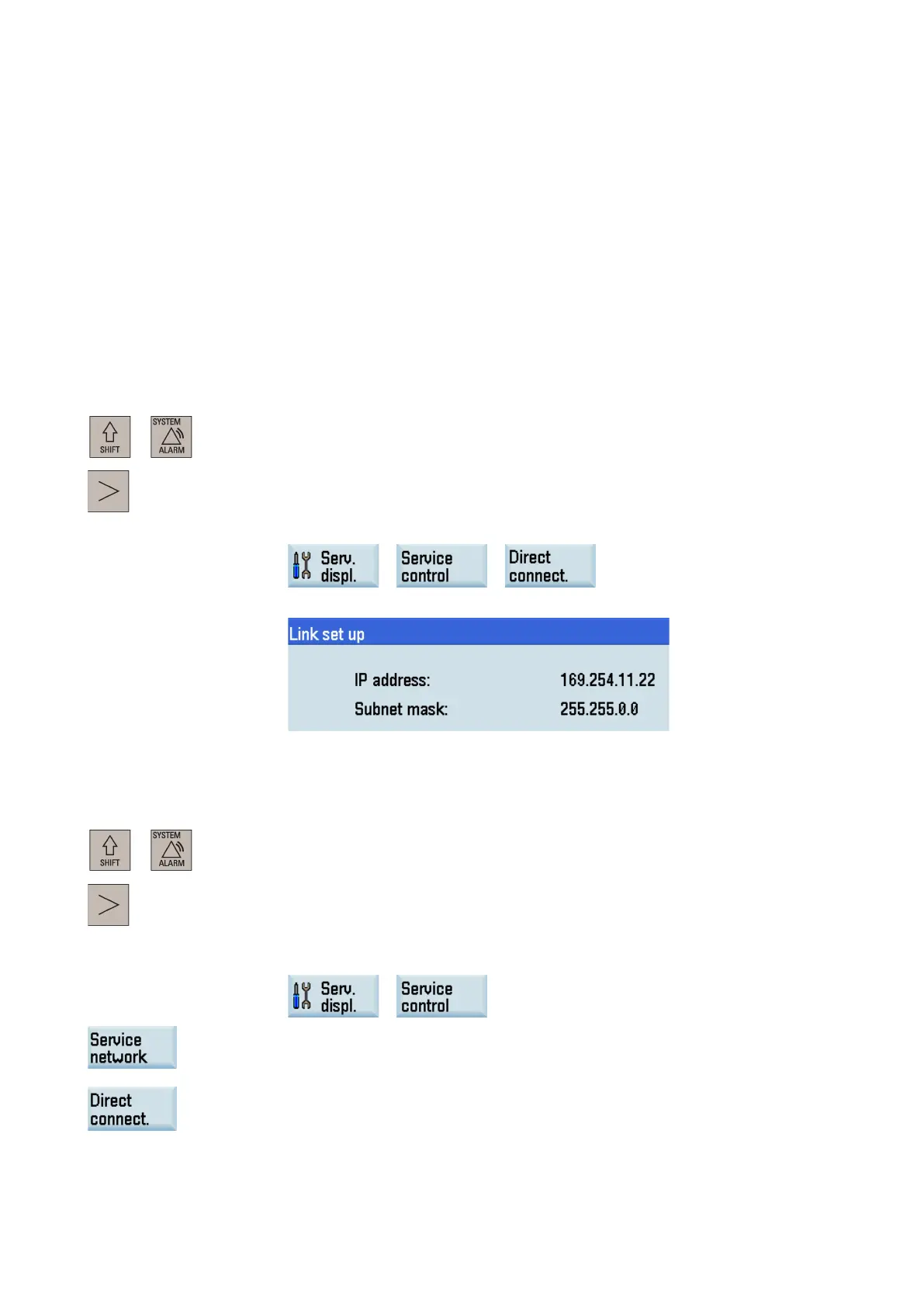

Set up a direct connection on the control system through the following softkey operations:
→ →
The followi
ng dialog pops up on the screen:
Establishing a network connection
Proceed as follows to establish a network connection:
1.
Connect the control system with the local network using an Ethernet cable.
+
2.
Select the desired oper
ating area on the PPU.
3.
Press this key to view the extended softkeys.
4.
Enter the main screen of the service control options through the following softkey o
pera-
tions:
→
5.
Press this softkey to enter the window for the network confi
guration.
Note:
make sure this vertical softkey is not selected.
