Commissioning Manual
92 6FC5397-4EP10-0BA8, 07/2018

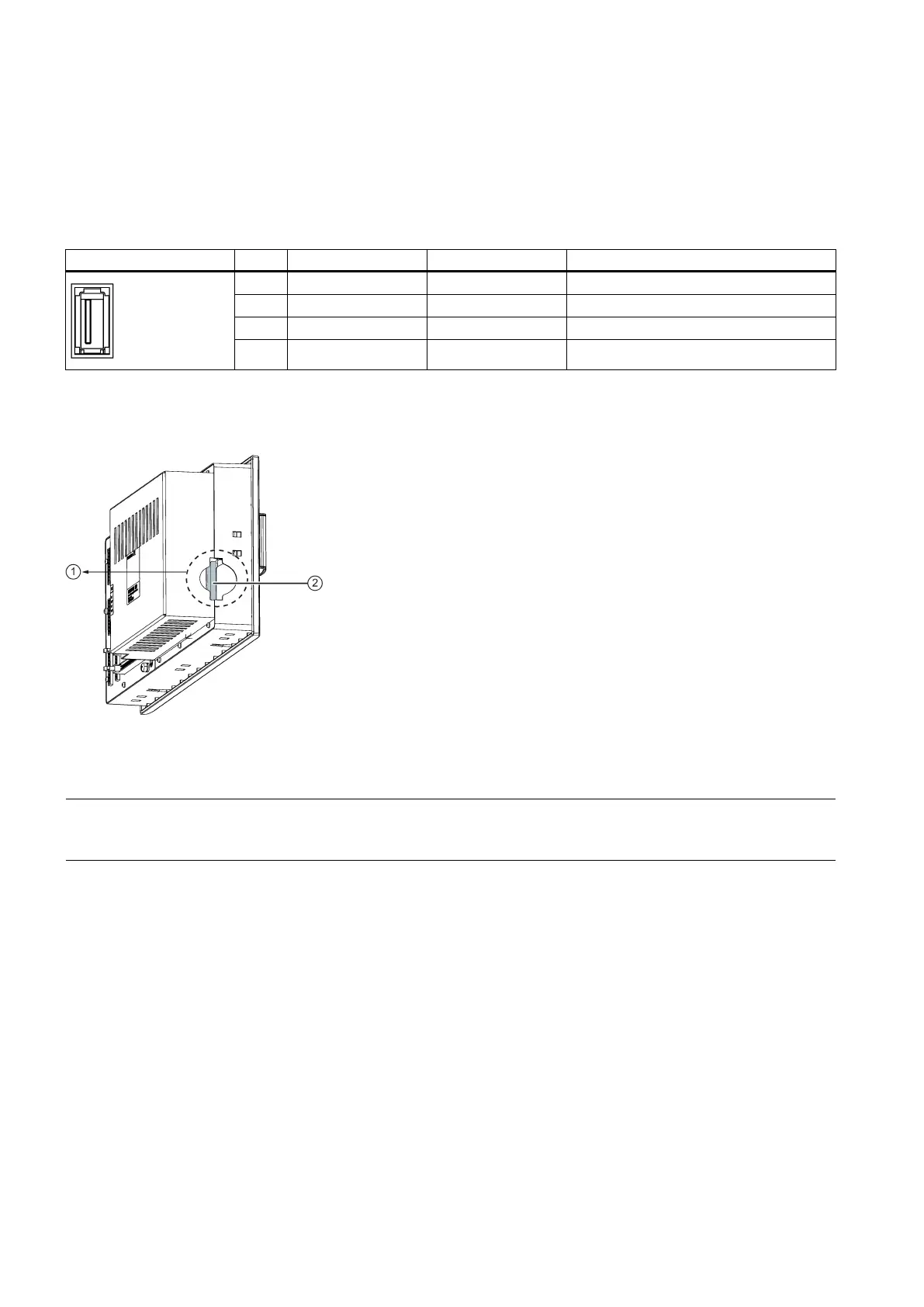

4.2.15
USB interface on the front cover of the PPU
Pin assignment
Type
USB socket, type A
Cable
Type: USB 1.1 cable
Length: less than 3 m
Illustration
Pin
Signal name
Signal type
Comment
1
P5_USB0
VO
5 V power supply
2 DM_USB0 I/O USB data-
3
DP_USB0
I/O
USB data+
4 M VO Ground
4.2.16
Slot for the system CF card
The system CF card is installed on the PPU at the factory.
①
Slot for the CF card
②
System CF card
Note
The system CF card is accessible only by the Siemens service personnel. Do not touch or remove the system CF c
ard
under any conditions.
