Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
231

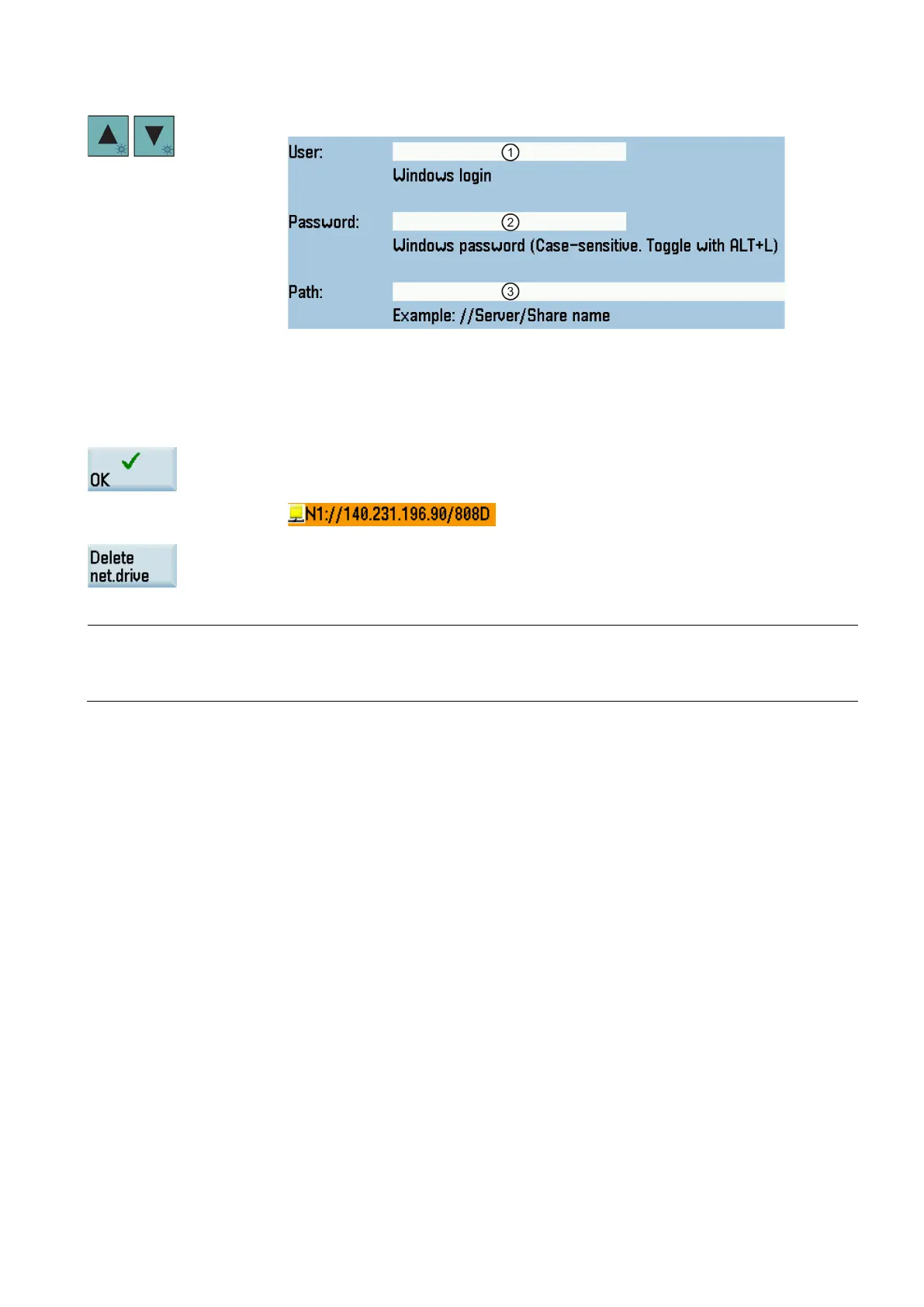

Move the cursor to the following input fields:
: Enter the user name of your Windows account
: Enter the logon password (case sensitive) of your Windows account
: Enter the IP address of the server and the share name of the shared directory on your
computer. Example: //140.231.196.90/808D
Press this softkey to confirm and the configured network drive appears on the screen as
follows. The drive icon is yellow if the network drive is connected su
ccessfully; otherwise,
You can delete a selected network d
rive using this softkey.
Note
After you properly configure all the settings for the direct connection between the control system and the network drive, if the
network drive connection is still invalid, contact your Windows system administrator for poss
ible problems with your
operating system configuration.
