Siemens SINUMERIK 808D ADVANCED Series User Manual

Commissioning Manual
374 6FC5397-4EP10-0BA8, 07/2018
Frame size
FSA
FSB
FSC

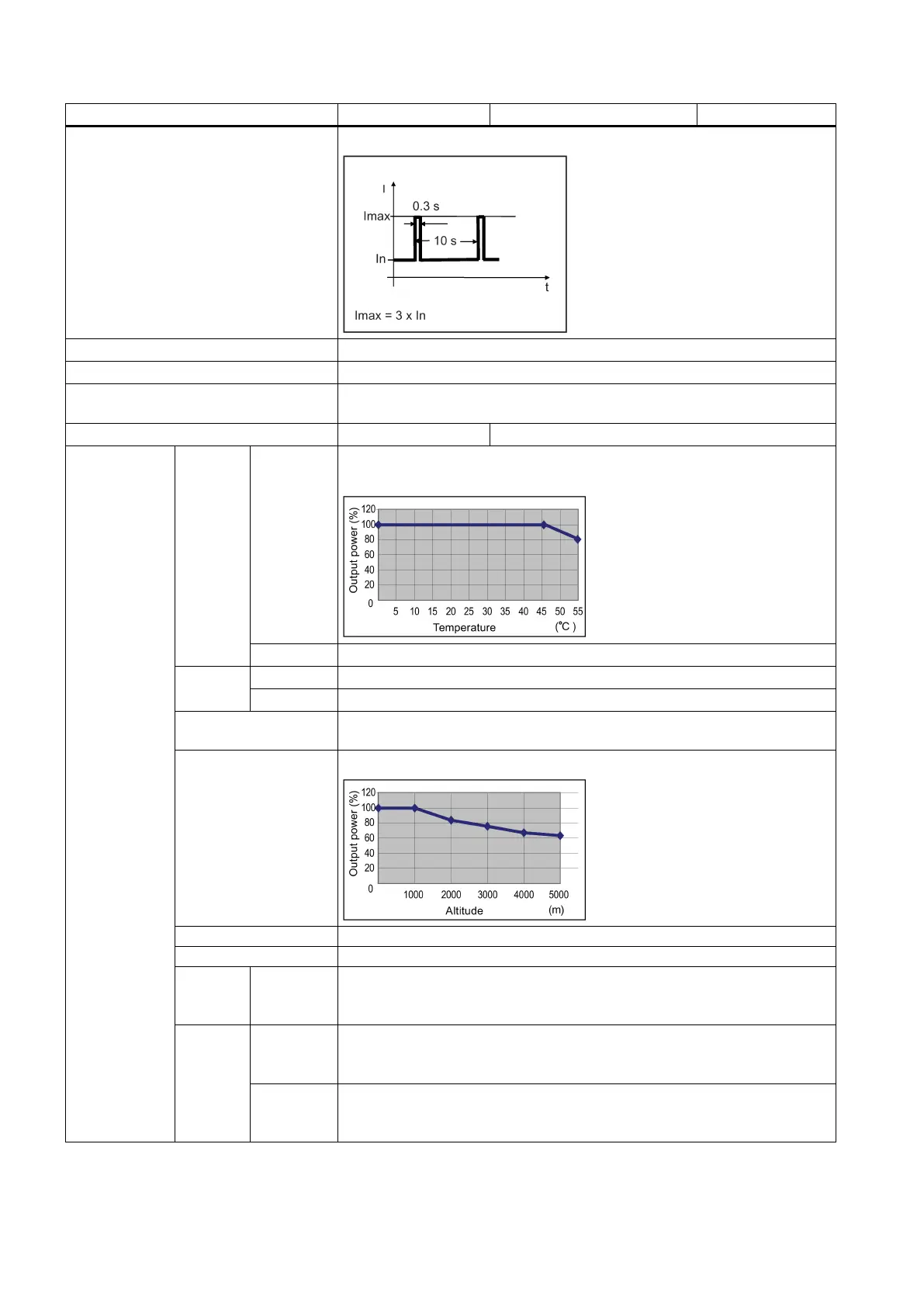

Overload capability 300%
Control system
Servo control
Braking resistor
Built-in
Protective functions Earthing fault protection, output short-cut protection, overvoltage/undervoltage
protection
2)
, I
2
t detection, IGBT overtemperature protection
Cooling method
Self-cooled
Fan-cooled
Environmental
conditions
Surround-
ing air
tempera-
ture
Operation 0 °C to 45 °C: without power derating
45 °C to 55 °C: with power derating
Storage
-40 °C to +70 °C
Ambient
humidity
Operation
< 90% (non-condensing)
Storage
90% (non-condensing)
Operating environment Indoor (without direct sunlight), free from corrosive gas, combustible gas, oil
gas, or dust
Altitude < 1000 m (without derating)
Degree of protection
IP20
Degree of pollution
Class 2
Shock
Operation
Operational area II
Peak acceleration: 5 g
Duration of shock: 30 ms
Vibration
Operation
Operational area II
10 Hz to 58 Hz: 0.075 mm deflection
58 Hz to 200 Hz: 1g vibration
Transport &
storage
5 Hz to 9 Hz: 7.5 mm deflection
9 Hz to 200 Hz: 2 g vibration
Vibration class: 2M3 transportation

Siemens SINUMERIK 808D ADVANCED Series Specifications

General

Brand	Siemens
Model	SINUMERIK 808D ADVANCED Series
Category	Control Unit
Language	English
