Chapter 2 Menus and Control Panel
104
Names and Functions of Parts of the Control Panel

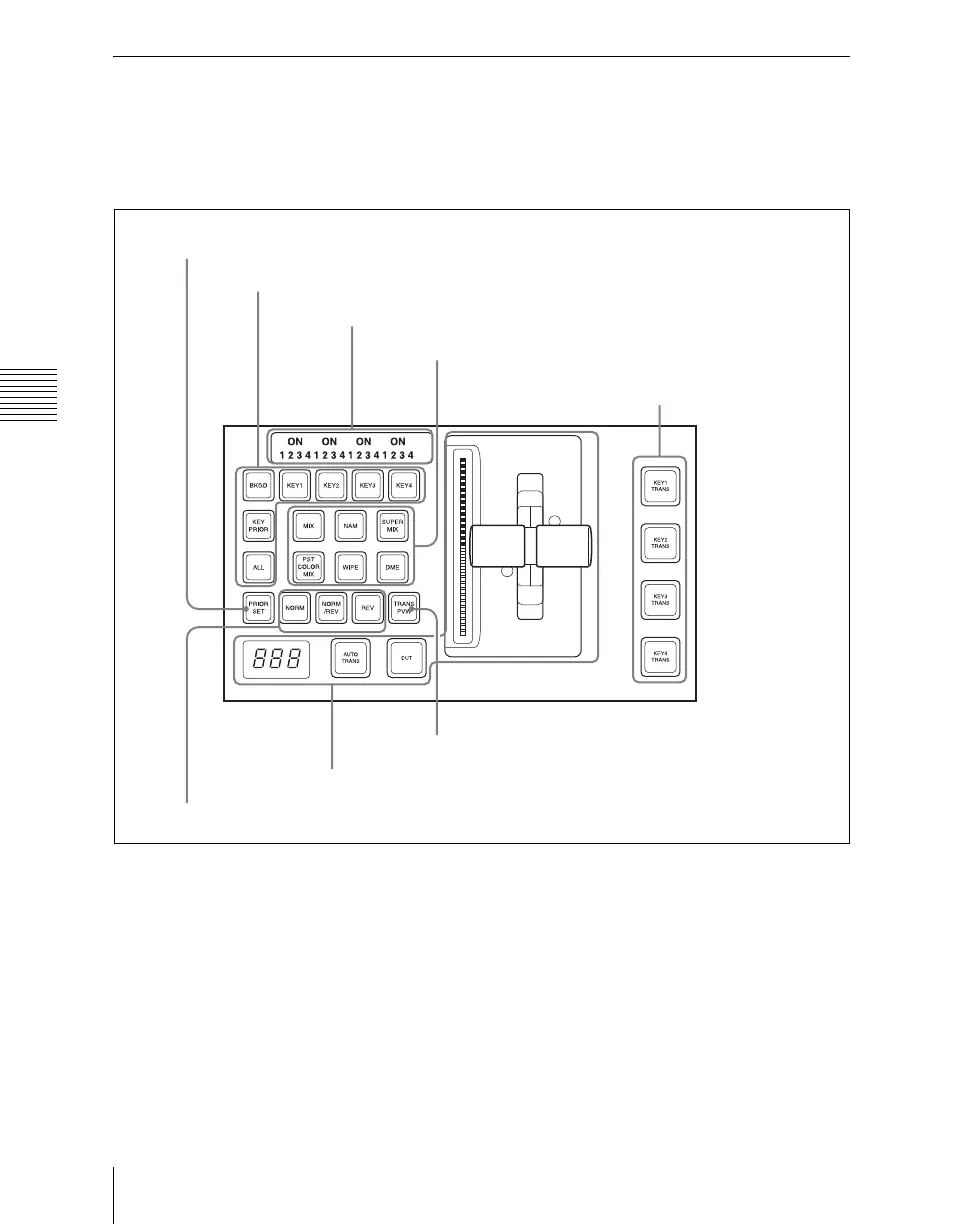

Transition Control Block (Compact Type)
The compact version of the transition
control block shown in the following figure
has fewer buttons than the standard type.
Independent key transition operations can
also be controlled with the compact
transition control block.
a Next transition selection buttons
Press these buttons, turning them on, to
determine what the next transition will
apply to.
BKGD: Next transition changes the
background.
KEY1 to KEY8 (DSK1 to DSK8 in the
PGM/PST bank): Press this button,
turning it on, to make the next
transition insert or remove the
corresponding key (keys 1 to 8). If a
key is currently inserted it will be
removed, and if it is not currently
inserted, it will be inserted.
In the PGM/PST bank, this inserts or
removes downstream keys 1 to 8.
For details of assignment and selection
of keys 5 to 8, see the following sections
in Appendix (Volume 1): “Assigning
Buttons for Selection of Keys 5 to 8 in
7 PRIOR SET button
1 Next transition selection buttons
6 Key status display
2 Transition type selection buttons
5 TRANS PVW button
3 Transition execution section
4 Wipe direction selection buttons
8 Independent key transition
execution section
