Chapter 2 Menus and Control Panel
83
Names and Functions of Parts of the Control Panel
to an existing setting, press this button
to confirm the change.
ENTER: Confirm an entered value.
e Display
This shows the selected region name and
entered numeric values.
Fade to Black Control Block
a FTB (fade to black) button
Press this button to fade to black the
program output of the PGM/PST bank, at
the set transition rate. You can set the fade
to black transition rate in the menu.
b Preview selection buttons
Press one of these buttons to select a signal
on the edit preview bus. Each button can be
assigned to any preview output in setup (see
“Overall Control Panel Settings (Config
Menu)” in Chapter 19 (Volume 3)).
PST (preset): When this button is pressed,
the signal selected on the background B
row of the PGM/PST bank is selected
on the edit preview bus.
M/E 1 to M/E 4, P/P (M/E1 to M/E 4, P/P
preview): The preview signal (M/E-1
PVW, M/E-2 PVW, M/E-3 PVW, M/
E-4 PVW, P/P PVW) of the M/E or
PGM/PST bank corresponding to the
pressed button is selected on the edit
preview bus.
For details of [M/E 4] button
assignment, see “Assigning a Button
for M/E-4 Selection in the Setup Menu”
(page 542) in Appendix (Volume 1).
M/E1 K to M/E4 K, P/P K (M/E1 to M/E
4, P/P key preview): The key preview
signal (M/E-1 K-PVW, M/E-2 K-
PVW, M/E-3 K-PVW, M/E-4 K-PVW,
P/P K-PVW) of the M/E or PGM/PST
bank corresponding to the pressed
button is selected on the edit preview
bus.
For details of [M/E 4] button
assignment, see “Assigning a Button

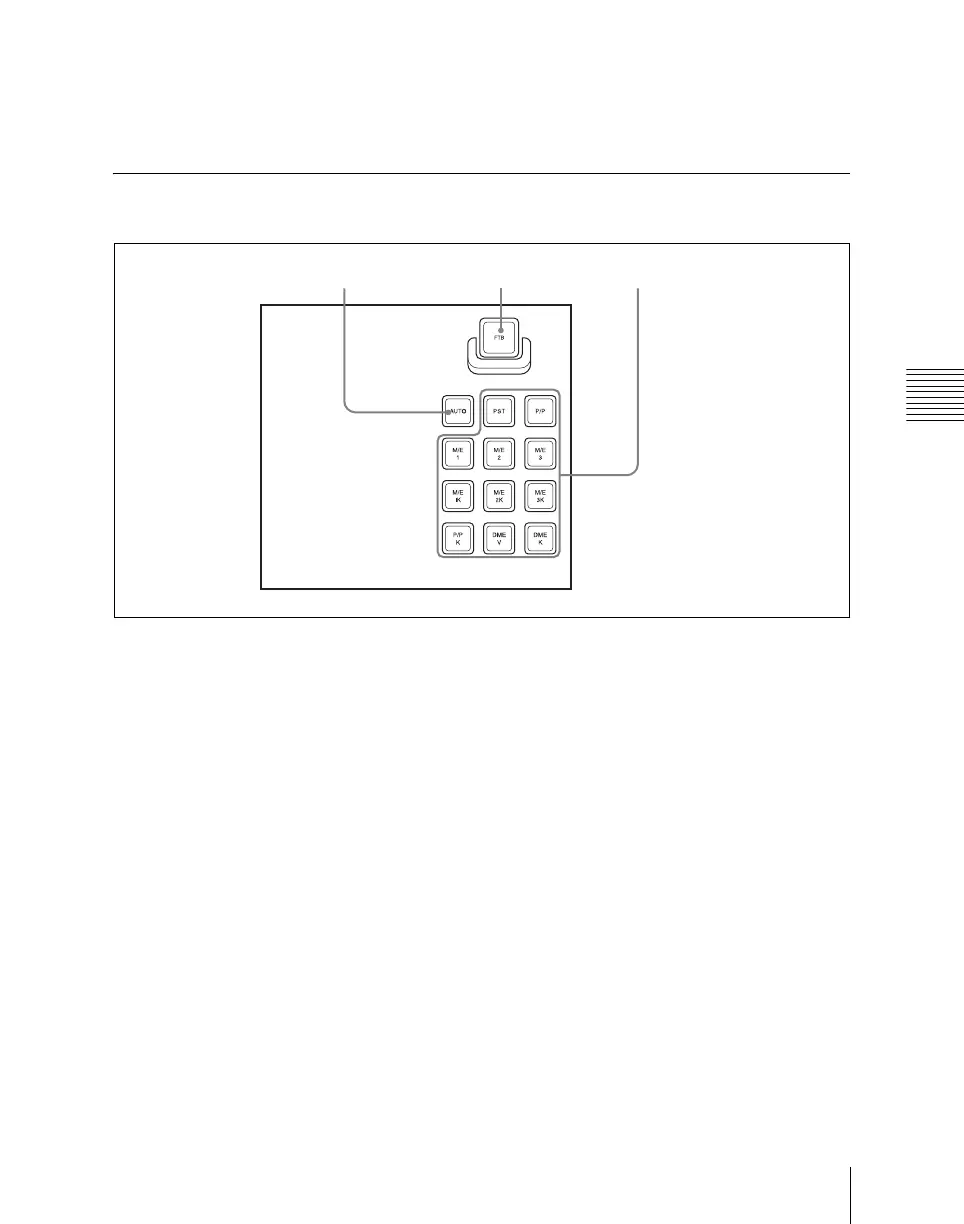

3 AUTO button 1 FTB button 2 Preview selection buttons
