Chapter 8 Color Backgrounds, Copy and Swap, and Other Settings
448
Router Control Menu Operations
Router Control Menu Operations
Using the Router >Router Control >Router Control menu, you can carry out
router switching operations.
Checking the List of Inputs for Each Destination
You can check the list of signals currently input for each destination.
In the menu control block, press the top menu selection button [RTR], then
select VF1 ‘Router Control’ and HF1 ‘Router Control.’

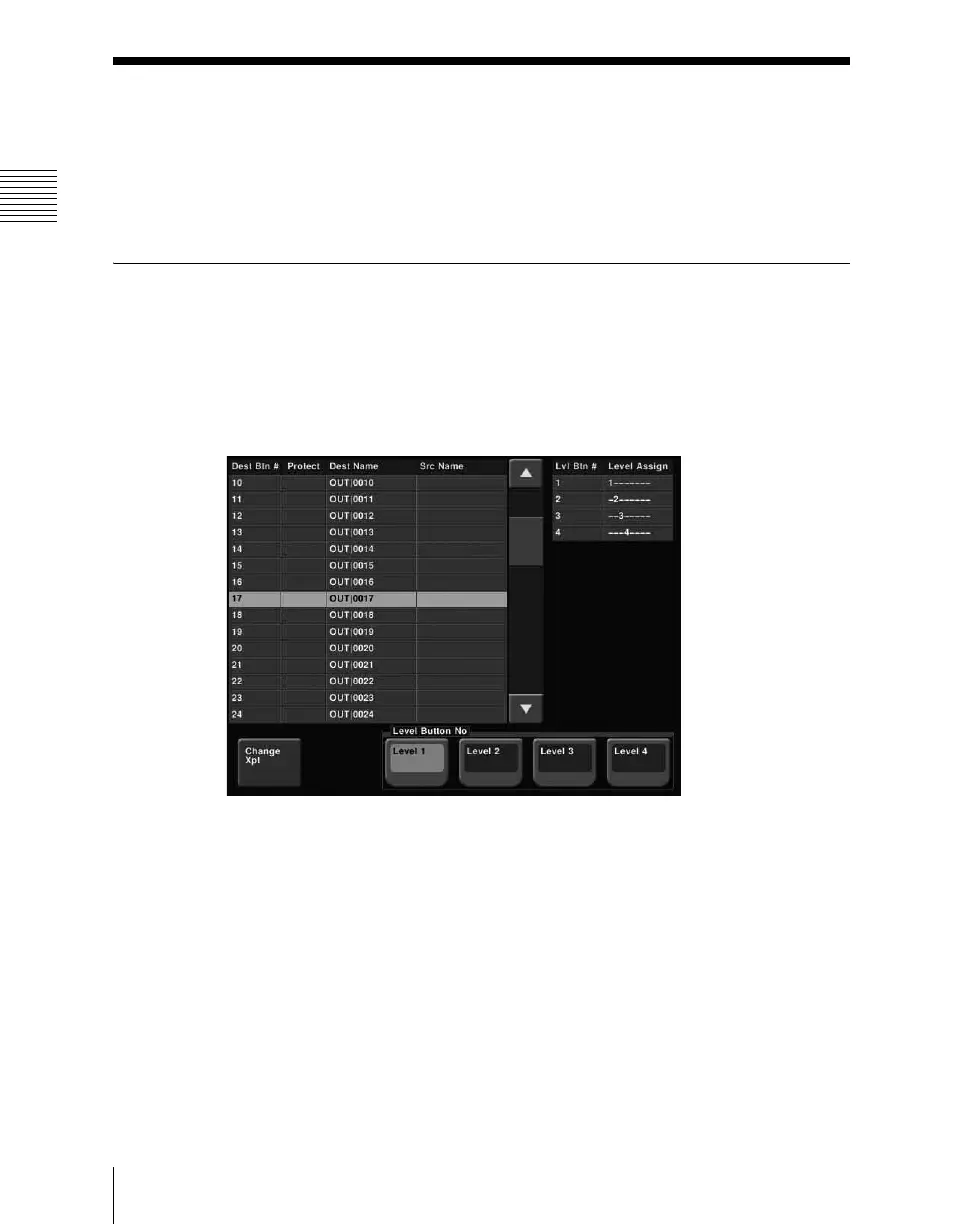

The following menu appears, and the left side of the status area shows a list for
destination assignments.
If in the Assign >RTR Mode Setting menu, [Inhibit] is set to On for a
destination, the corresponding line appears in gray. Also, if [PROT] (protect)
is set to ON for a source, using a BKSR3xxx or R1xxx series Router remote
control, a padlock icon appears.
The right side of the status area shows the level assignment status to the Level
1 to Level 4 buttons.
Selecting the level
In the Level Button No group at the lower right in the above illustration, press
the selected level for switching.
To Next Page
