Chapter 2 Menus and Control Panel
90
Names and Functions of Parts of the Control Panel
b Menu display
This shows the menu currently in use.
c Knobs
These adjust the parameter values
appearing in the menu.
d User preference buttons
These recall the functions or menus
assigned to them in the Setup menu.
In the default setup, nothing is assigned to
the [PREFS 1] to [PREFS 7] buttons.
It is also possible to change the assignment
of these buttons in setup.
For details, see “Overall Control Panel
Settings (Config Menu)” in Chapter 19
(Volume 3).
PREFS 8 button: When this button is on,
control of an editor from the Remote1
port on the rear panel of the switcher is
possible. However, even when it is off,
control of the Edit PVW bus is always
possible.
Memory Card/USB Adaptor Block
a Memory card slot
This slot accepts a PCMCIA Type II
compliant memory card. You can use it in
software installation, and for saving and
reading in data, such as snapshot, keyframe,
effect, and setup data.
b DEVICE connectors
There are three USB connectors.
You can connect a device such as a mouse,
keyboard, USB storage, and so on, that is
equipped with a USB interface to any of
these connectors.
For details on the devices that can be
connected, consult your Sony
representative.

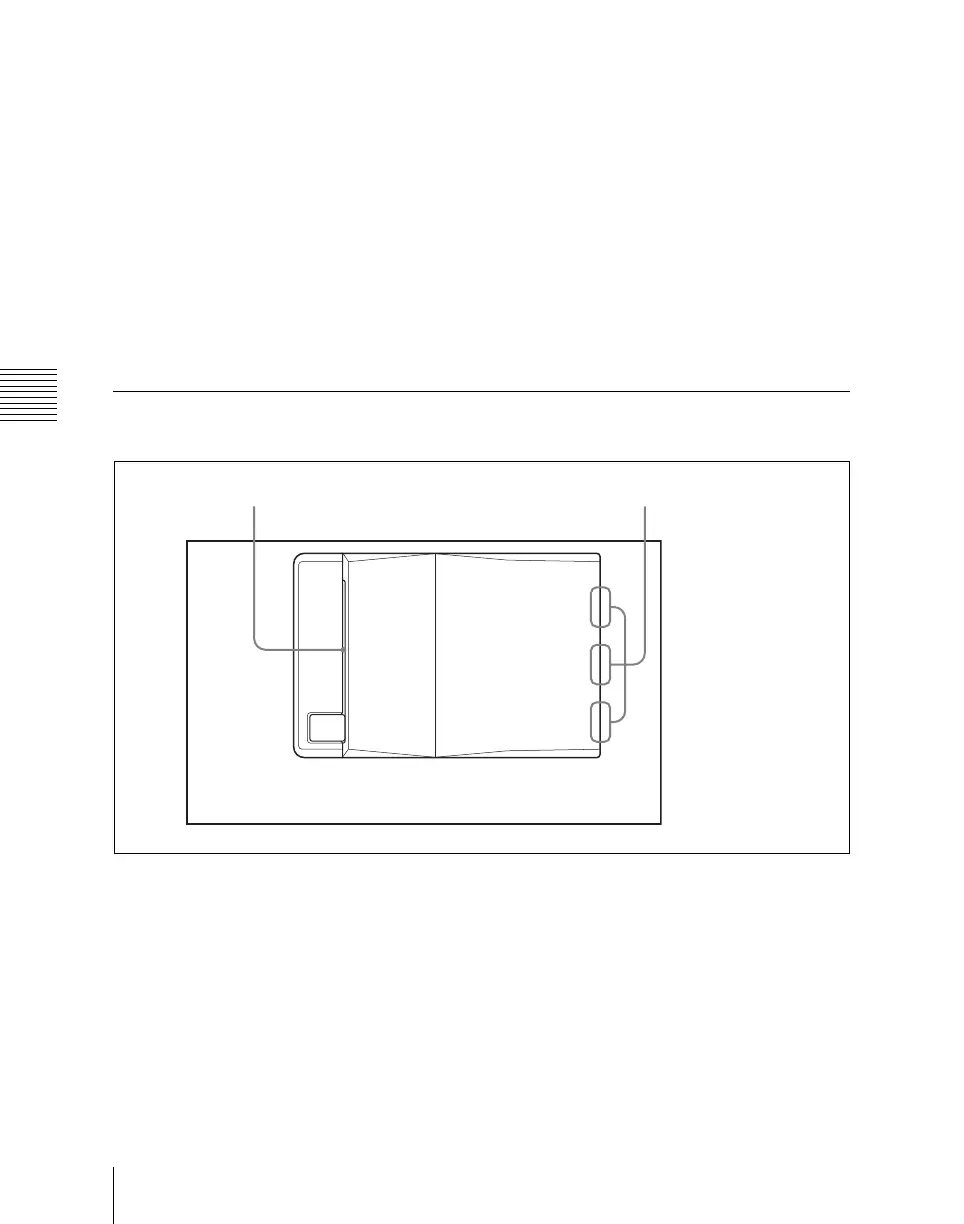

1 Memory card slot 2 DEVICE connectors
