Chapter 19 Control Panel Setup (Panel)
1160
Operation Settings (Operation Menu)

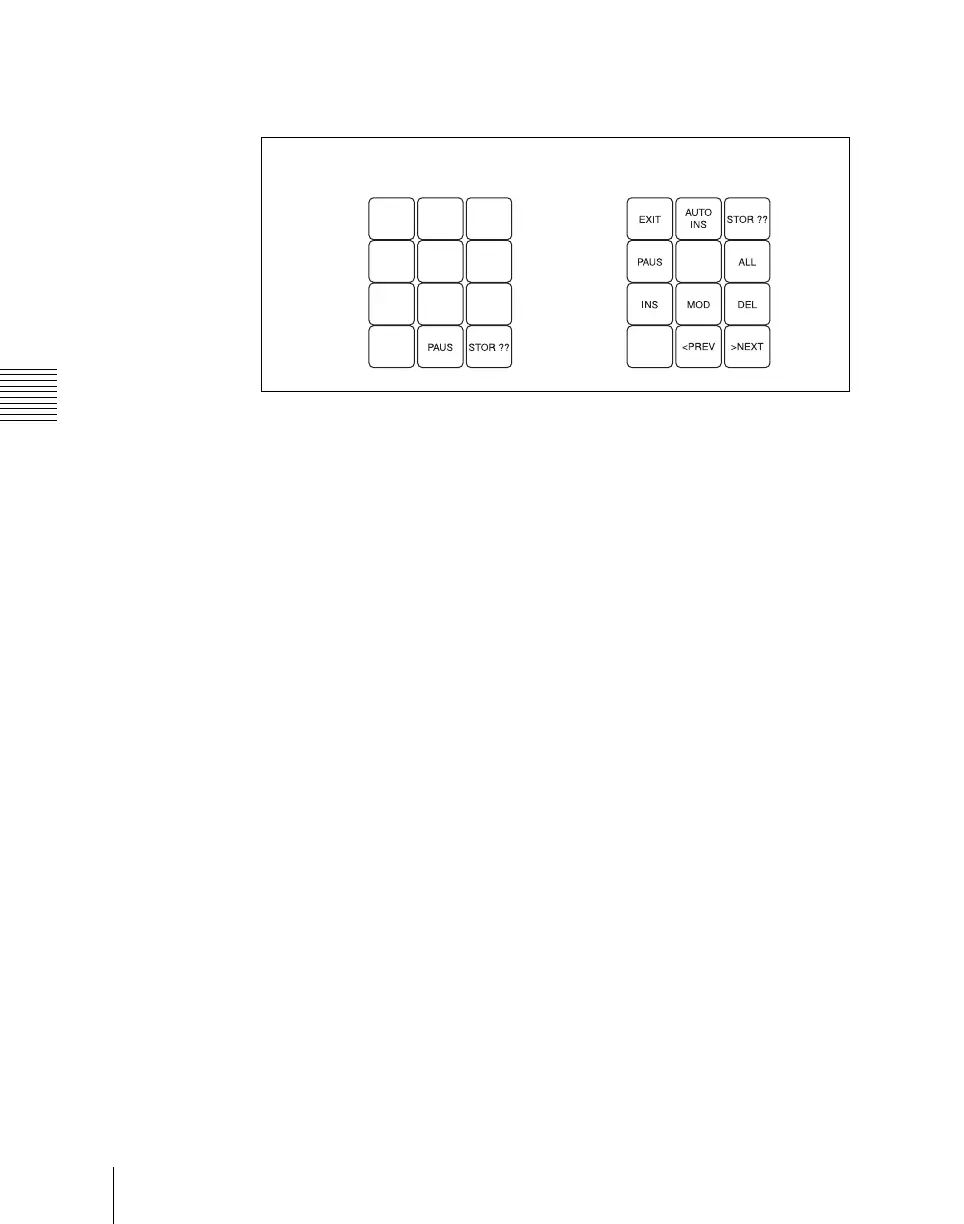

This enables the standard type Flexi Pad control block to be used for macro
editing. Depending on the macro editing mode setting, functions are
assigned to the memory recall buttons as shown in the following figure.
4
When making a macro attachment setting, select whether or not to enable
cross-poi
nt button op
erations in th
e <Attachment Sett
ing Mode> grou
p.
With Btn Function: enable cross-point button operations
W/o Btn Function: disable cross-point button operations
5
Using the <Macro 2nd Recall Mode> group, set the action to occur during
macro execution or when a macro is stopped, if the cross-point button with
the macro attachment set is pressed again.
Continue: Execution of a macro that has been stopped is resumed, and an
executing macro continues.
Cancel: A stopped macro, or a macro during execution is terminated.
6
Using the <Macro Recall Override> group buttons, set the action to occur
during macro execution or when a macro is stopped, if another macro is
recalled.
Disable: Ignore the other macro recall.
Enable: Execute the other macro.
To have a cross-point button with a macro attachment set lit
continuously
Press [Attchd Btn Indication], turning it on.
When the [MCRO ATTCH ENBL] button in the cross-point control block is
on, the cross-point button with a macro attachment is constantly lit green.
When the setting is
[Pause Only]
When the setting is
[Full Editing]
