Chapter 2 Menus and Control Panel
85

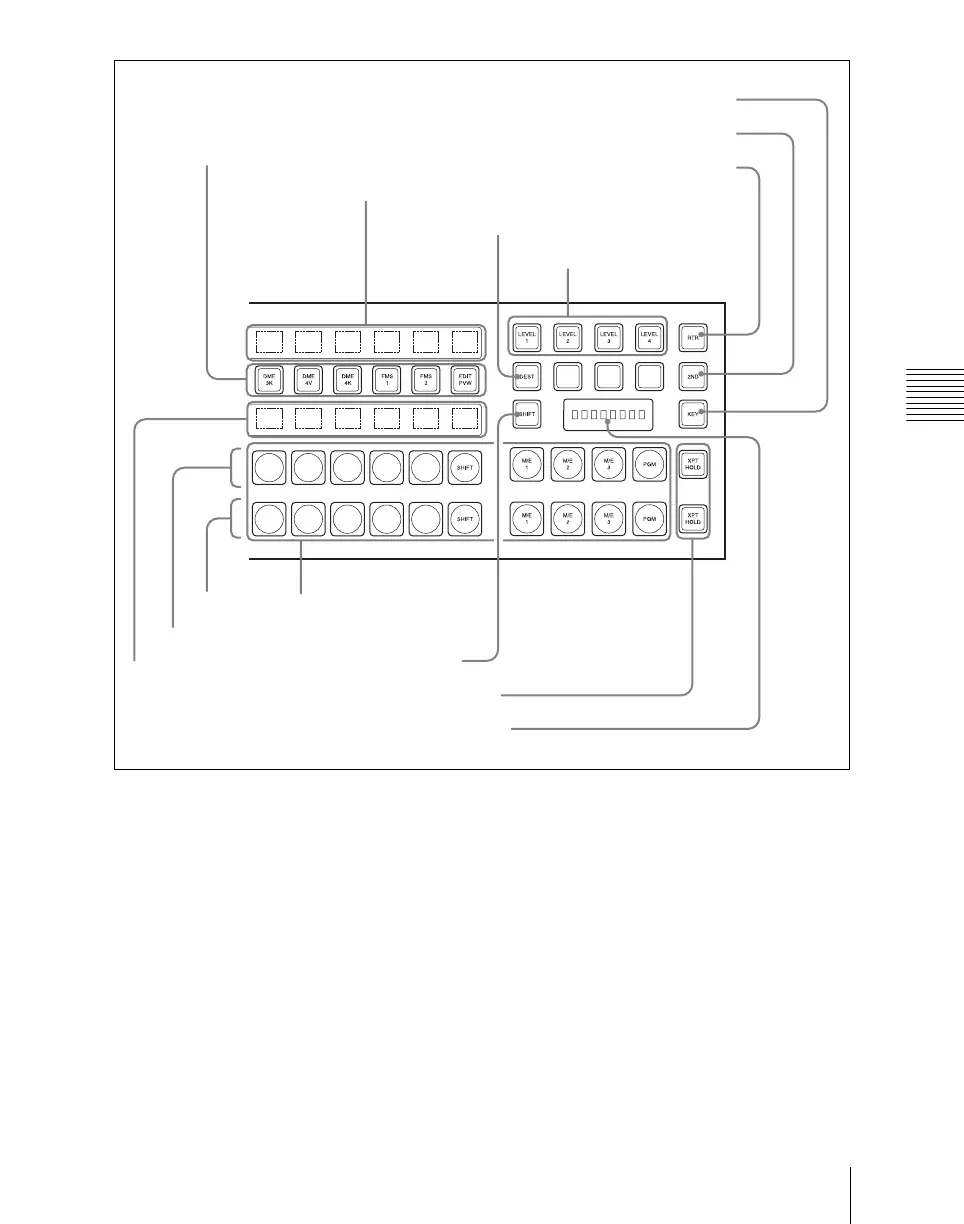

Names and Functions of Parts of the Control Panel
a AUX delegation buttons
Press one of these buttons, turning it on, to
select the bus to which to assign the cross-
point buttons in the auxiliary bus control
block.
For buses that can be selected, see “Bus
Selection” (page 147).
b Selected source name displays
These show the name of the currently
selected signal (source) on the bus
corresponding to the delegation button.
c DEST (destination) button
Press this button, turning it on, to display
the names of buses allocated to the
delegation buttons in the selection source
name displays.
In the case of a module without selected
source name displays, this button is invalid.
d Selected bus display
This shows the name of the bus selected by
the auxiliary bus delegation buttons.
1 AUX delegation buttons
2 Selected source name displays
3 DEST button
qs Level selection buttons
7 KEY button
8 2ND button
qa RTR button
0 SHIFT button
6 XPT HOLD buttons
4 Selected bus display
5 Cross-point buttons
9 Source name displays
2nd
1st
