CONTROL SYSTEM
ADJUSTING THE THROTTLE CONTROL
CABLES (F6AMH/F6MH, F6BMH,
F8CMH/F8MH)
NOTE:
Before adjusting the throttle control cables,
make sure that the shift control cable is
properly adjusted (for long handle model
only)
1. Check:
 Throttle control cables
Damage
 Replace.
Excessive slack or the stoppers do
not contact each other
 Adjust.
2. Adjust:
 Throttle control cables
Adjusting steps:

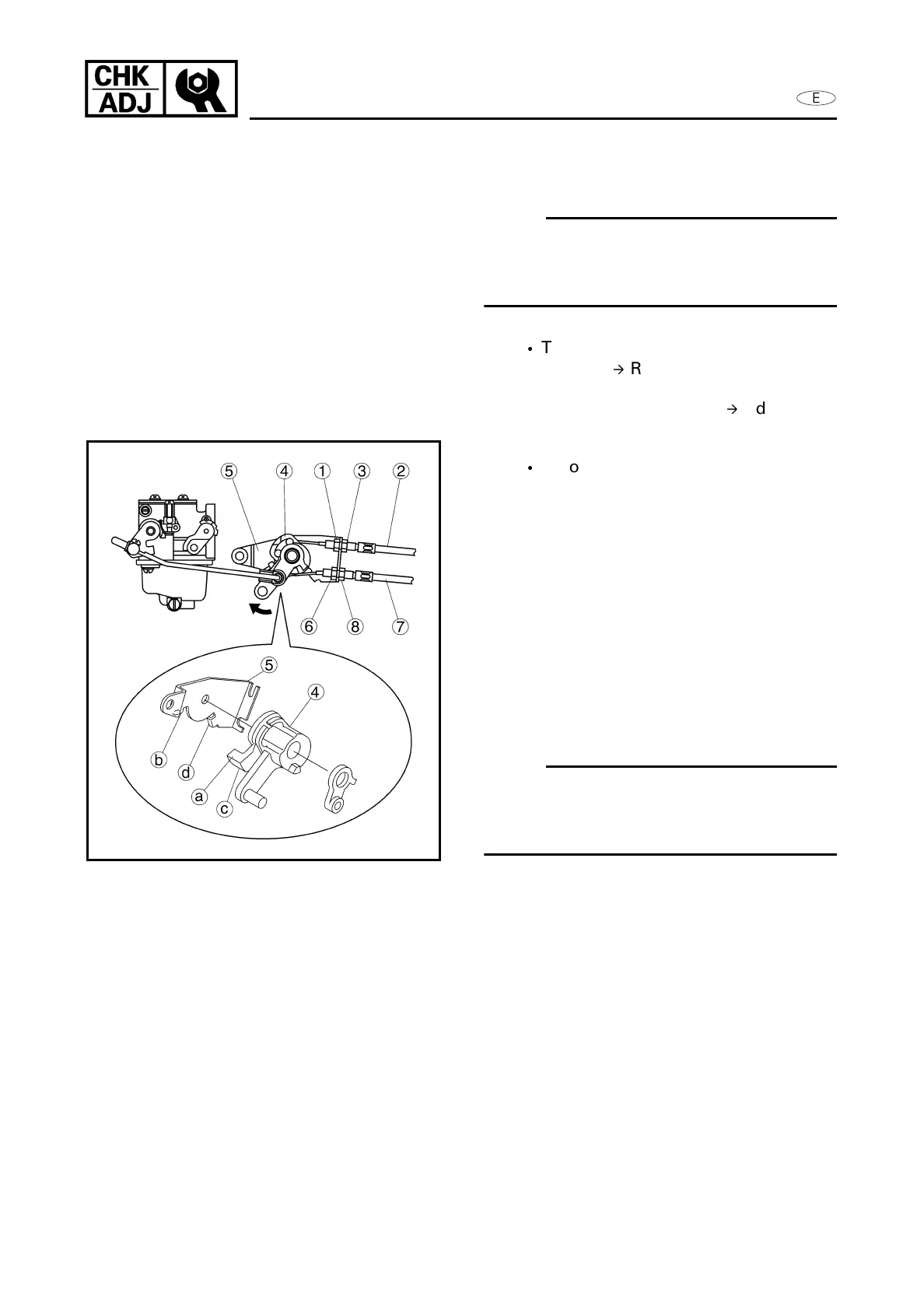

(1)Turn the throttle grip to the fully-
opened position.
(2)Loosen the locknut 1.
(3)Adjust the length of the throttle wire 2
with the adjusting nut 3 until the
stopper portion
a
on the pulley 4
contacts the stopper portion
b
on the
throttle wire stay 5.
(4)Tighten the locknut 1.
(5)Loosen locknut 6.
(6)Adjust the length of the throttle wire 7
with the adjusting nut 8.
NOTE:
Adjust the length so that there is no
clearance between the drum hole of pulley
4 and the drum at the tip of decelerator
cable 7.
(7)Tighten the locknut 6.
(8)Fully open and close the throttle grip
and make sure the stopper portion
a
contacts the stopper portion
b
(at the
fully opened position), and the stopper
c
portion contacts the stopper portion
d
(at the fully-closed position).
If proper contact is not made, repeat
the above procedure.
