POWER UNIT

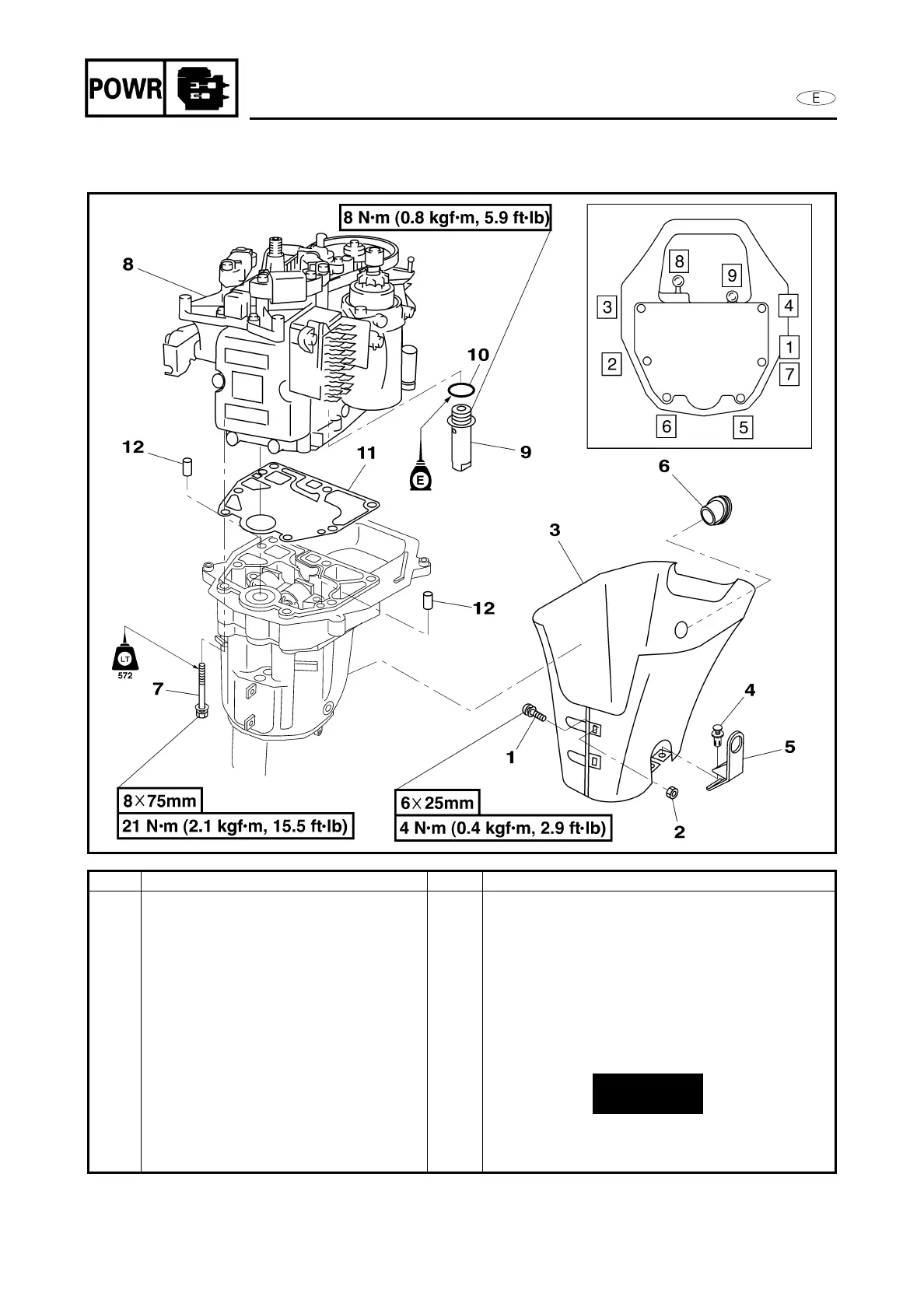

REMOVING/INSTALLING THE POWER UNIT

Step Job/Part Q'ty Remarks

1 Screw (with washer) 2

2Nut 2

3Apron 1

4Plug 2

5Apron 1

6 Rubber seal 1

7 Bolt (with washer) 6

8 Power unit 1

9 Relief valve assembly 1

10 O-ring 1 12.0 x 1.8 mm

Not reusable

11 Gasket 1

Not reusable

12 Dowel pin 2

For installation, reverse the removal

procedure.

5-18
