PROPELLER SHAFT HOUSING AND PROPELLER
SHAFT
CHECKING THE PROPELLER SHAFT
HOUSING
1. Clean:
ī
Propeller shaft housing (with a soft
brush and solvent)
2. Check:
ī
Propeller shaft housing
Cracks/damage
ī
Replace.

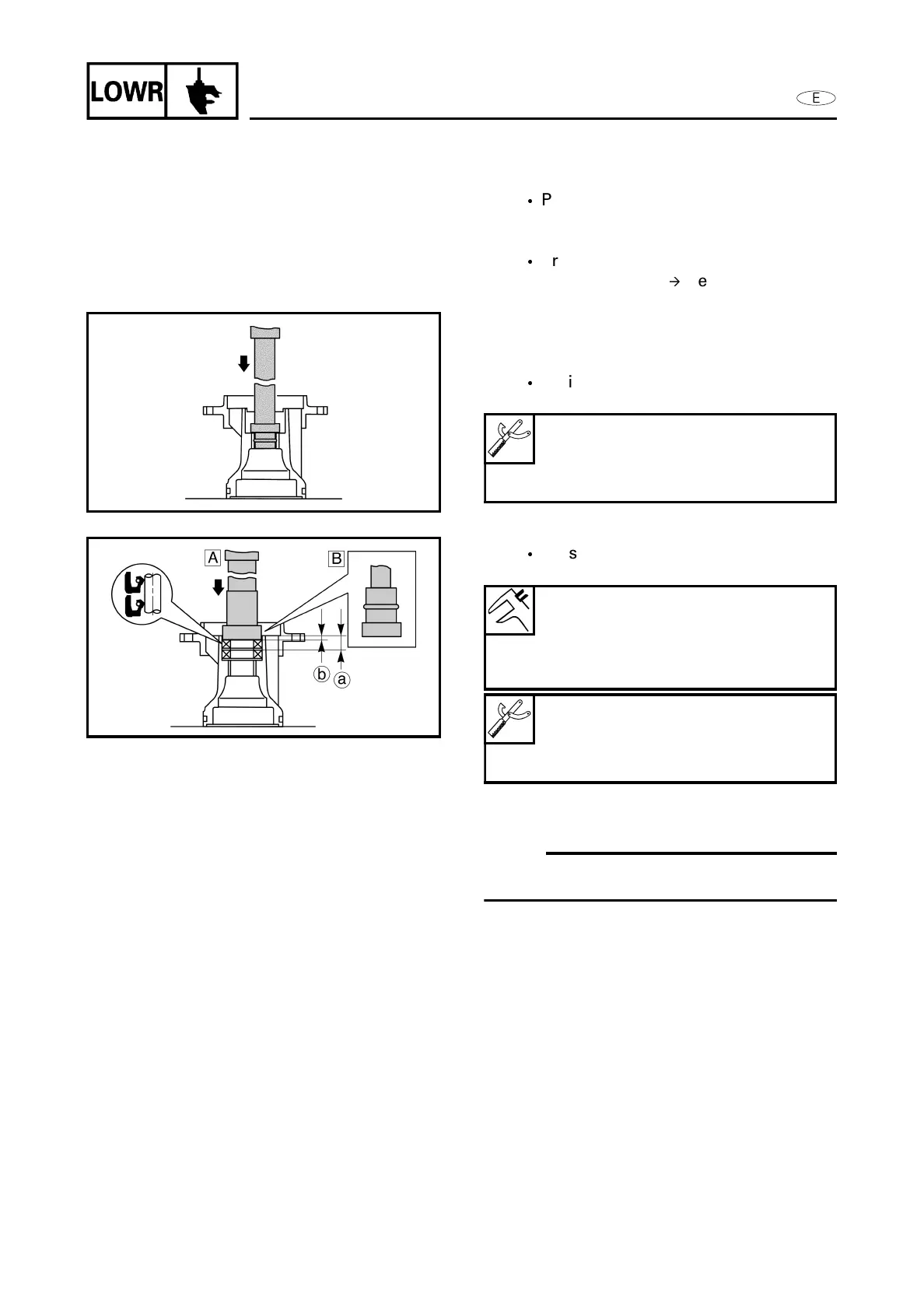

ASSEMBLING THE PROPELLER SHAFT
HOUSING ASSEMBLY
1. Install:
ī
Solid bushing
2. Install:
ī
Oil seal
A For USA and Canada
B Except for USA and Canada
NOTE:
Check the mounting depth of each oil seal
and press fit.
Driver rod:
YB-06229/90890-06652
Attachment:
YB-06230/90890-06617
Oil seal mounting depth:
a
: 10.0 - 10.5 mm
(0.393 - 0.413 in)
b
: 3.0 - 3.5 mm
(0.118 - 0.138 in)
Driver rod:
YB-06071/90890-06605
Attachment:
YB-06112/90890-06614
6-15
