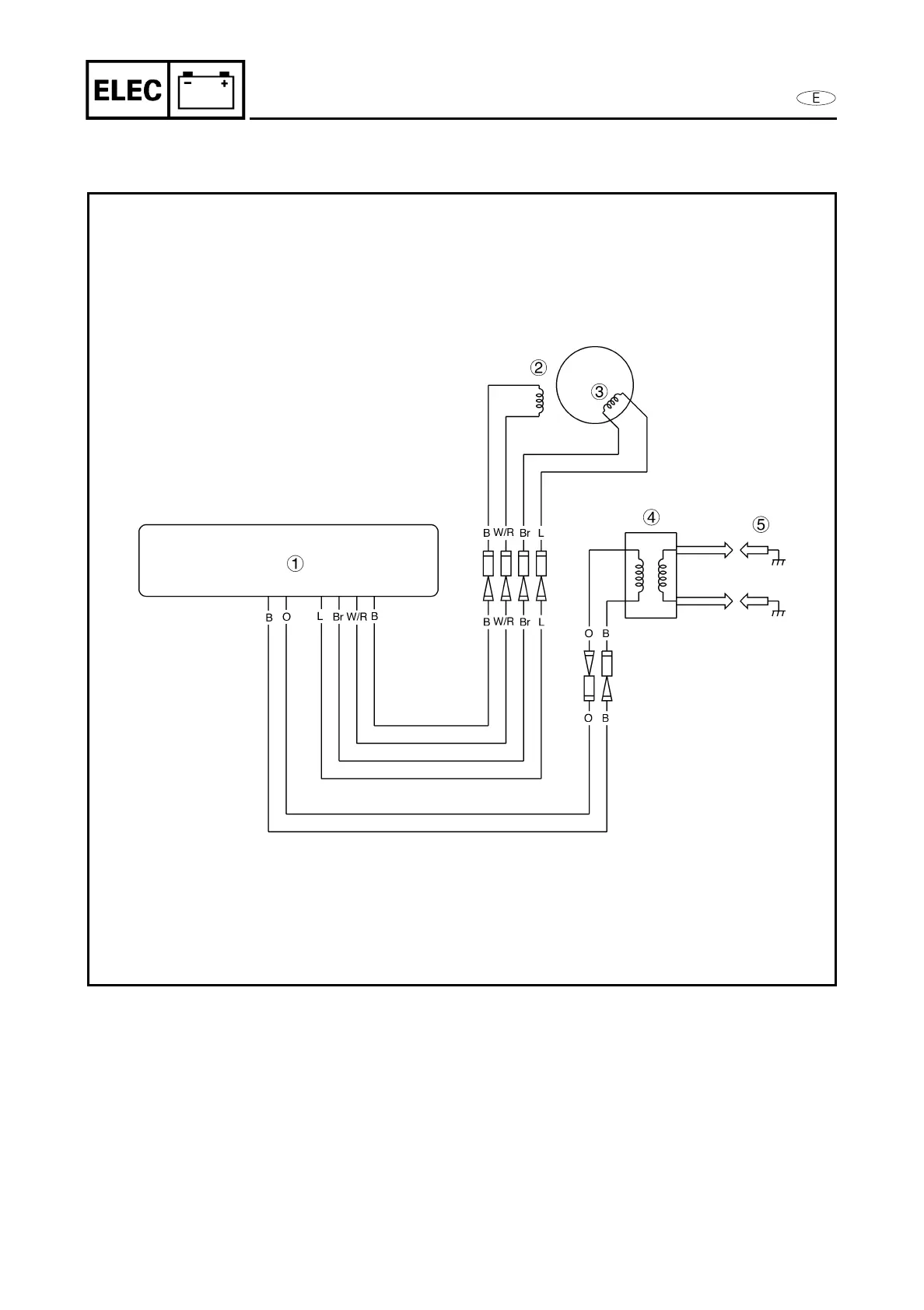

IGNITION SYSTEM

IGNITION SYSTEM

1 CDI unit

2 Pulser coil

3 Charge coil

4 Ignition coil

5 Spark plug

B: Schwarz

W/R: Weiß/Rot

Br: Braun

L: Blau

O: Orange

8-9
