PROPELLER SHAFT HOUSING AND PROPELLER
SHAFT
CHECKING THE DOG CLUTCH
Check:
ī
Clutch dog
Wear/damage
ī
Replace.
CHECKING THE PROPELLER SHAFT
Check:
ī
Propeller shaft
Wear/damage
ī
Replace.

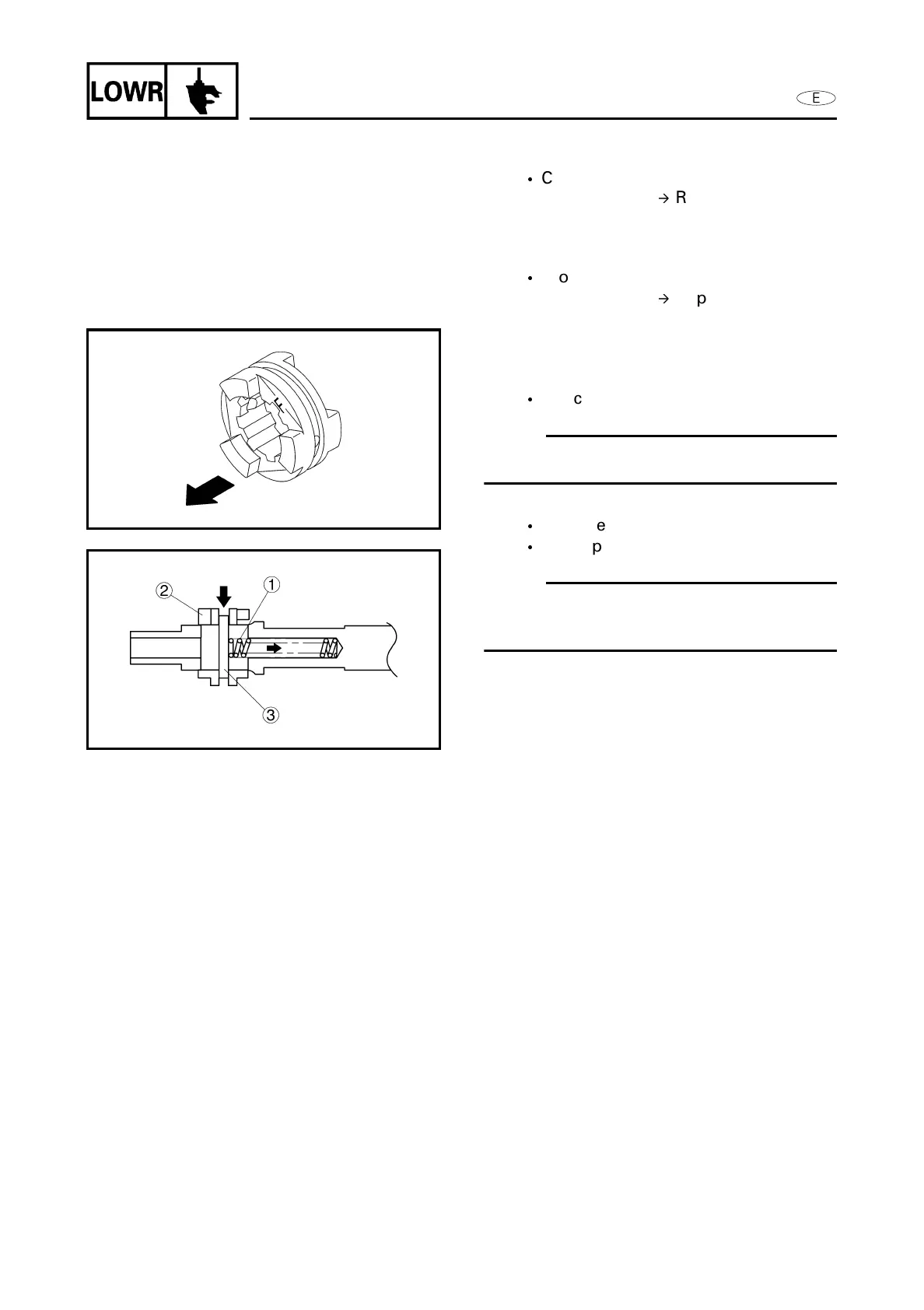

ASSEMBLING THE PROPELLER SHAFT
ASSEMBLY
1. Install:
ī
Clutch dog
NOTE:
Install the clutch dog with āFā mark
towards the forward gear side.
2. Install:
ī
Compression spring 1
ī
Cross pin 3
NOTE:
Compress the compression spring 1 so
that it is behind the cross pin hole in clutch
dog 2, then install cross pin 3.
6-12
