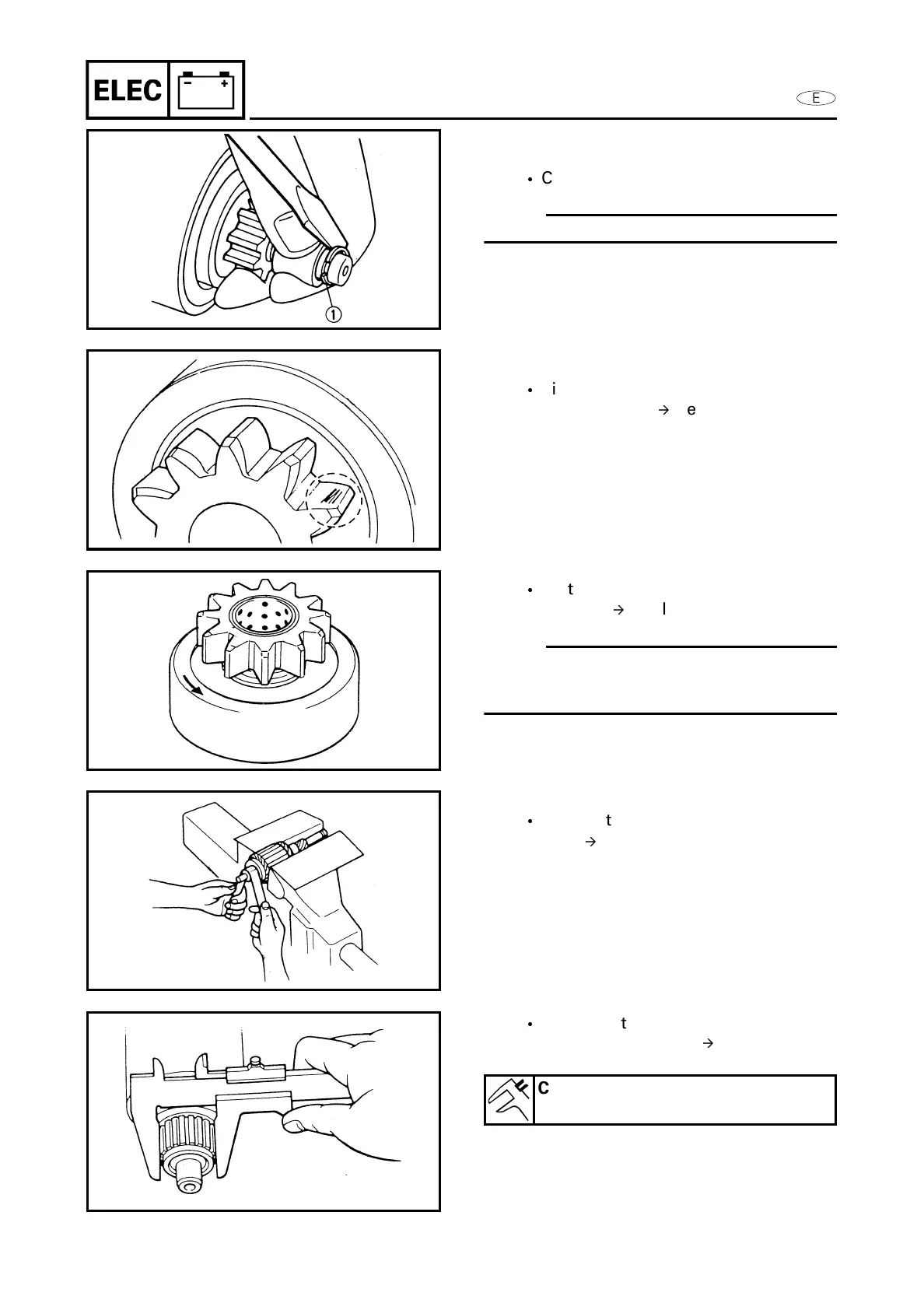

STARTER MOTOR (F8CW)
REMOVING THE PINION
Remove:
ī
Clip 1
NOTE:
Using a pry-bar, pry off the clip.
CHECKING THE PINION
1. Check:
ī
Pinion teeth
Wear/damage
ī
Replace.
2. Check:
ī
Clutch movement
Damage
ī
Replace.
NOTE:
Rotate the pinion clockwise, and check that
it freely. Also try to rotate the pinion
counterclockwise and confirm that it locks.
CHECKING THE ARMATURE
1. Check:
ī
Commutator
Dirty
ī
Clean (with #600 abrasive
paper).
2. Measure:
ī
Commutator diameter
Out of specification
ī
Replace
Commutator diameter limit:
29.0 mm (1.14 in)
8-22
