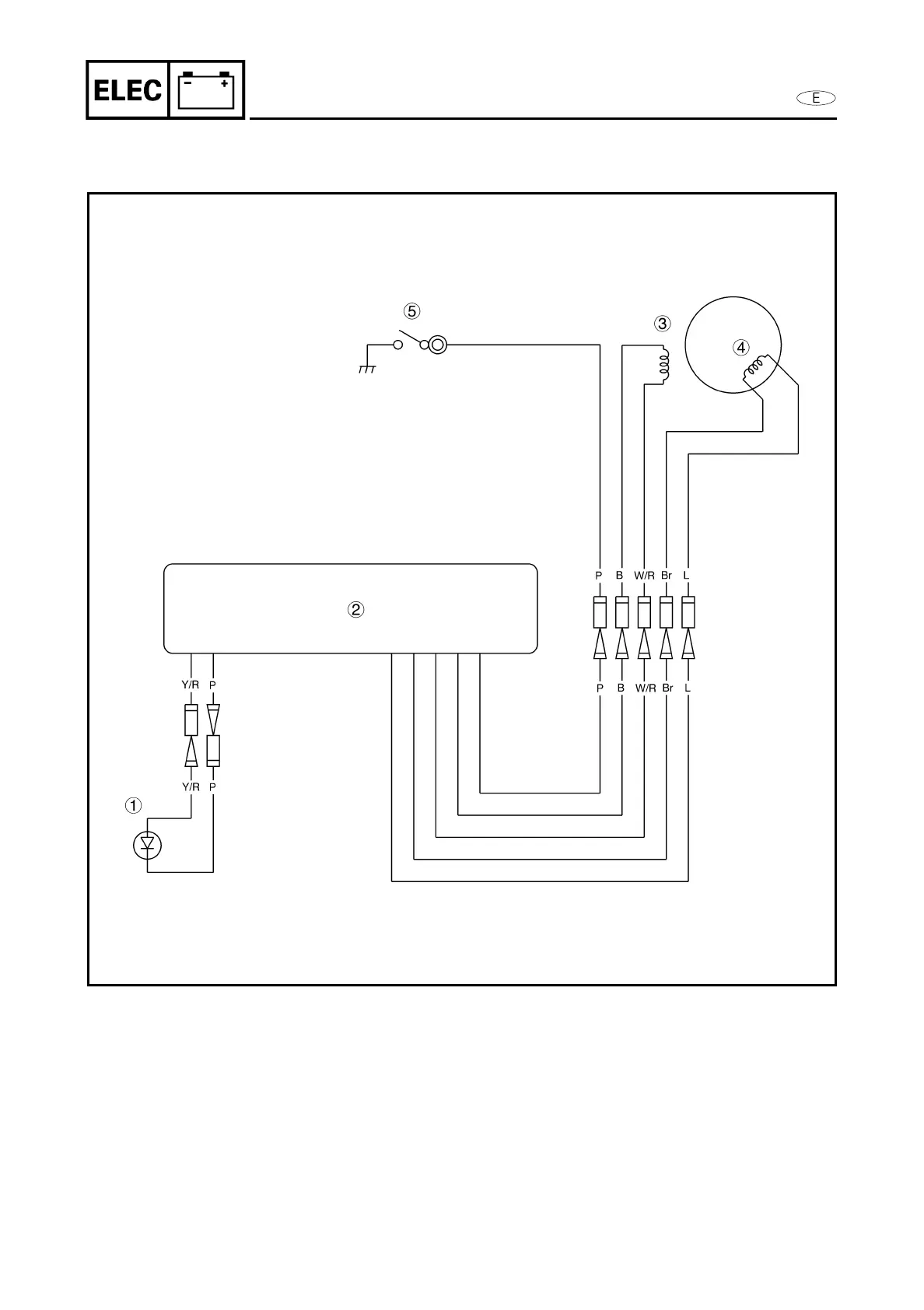

IGNITION CONTROL SYSTEM
IGNITION CONTROL SYSTEM
1 Emergency signal light
2 CDI unit
3 Pulser coil
4 Charge coil
5 Oil pressure switch
Y/R: Yellow/Red
P: Pink
B: Black
W/R: White/Red
Br: Brown
L: Blue
