Yamaha F6AMH - Disassembling the Manual Starter

MANUAL STARTER
DISASSEMBLING THE MANUAL
STARTER

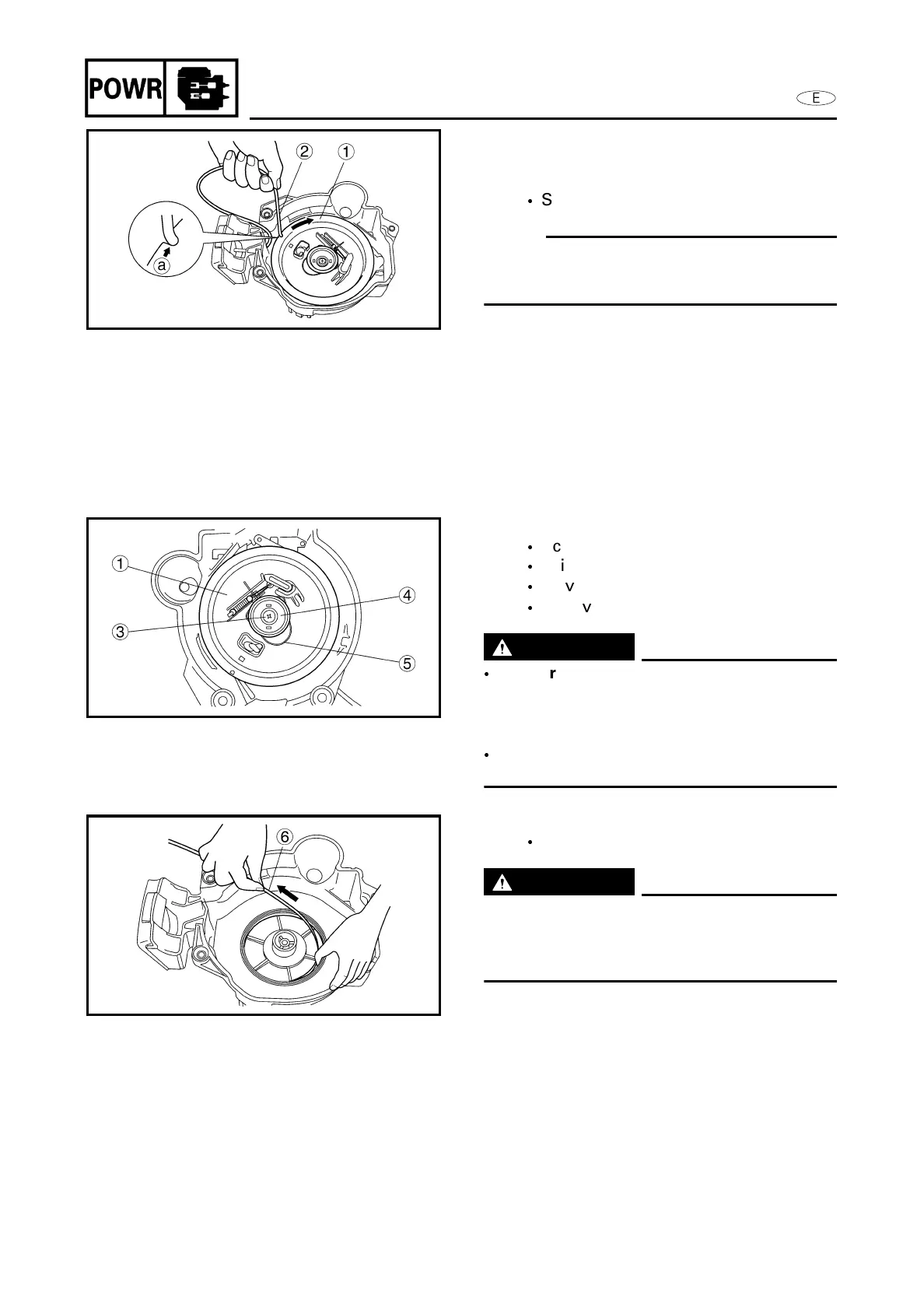

1. Rotate:
 Sheave drum 1
NOTE:
Before removing the drive plate and drive
spring, turn the sheave drum to make the
starter spring inside the sleeve drum free.
Rotating steps:
(1)Turn the sheave drum 1 so that the
cutaway
a
on the outer surface of the
sheave drum faces toward the starter
handle.
(2)Pass the starter wire 2 through the
cutaway
a
.
(3)Turn the sheave drum 1 clockwise
until the starter spring is free.
2. Remove:
 Screw 3
 Drive plate 4
 Drive spring 5
 Sheave drum 1
WARNING
 When removing the sheave drum, be
sure to turn the sheave drum upside
down to prevent the starter spring from
popping up at you.
 Do not leave the sheave drum removed.
The starter spring may pop out.
3. Remove:
 Starter spring 6
WARNING
Be careful so that the starter spring does
not pop out when removing it.
Remove it by allowing it out one turn of
the winding each time.
5-5
