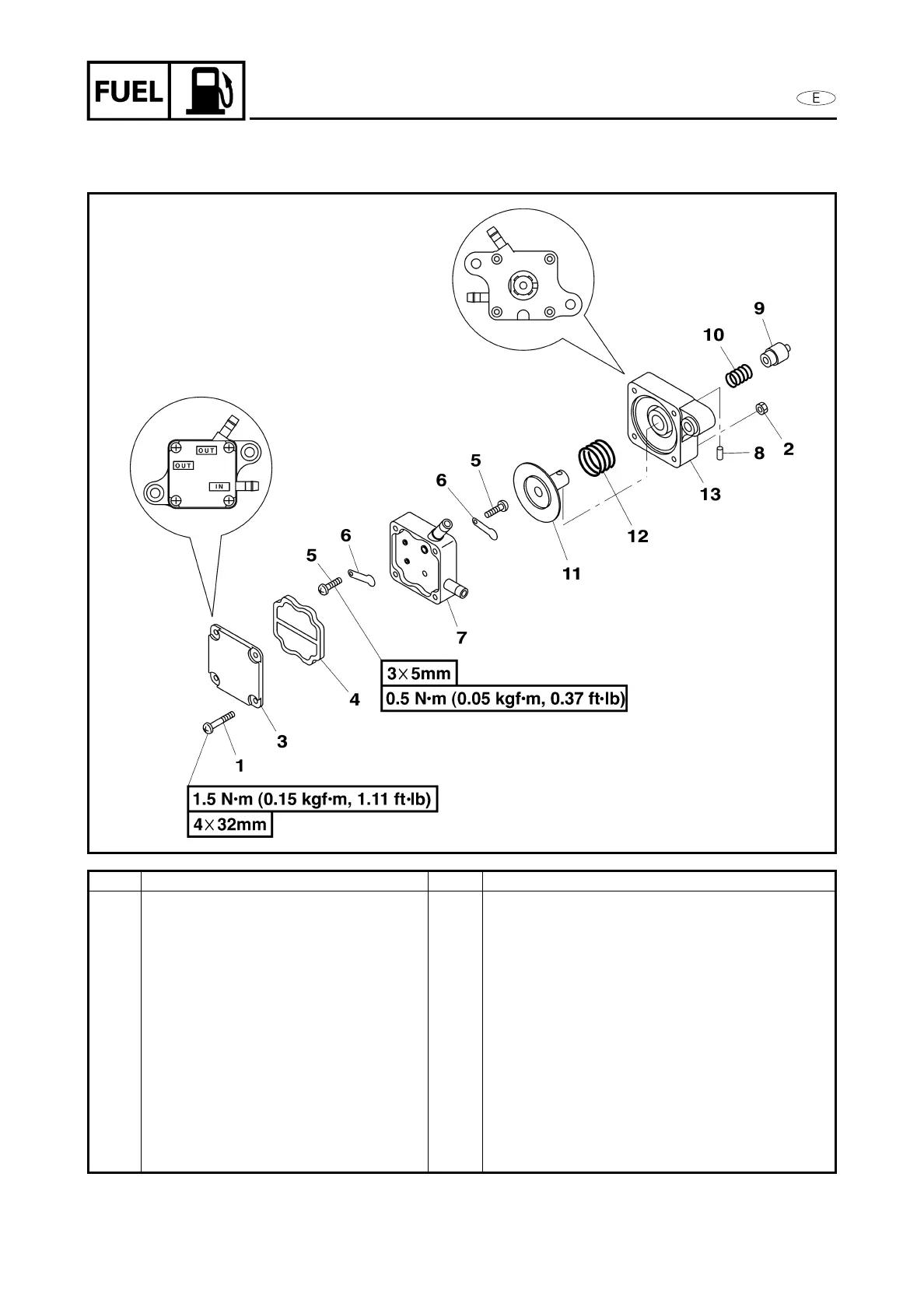

FUEL PUMP

DISASSEMBLING/ASSEMBLING THE FUEL PUMP

Step Job/Part Q'ty Remarks

1Screw 4

2Nut 4

3 Body #3 1

4 Diaphragm 1

5Screw 2

6 Check valve 2

7 Body #2 1

8Pin 1

9 Plunger 1

10 Plunger spring 1

11 Diaphragm 1

12 Diaphragm spring 1

13 Body #1 1 For installation, reverse the removal

procedure.
