CONTROL SYSTEM

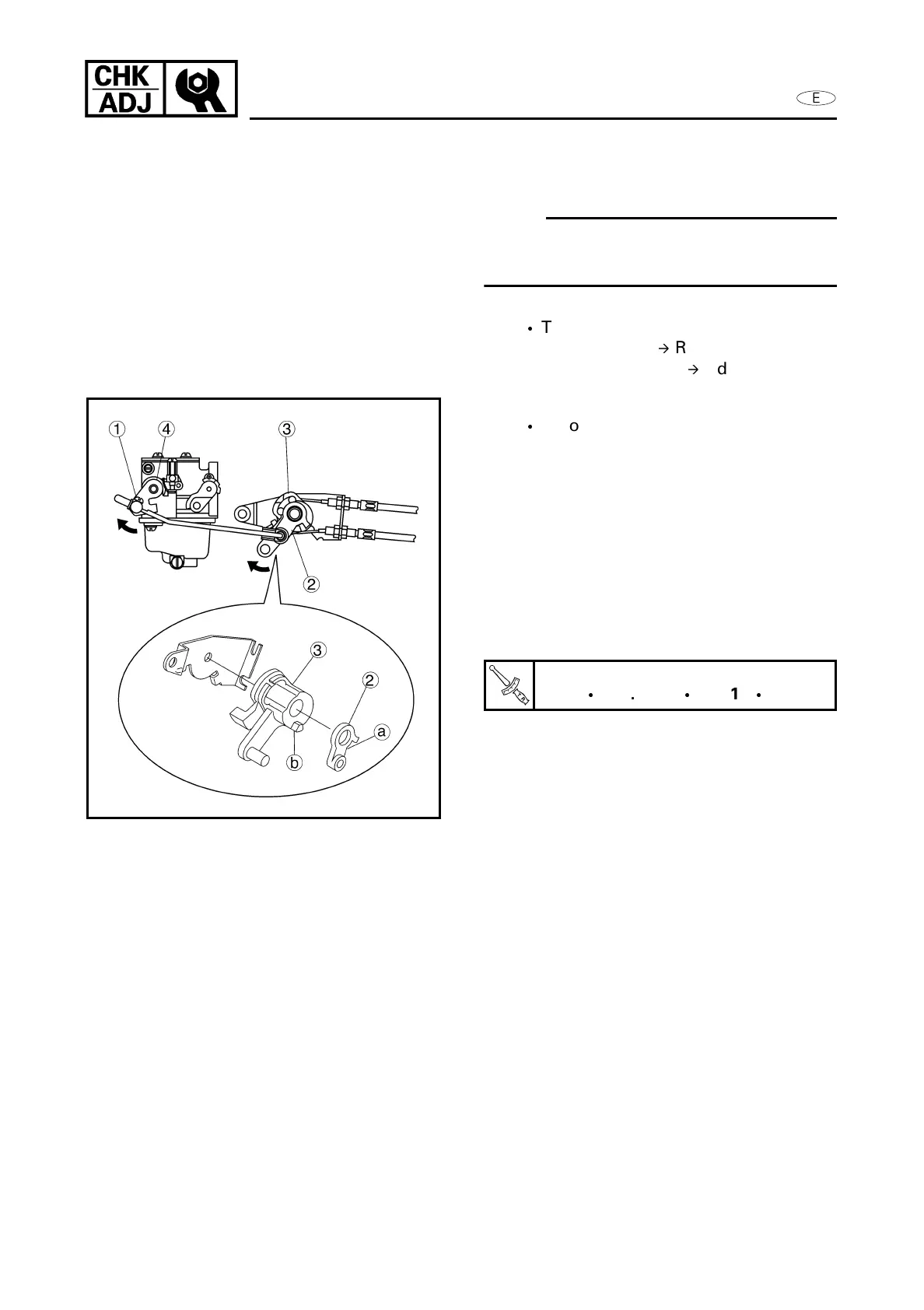

ADJUSTING THE THROTTLE AXLE
LINK (F6AMH/F6MH, F6BMH, F8CMH/
F8MH)
NOTE:
Before adjusting the throttle axle link, make
sure that the throttle control cables is
properly adjusted.
1. Check:
Throttle axle link
Bend/damage
Replace.
Incorrect position
Adjust.
2. Adjust:
Throttle axle link
Adjusting steps:
(1)Loosen lock screw 1.
(2)Turn the throttle grip to the fully open
position.
(3)Hold so that the rear side face
a
of
free axle lever 2 is in contact with the
actuating portion
b
of pulley 3.
(4)Turn throttle link 4 fully clockwise
until it stops, then tighten lock screw
1.
(5)Operate the throttle grip to the fully
open position and fully closed
position, and check that carburetor
throttle link 4 opens and closes fully. If
it does not move properly, carry out
the above procedure again.
Lock screw:
1.5 N
m (0.15 kgf
m, 1.1 ft
lb)
3-8
