POWER UNIT

DISCONNECTING/CONNECTING THE CABLES AND HOSE (SHORT HANDLE OF

F6AMH, F6BMH, F8CMH)

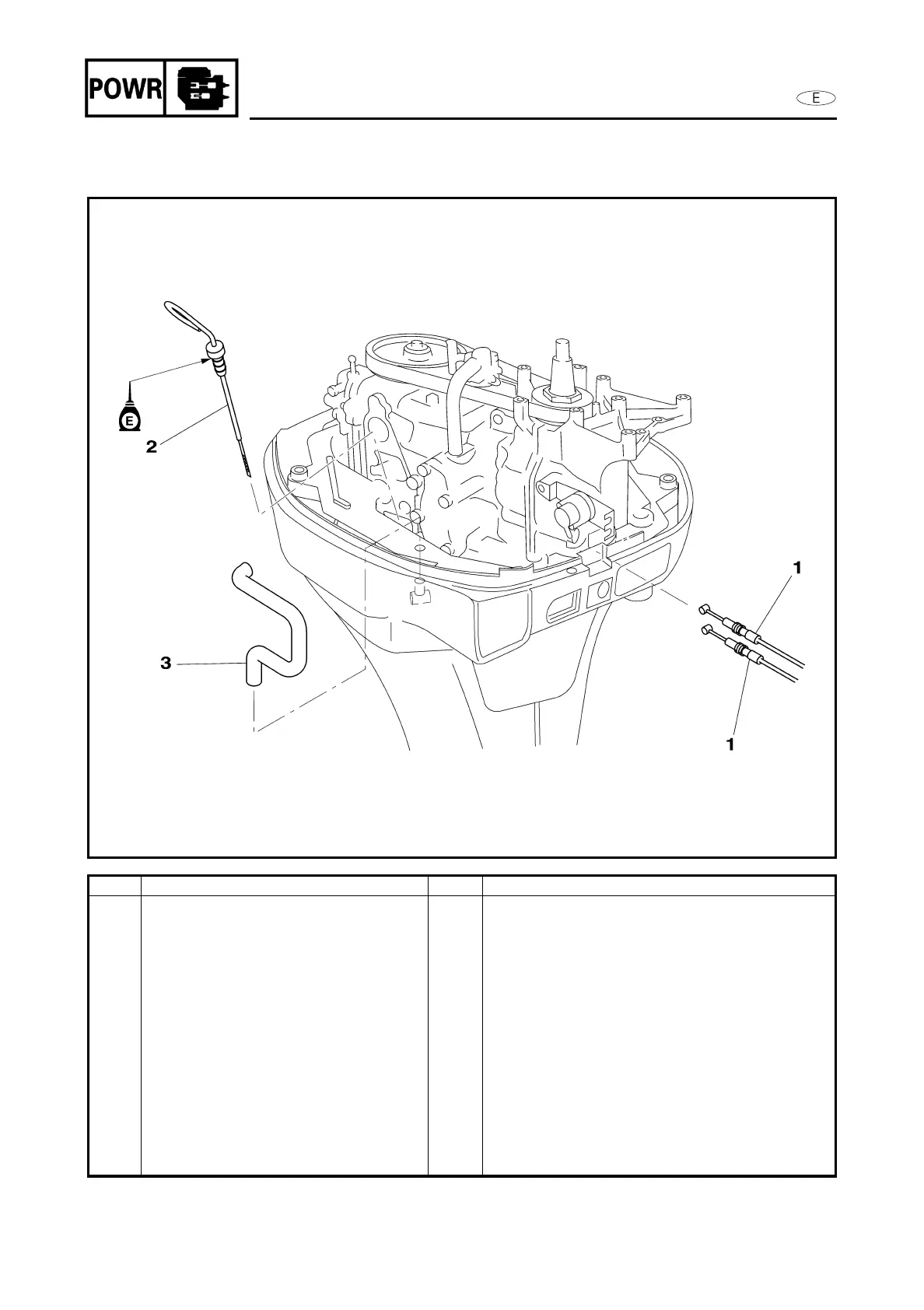

Step Job/Part Q'ty Remarks

Engine oil drain Refer to “REPLACING THE ENGINE OIL” on

page 3-14.

1 Throttle cable 2

2 Oil level gauge 1

3 Water hose 1

For installation, reverse the removal

procedure.
