POWER UNIT

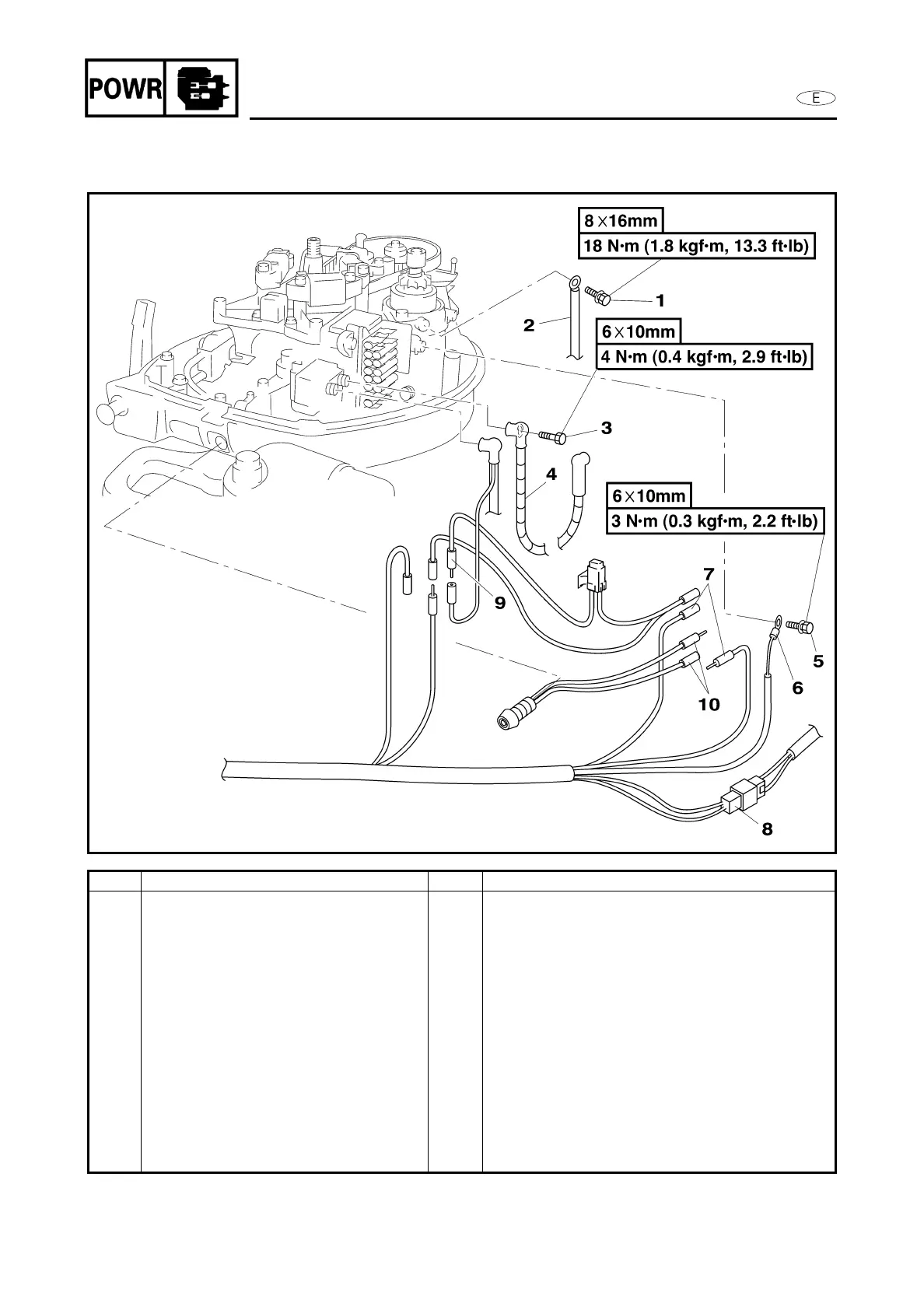

DISCONNECTING/CONNECTING THE ELECTRICAL LEADS (F8CW)
Step Job/Part Q'ty Remarks
1 Bolt (with washer) 1
2 Battery (–) cable 1
3Bolt 1
4 Starter relay – starter motor lead 1
5 Bolt (with washer) 1
6 Remote control harness terminal 1 Black
7 Remote control harness connector 4 Brown, Red, Green, White
8 Remote control harness connector 1 2-pins connector
9 Fuse holder connector 1 Red
10 Emergency signal light connector 2 Yellow/red, Pink
For installation, reverse the removal
procedure.
