IGNITION CONTROL SYSTEM

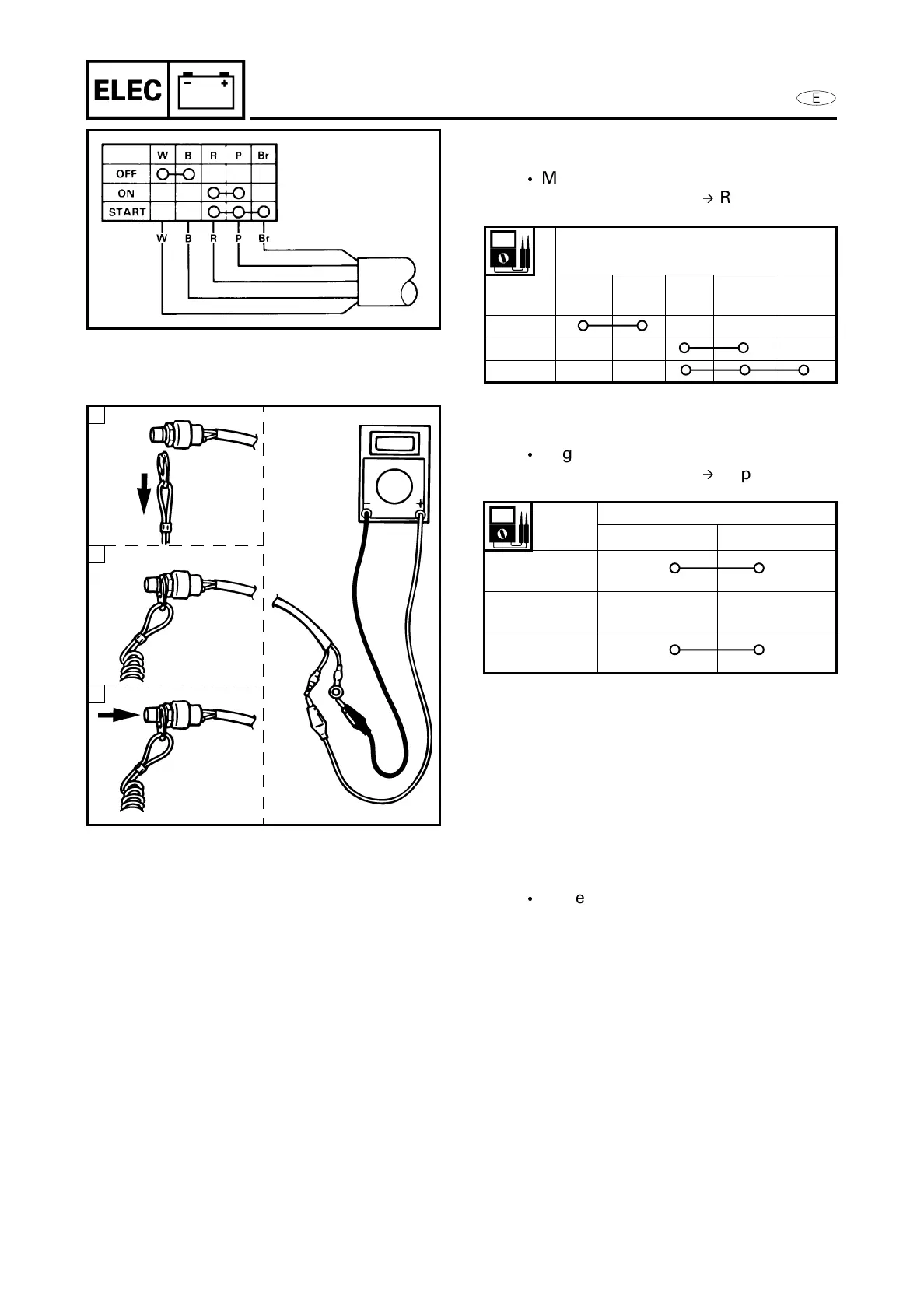

CHECKING THE MAIN SWITCH (F8CW)
Check:
 Main switch continuity
Out of specification
 Replace.
CHECKING THE ENGINE STOP SWITCH
Check:
 Engine stop switch continuity
Out of specification
 Replace.
CHECKING THE PULSER COIL
Check:
 Pulser coil output peak voltage
Refer to “CHECKING THE PULSER
COIL” on page 8-12.
Leads color
Switch
position
White
(W)
Black
(B)
Red
(R)
Yellow
(Y)
Brown
(BR)
OFF
ON
START
Leads color
White (W) Black (B)
Remove the
Lock plate
A
Install the
Lock plate
B
Push the
button
C
B
C
A
8-15
