Yamaha F6AMH Service Manual

WATER PUMP
CHECKING THE WATER PUMP
HOUSING, CARTRIDGE INSERT AND
IMPELLER
1. Check:
 Water pump housing
 Cartridge insert
Cracks/damage
 Replace.
2. Check:
 Impeller
Cracks/damage/wear
 Replace.
CHECKING THE WOODRUFF KEY
Check:
 Woodruff key
Damage/wear
 Replace.

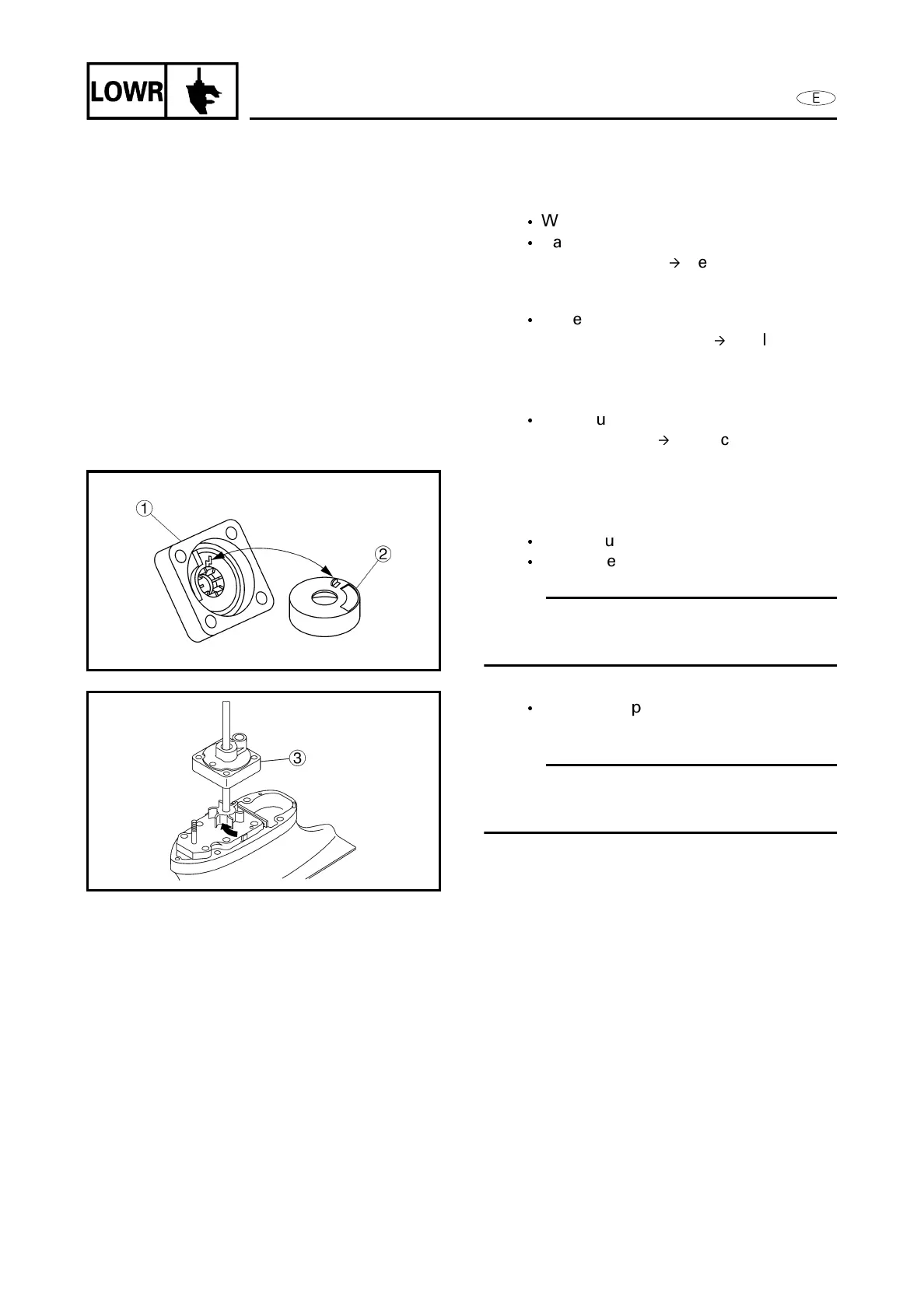

INSTALLING THE CARTRIDGE INSERT
AND WATER PUMP HOUSING
1. Install:
 Water pump housing 1
 Cartridge insert 2
NOTE:
When installing the cartridge insert 2,
align its projection with the hole in the
water pump housing 1.
2. Install:
 Water pump housing and cartridge
insert 3
NOTE:
When installing the water pump housing
and insert cartridge 3, turn the impeller
clockwise.
6-8
