Yamaha F6AMH Service Manual

IGNITION SYSTEM

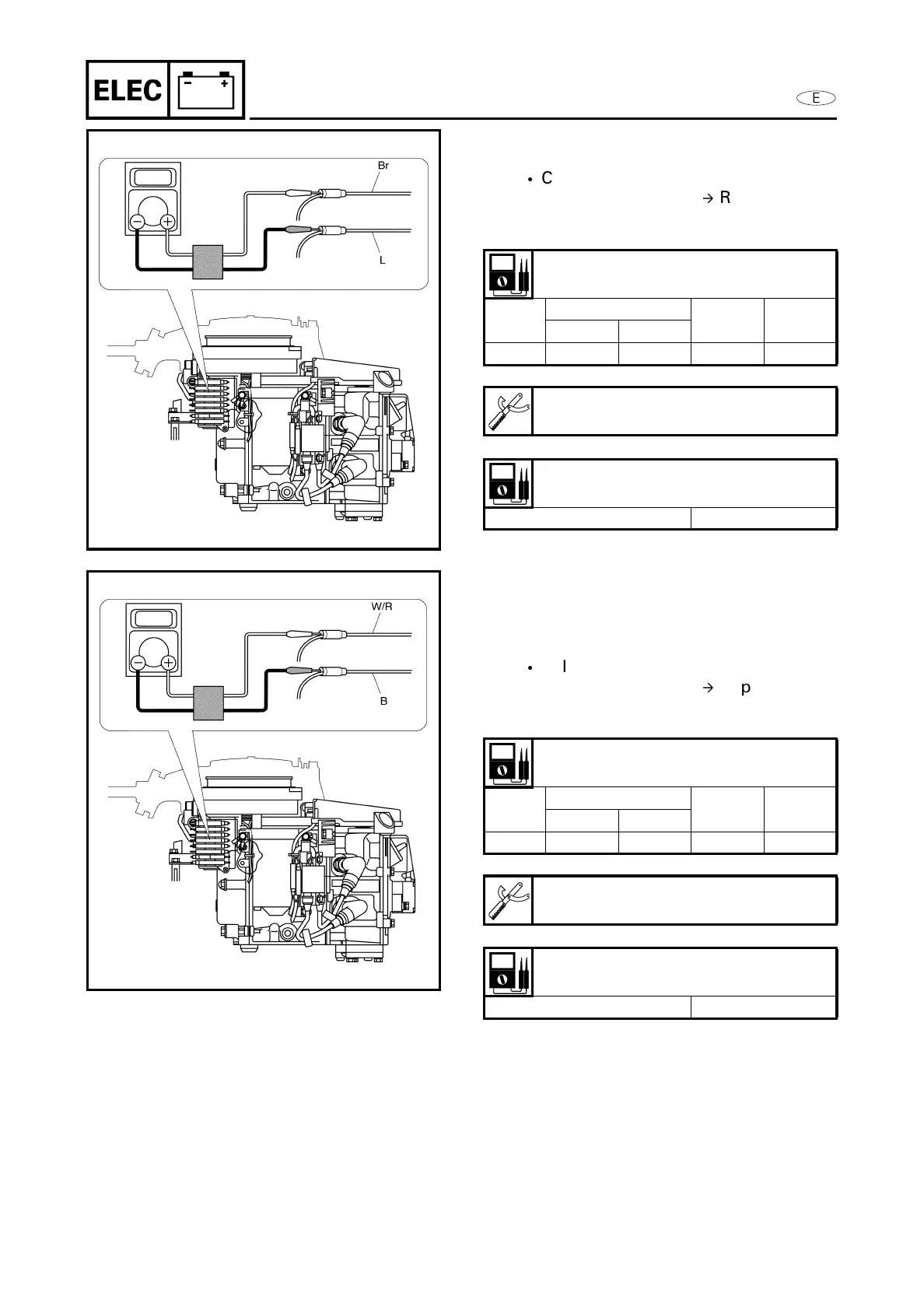

CHECKING THE CHARGE COIL
Measure:
 Charge coil output peak voltage
Below specification
 Replace the
charge coil.
CHECKING THE PULSER COIL
Measure:
 Pulser coil output peak voltage
Below specification
 Replace the
pulser coil.
Charge coil output peak voltage
Brown (Br) - Blue (L)
r/min.
Cranking
1,500 3,500
Opened Closed
D.C.V 112 154 185 185
Peak voltage adaptor:
YU-39991/90890-03172
Charge coil resistance
Brown (Br) - Blue (L)
Reference value 232 - 348
Ω
Pulser coil output peak voltage
White/Red (W/R) - Black (B)
r/min.
Cranking
1,500 3,500
Opened Closed
D.C.V 7.0 3.5 7.0 10.5
Peak voltage adaptor:
YU-39991/90890-03172
Pulser coil resistance
White/Red (W/R) - Black (B)
Reference value 240 - 360
Ω
