INTAKE SYSTEM

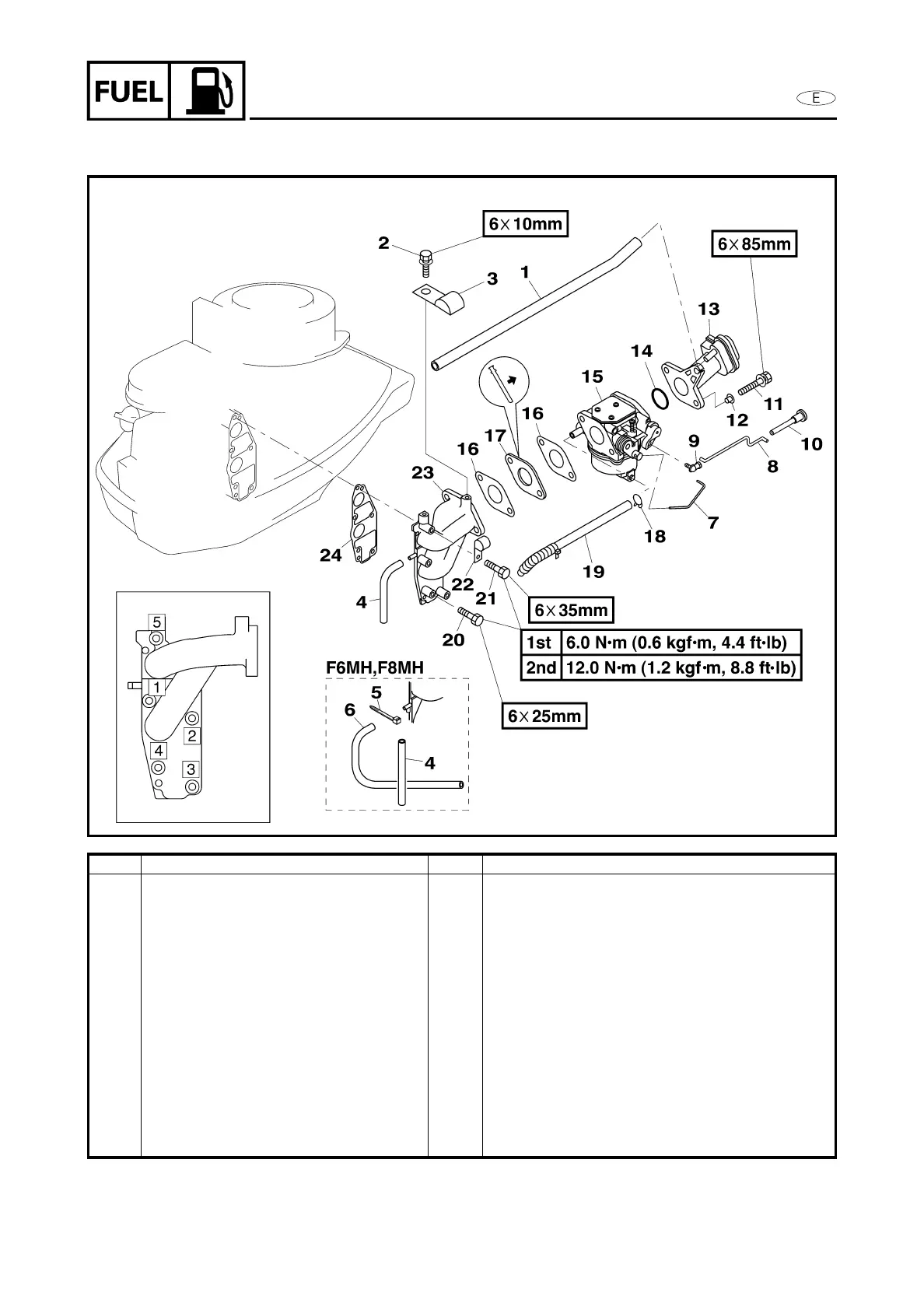

REMOVING/INSTALLING THE INTAKE SYSTEM (F6AMH/F6MH, F6BMH, F8CMH/F8MH)

Step Job/Part Q'ty Remarks

1 Breather hose 1

2 Bolt (with washer) 1

3Clamp 1

4 Water pilot hose 1

5 Clamp 1 (F6MH, F8MH only)

6 Water hose 1 (F6MH, F8MH only)

7 Throttle axle link 1

8 Choke rod 1

9 Link joint 1

10 Choke knob 1

11 Bolt (with washer) 2

12 Coller 2

13 Silensor assembly 1

Continued on next page.

4-5
