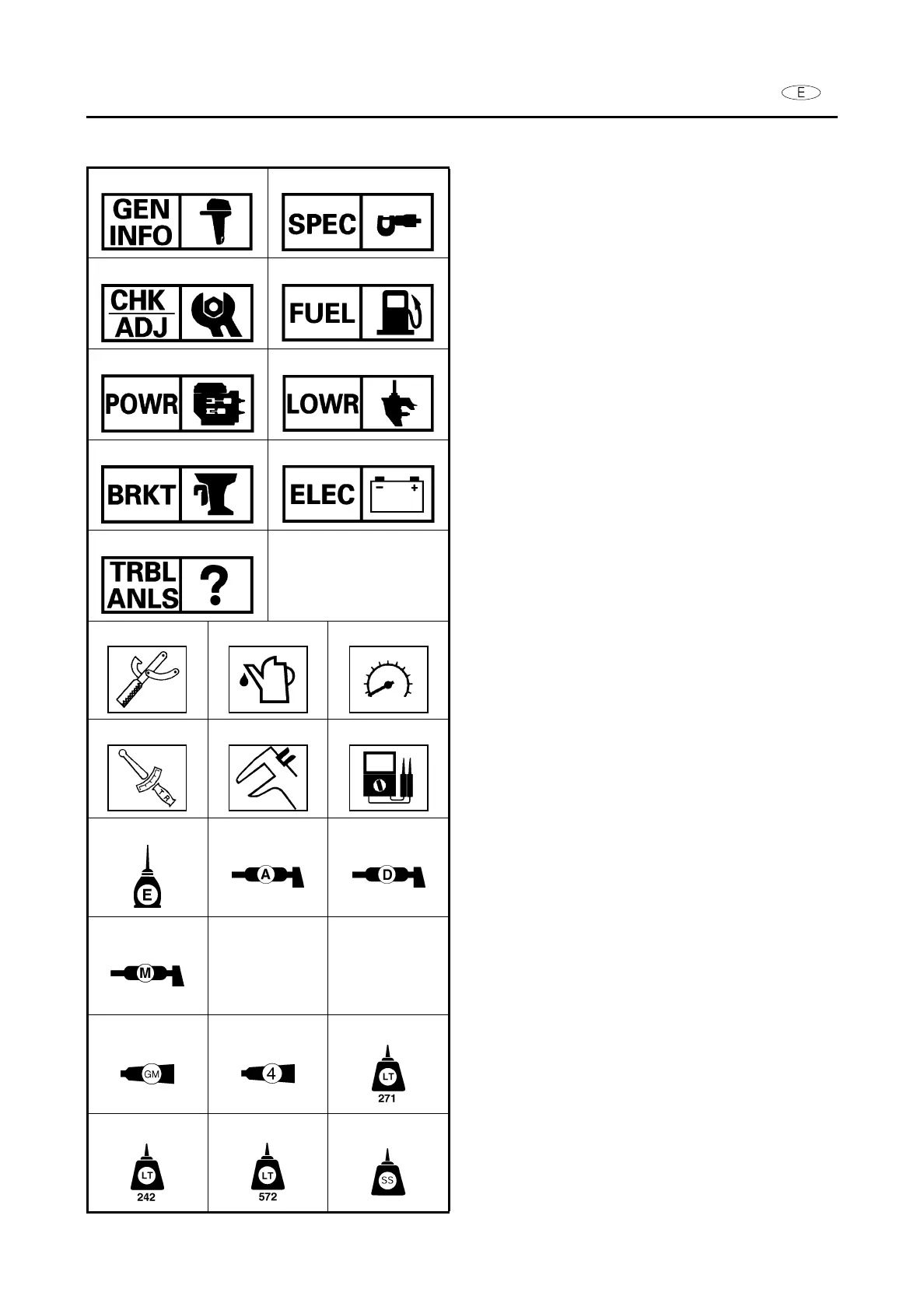

SYMBOLS
Symbols 1 to 9 are designed as thumb-tabs
to indicate the content of a chapter.
1 General information
2 Specifications
3 Periodic check and adjustment
4 Fuel system
5 Power unit
6 Lower unit
7 Bracket unit
8 Electrical system
9 Trouble analysis
Symbols : to E indicate specific data.
> Special tool
A Specified liquid
B Specified engine speed
C Specified torque
D Specified measurement
E Specified electrical value
[Resistance (
Ω), Voltage (V), Electrical
current (A)]
Symbols F to I in an exploded diagram
indicate the grade of lubricant and the
location of the lubricant point.
F Apply Yamaha 4-stroke motor oil
G Apply water resistant grease
(Yamaha grease A, Yamaha marine
grease)
H Apply Yamaha grease D
I Apply molybdenum disufied oil
Symbols J to O in an exploded diagram
indicate the grade of the sealing or locking
agent and the location of the application
point.
J Apply Gasket Maker
®
K Apply Yamabond #4
(Yamaha bond number 4)
L Apply LOCTITE
®
No.271 (Red LOCTITE)
M Apply LOCTITE
®
No.242 (Red LOCTITE)
N Apply LOCTITE
®
No.572
O Apply silicon sealant
12
34
56
78
9
0AB
CDE
FGH
I
JKL
MNO
