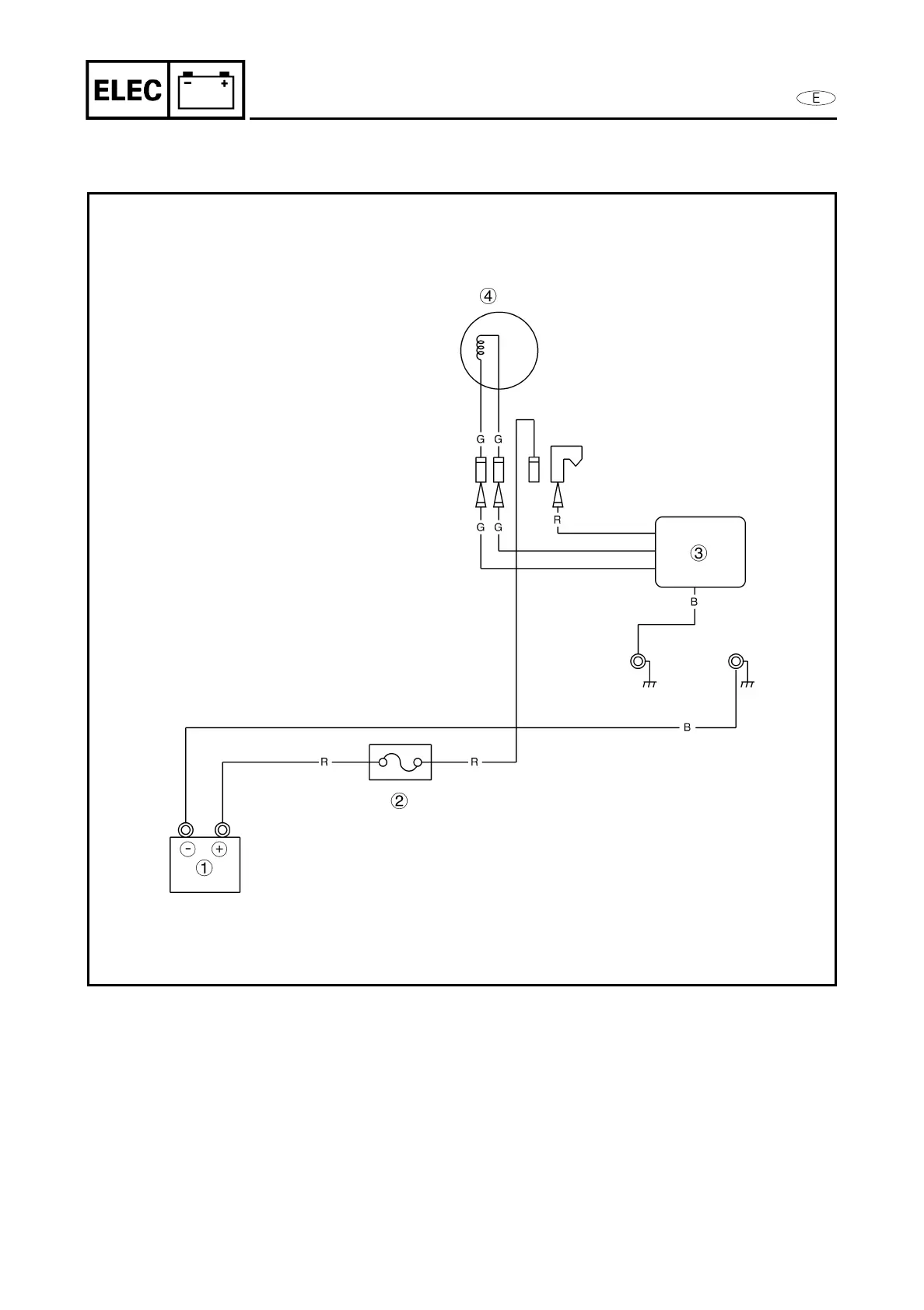

CHARGING SYSTEM

CHARGING SYSTEM

(ONE LIGHTING COIL OF F6AMH/F6MH, F8CMH/F8MH)

1 Battery

2 Fuse (10A)

3 Rectifier

4 Lighting coil

R: Red

G: Green

B: Black

8-24
