14 Effects
106 PM5D/PM5D-RH Owner’s Manual Operating section

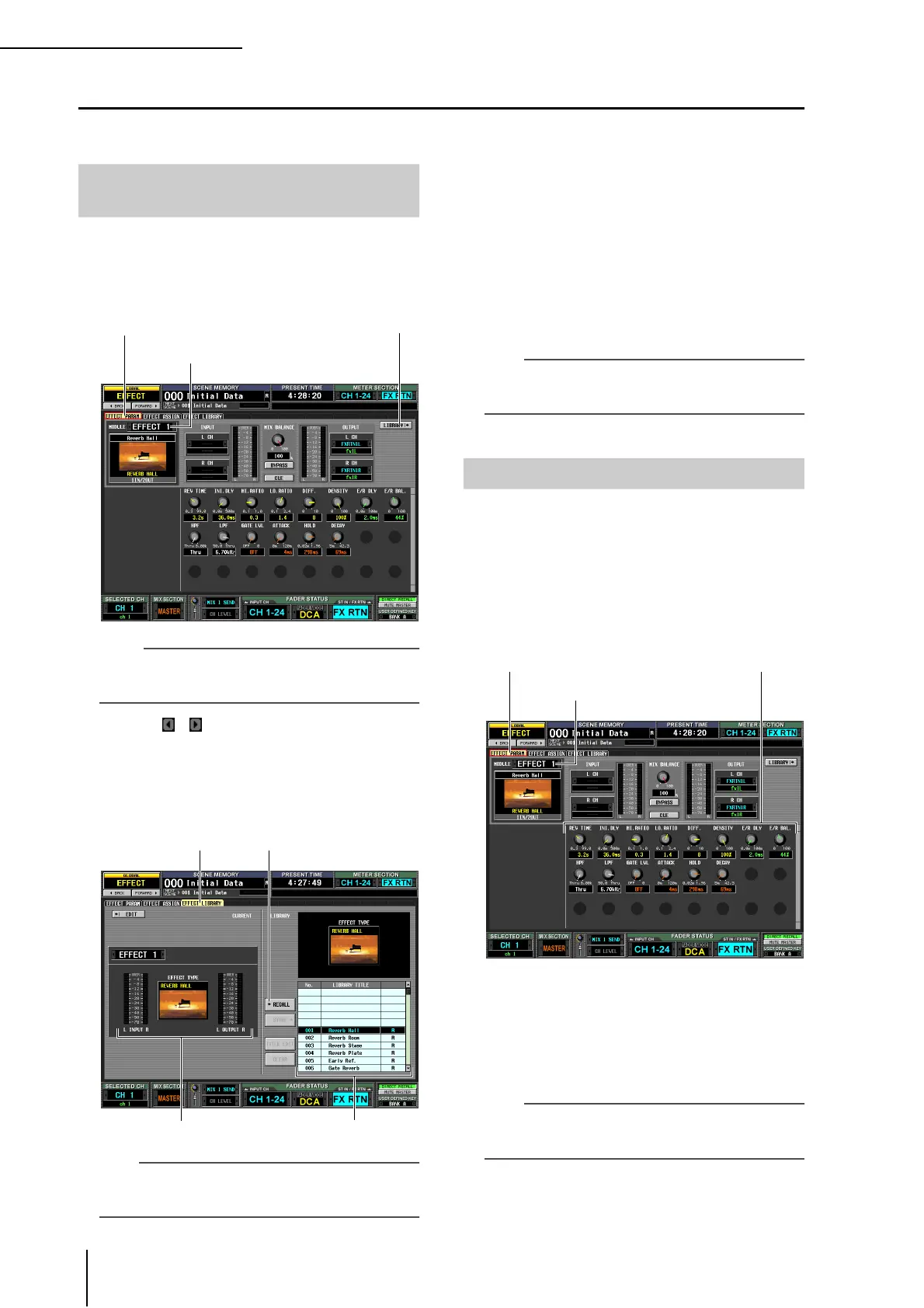

Basic operations in the effect screen
This section explains how to store or recall effect library data, and how to edit effect parameters.
Here’s how to recall existing settings from the effect library.
1
In the DISPLAY ACCESS section, repeatedly
press the [EFFECT] key to access the EFFECT
PARAM screen.
Note
You cannot change the currently selected effect type in the
EFFECT PARAM screen. To change the effect type, you must
recall (load) a library item that uses the desired effect type.
2
Click the / buttons at the left and right of
the box in the left side of the screen to select
the effect module you want to use, and then
click the LIBRARY button.
The EFFECT LIBRARY screen will appear, allowing
you to recall or store settings in the effect library.
Hint
You can also access this screen by repeatedly pressing the
[EFFECT] key. The effect module you are controlling can also
be selected in this screen.
3
In the library list at the right of the screen,
click to select the library item you want to
recall
When you click a library item in the library list, that
line will be highlighted and move to the center of the
list. The effect type of the currently selected library item
will be shown above the library list.
4
Click the RECALL button.
The selected library item will be loaded into the effect
module you chose.
Hint
You can click the EDIT button in the upper right of the screen
to access the EFFECT PARAM screen for the currently
selected effect.
Here’s how to edit the parameters of an internal effect.
1
In the DISPLAY ACCESS section, repeatedly
press the [EFFECT] key to access the EFFECT
PARAM screen.
The lower part of the screen will show knobs and but-
tons for editing the parameters of the currently selected
effect. The content of the parameters will depend on
the type of the currently selected effect.
2
Use the box in the upper left of the screen to
select the effect module you want to control.
3
Use the knobs and buttons in the lower part of
the screen to edit the effect parameters.
For details on the effect parameters, refer to the Appen-
dices at the end of this manual.
Hint
The parameter settings for internal effect modules 1–8 are
saved in the scene. The settings of individual effects can also
be stored in the effect library independently of scene memory.
Recalling settings from the effect
library
EFFECT PARAM
The effect module you are controlling
LIBRARY button
EFFECT LIBRARY RECALL button
Library listCurrent effect type
Editing the effect parameters
EFFECT PARAM
The effect module you are controlling
Effect parameters
To Next Page
