2 Top, front, and rear panels
16 PM5D/PM5D-RH Owner’s Manual Operating section

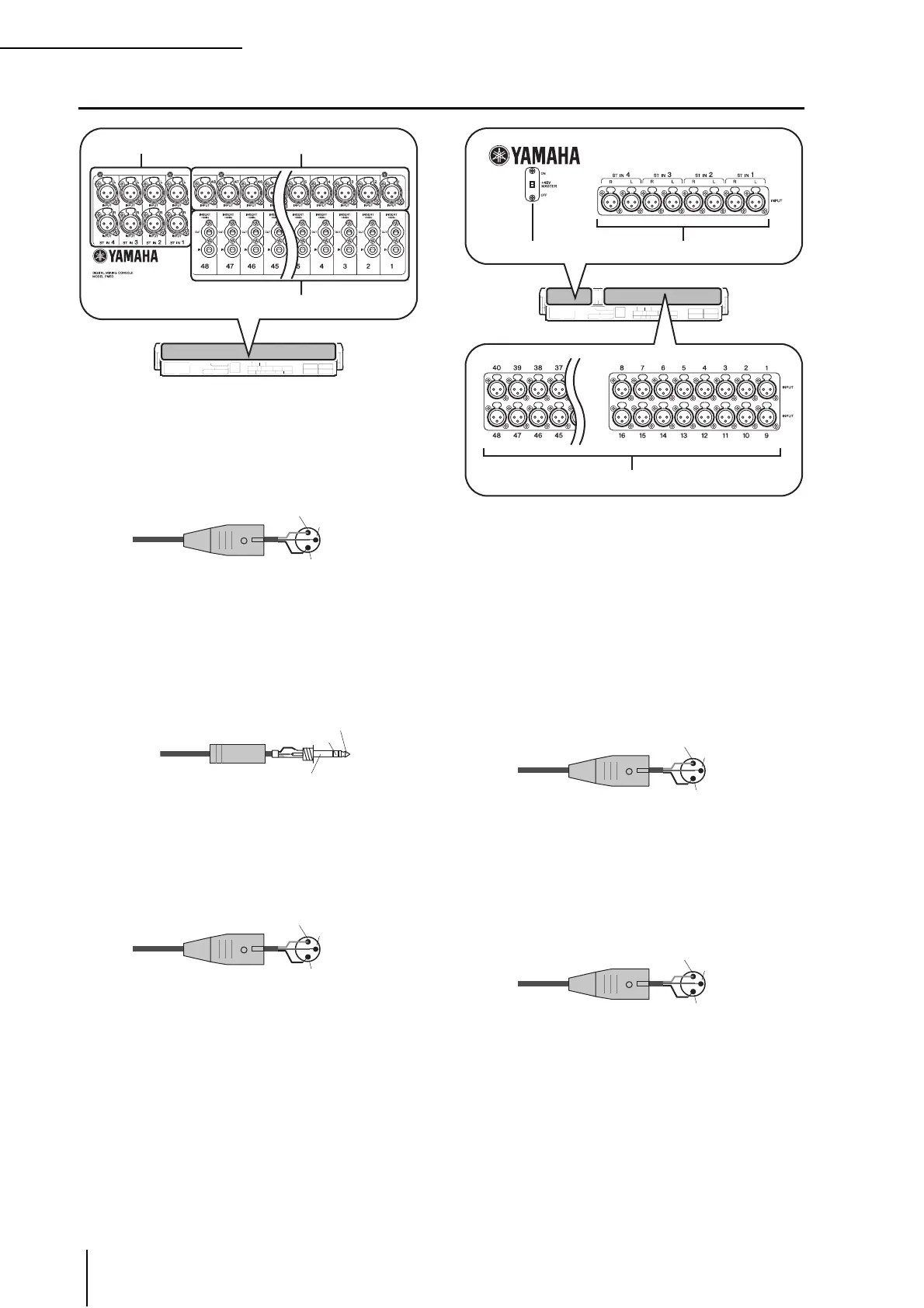

Rear panel
A INPUT jacks 1–48 (PM5D model)
These are balanced XLR-3-31 type input jacks for
inputting analog audio signals from line level devices
or microphones. Nominal input level is
–60 dBu to +10 dBu.
B INSERT IN/OUT jacks 1–48 (PM5D model
only)
These are balanced TRS phone type input/output jacks
for inserting external effects or dynamics processors
etc. into INPUT jacks 1–48. Nominal input/output
level is +4 dBu.
C ST IN (Stereo input) jacks 1–4 (PM5D
model)
These are balanced XLR-3-31 type input jacks for
inputting analog audio signals from line level devices.
Nominal input level is –34 dBu to +10 dBu.
D +48V MASTER switch (PM5D-RH model
only)
This is the master phantom power (+48V) switch for
INPUT jacks 1–48 and ST IN jacks 1–4. If this switch is
off, the +48V buttons shown in the display are
unavailable.
E INPUT jacks 1–48 (PM5D-RH model)
These are balanced XLR-3-31 type input jacks for
inputting analog audio signals from line level devices
or microphones. Nominal input level is
–62 dBu to +10 dBu.
F ST IN (Stereo input) jacks 1–4 (PM5D-RH
model)
These are balanced XLR-3-31 type input jacks for
inputting analog audio signals from line level devices
or microphones. Nominal input level is
–62 dBu to +10 dBu.
3 1
2
(PM5D model)
Male XLR plug
1 (ground)
2 (hot)
3 (cold)
1/4" TRS
phone plug
Tip (hot)
Ring (cold)
Sleeve (ground)
Male XLR plug
1 (ground)
2 (hot)
3 (cold)
46
5
(PM5D-RH model)
Male XLR plug
1 (ground)
2 (hot)
3 (cold)
Male XLR plug
1 (ground)
2 (hot)
3 (cold)
